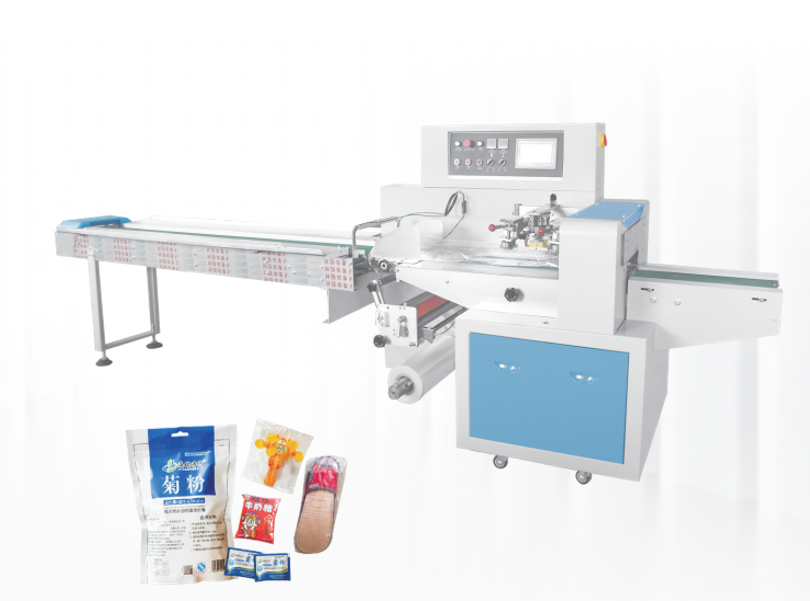

THREE SERVO INTELLIGENT PACKAGING MACHINE 800X

THREE SERVO INTELLIGENT PACKAGING MACHINE 800X

PRODUCT DETAILS

APPLCAITION

Suitable for food industry, pharmaceutical industry, toys and stationery, plastic products , industrial supplies , daily necessities ,   disposable products , hardware products , industrial parts , auto parts.

TECHNICAL PARAMETERS

Type ：800X

Film width：Max：780mm

Bag length：6000mm

Bag with：60 - 380mm

Product height：Max：130mm

Film roll diameter：Max：320mm

Packaging rate：20- 60bag/min

Packaging materials：OPP,OPP/CPP, KOP/CPP,ALU - FILM

Power：220V，50/60Hz，5KW

Machine size：(L)4255 ×(W) 1178 ×(H) 1450

Machine weight：600Kg

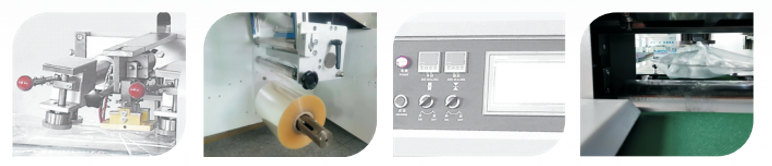

PERFORMANCE CHARACTERISTICS

-The bag length does not need to be set manually. It is automatically detected and set during the operation of the equipment.

-Three servo control , mechanical structure , easy maintenance , less wear and tear, long service life.

-Touch screen display, good man-machine interface , centralized and intuitive operation .

-The packaging speed and bag length are servo controlled , with stepless speed change , wide adjustment range , and can match     the previous process of the production line .

-High sensitivity electric eye can automatically and accurately track .

-Each sealing temperature is independently controlled , suitable for packaging of various materials , and the sealing is beautiful and firm .
