Luzhong metal ZX6350A drilling and milling machine with table automatic feed

Price:4174.00

Minimum order:0 Stock0

Total:
0
Brand:
Area:
SHANDONG
Delivery time:
From the date of payment by the buyerinternal delivery

Business card

  • Corporate nameShandong Luzhong Machine Tool Co., Ltd.
  • ContactsBruce Lee(Mr.)
  • Telephone
  • Mobile
  • AddressEast of Luban Avernue , Tengzhou, Zaozhuang, Shandong, China
Recommend

Z5032 Vertical drill

$1500.00/

Luzhong metal ZX6350

$4174.00/

Store information

Area:SHANDONG

Level:corporate memberThe1year

Authentication:

Paid:0.00 bond

My Medal: [archives]

Customer service:

Business card

【warm tips】please explain what you saw us atAfrican-MachineThank you
Product details
Model NO.:
ZX6350A
Certification:
GS, CE, RoHS, ISO 9001

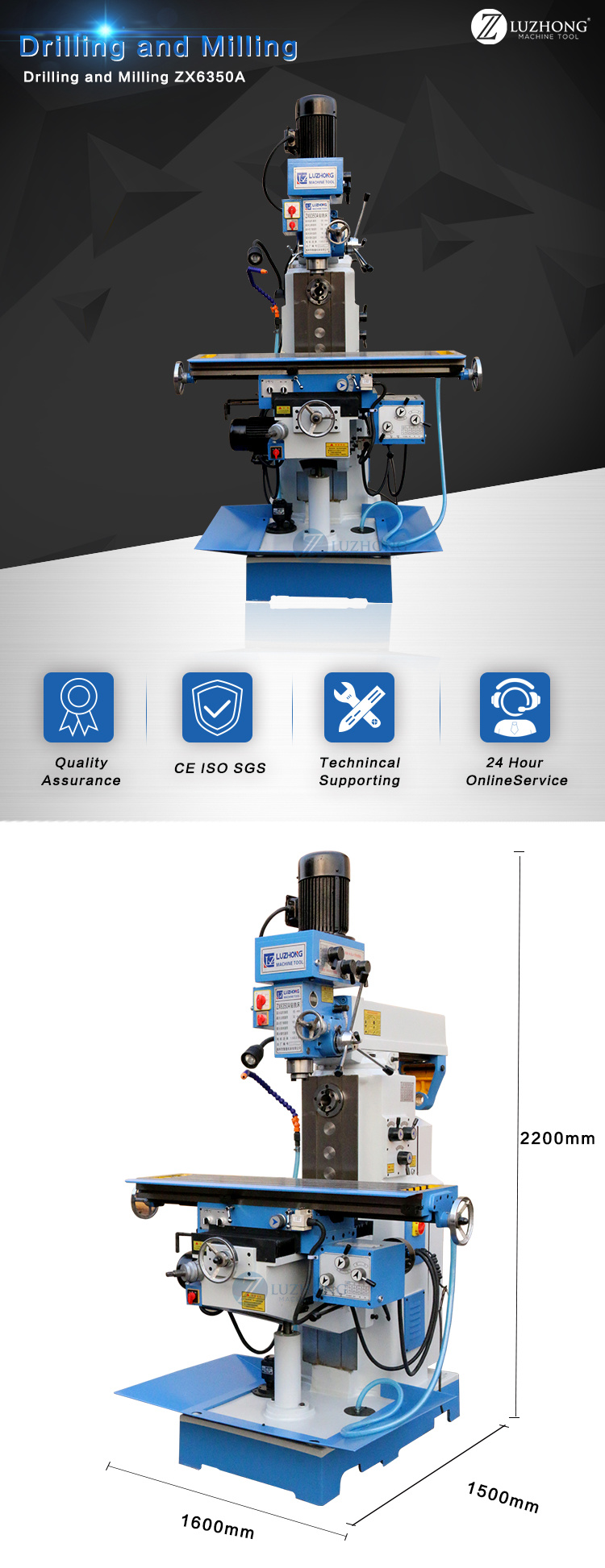

Luzhong metal ZX6350A drilling and milling machine with table automatic feed

ntent="" style="background-color:#c5e1b3;padding:0 10px;margin:0;line-height:36px;text-align:left;">Product Description


ntent="" style="background-color:#c5e1b3;padding:0 10px;margin:0;line-height:36px;text-align:left;">Product Parameters

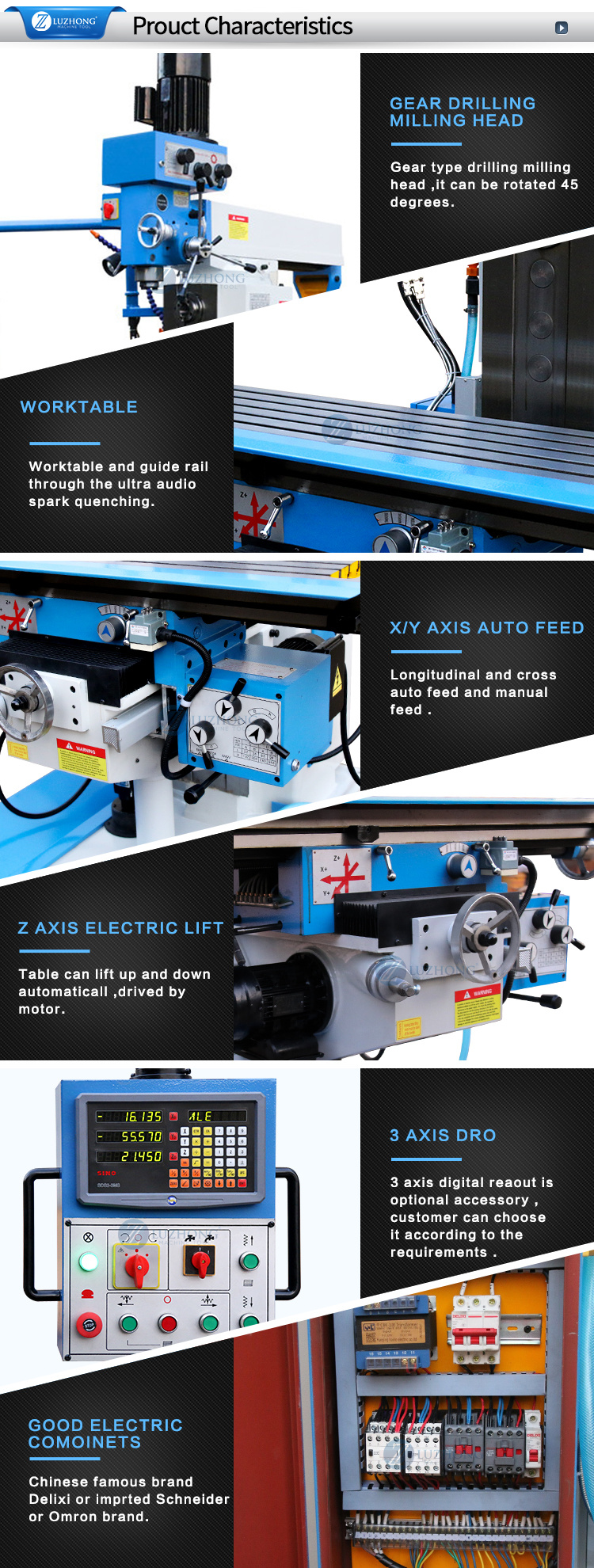

The main performance characteristics:
1.Gear transmission for vertical/horizontal milling head
2.X /Y/Z axis auto feed
3.Headstock swivel +/-45°
4.Guide way with sparking quenching
Product main technical parameters:

Specifications(mm)ZX6350A
Max. drilling dia.(mm)50
Max. end milling width(mm)100
Max. vertical milling dia.(mm)25
Max.boringdia.(mm)120
Max.tappingdia.(mm)M16
Distance from spindle nose to table surface(mm)80-460
SpindletaperMT4
Horizontal Spindle taperISO40
Spindle speed range(r.p.m)36-1526(V)40-1300(H)
Spindle travel(mm)120
Tablesize(mm)1200×280,Optional: 1500x280
Table travel(mm)600×280,Optional: 1000x280
Table feed speed(mm/min)X/Y:22-555,Z:300
Overall dimensions(mm)1500×1600×2200
Spindlemotor power (kw)1.5/2.2(V)3(H)
Machineweight(kg)1400/1500

ntent="" style="background-color:#c5e1b3;padding:0 10px;margin:0;line-height:36px;">Detailed Photos


ntent="" style="background-color:#c5e1b3;padding:0 10px;margin:0;line-height:36px;">Company Profile


ntent="" style="background-color:#c5e1b3;padding:0 10px;margin:0;line-height:36px;">FAQ


1:How can I choose the most suitable machines?
A: Please tell me your specifications ,wecan choose the best model for you ,or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A:We specialized in all kinds of machines,such asCNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine,RadialDrillingMachine ,SawingMachine,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A:Our factory is located inTengzhou City,Shandong Province,277500 China. You are warmly welcomed to visit us.

4.Whatisyourtradeterms?
A:FOB, CFR and CIF all acceptable.

5: What's the Payment Terms?
A :T/T ,30% initial payment when order ,70% balance payment before shipment;
Irrevocable LCat sight.

5: What's the MOQ?
A: 1 set .(only some low cost machines will be more than 1 set )
