The1year
- Model NO.：
- XTPK-10
- Certification：
Working Process of packing machine:
1. Switch on power, in default state, the discharge door will close firstly, after removing the tare, it will start the filling apparatus to fill material.
2. The material goes into measuring hopper continuously. The force load cell will convert the weight of material to corresponding electricity signal, and send this signal to controller. The weight of material will be shown on the window panel of controller. The controller will also output the control signal of each part in turn according to the set parameters, to feed the measuring hopper continuously at the fast, medium and slow speed, which can finish the quantitative feeding accurately.
3. When filling process is over, feeding apparatus will close and discharge door beneath the measuring hopper will open, material will fall into the bag by itself gravity through bag-clamping apparatus. When finishing discharging, the discharge will door close, bag-clamping apparatus will open to unloading bag automatically, one work cycle end, the controller goes into next work cycle automatically. Bag-clamping stroke switch can control action (open or close) of bag-clamping apparatus in order to do manual bagging work. only the bag-clamping apparatus is in close state can the controller send out filling signal.
Features of packing machine:

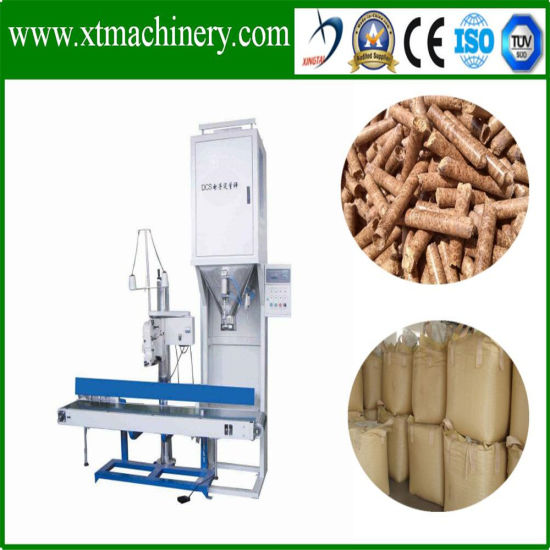

1.Wood Pellet packing machine is integrated by packing machine and sealer. The integrated type is
Very flexible. Which type sealer will be organized in packing machine mainly depends on bags
Materials., for example we will install heat sealer if bags materials are made from plastic, if
Nylon or paper bags, cloth bags, then install sew sealer.
2. Wood Pellet packing machine can measure weight and close bags automatically, when adjust weight
Into one stable number for example 30kg/bag, bags will fall down to bottom conveyor automatically
When reaches 30kg, then bags will convey to sealer. Then sealer will seal bags automatically and
Print production date. The pellet feeding to bags speed also can be adjusted.
| Model | Capacity(kg/bag) | Power(kw) | Packing capacity(bag/h) | Quantitative bucket | Remarks |
XTPK-10 | 2-10 | 0.5Kw | 150-250 | 1 | Auto Weight Thermal Sealing |
XTPK-35 | 5-20 | 1.0Kw | 200-300 | 1 | |
XTPK-50 | 20-50 | 1.5Kw | 300-400 | 2 |
XT Machinery, Works For You!
