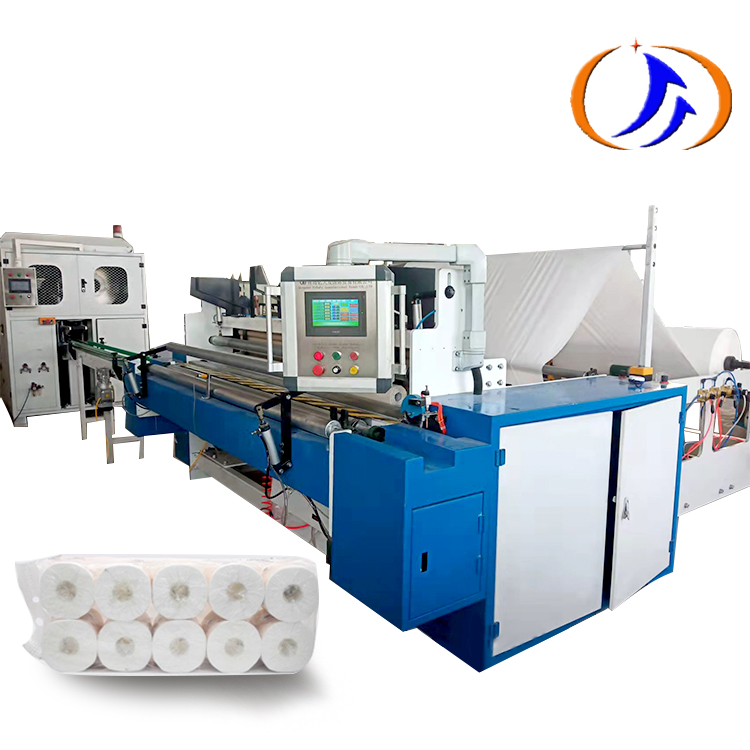

1.Fully automatic tissue paper making machine

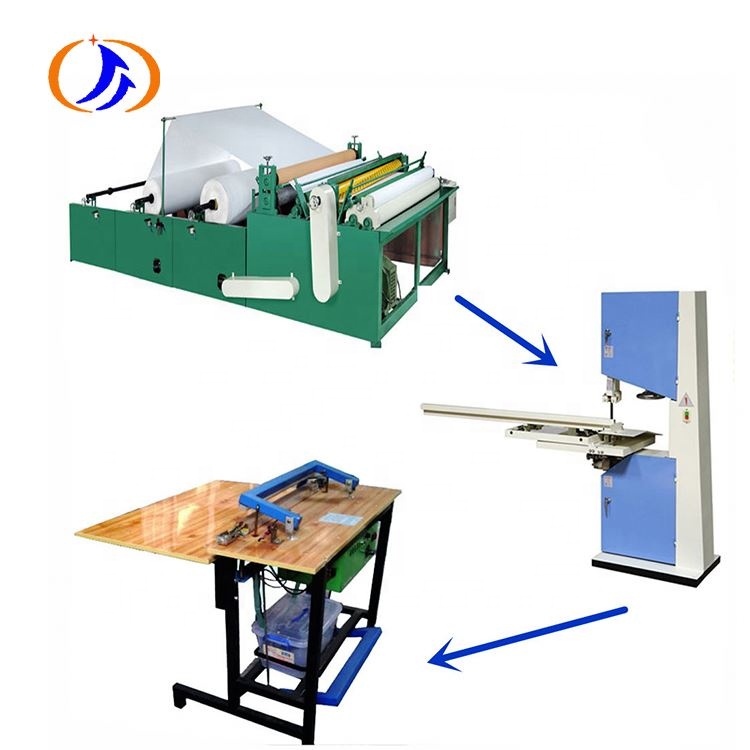

2.Semiautomatic tissue paper making machine

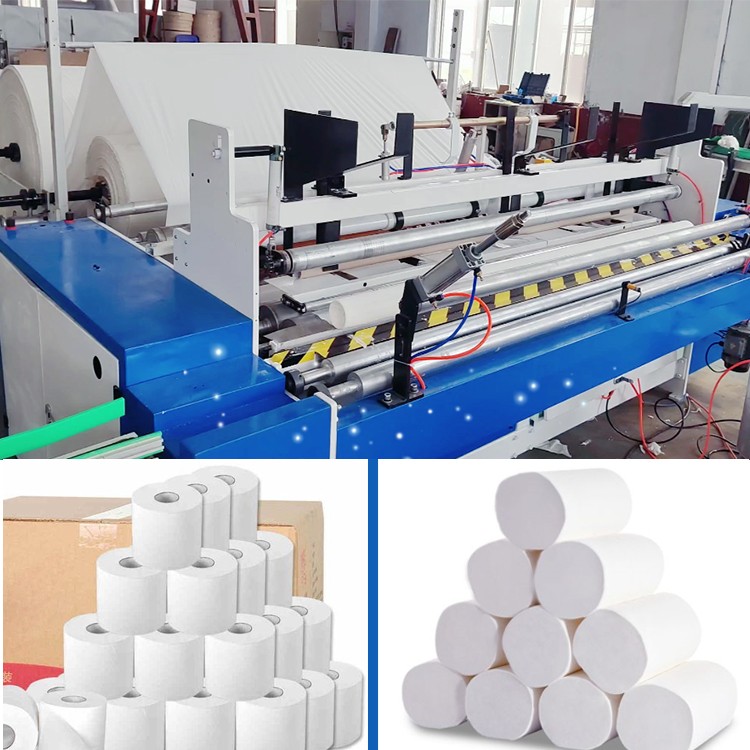

| Specification of Toilet Paper Roll Rewinding Machine | |||||||
Model | 1092 | 1575 | 1880 | 2400 | 2600 | 3150 | 3500 |
Width of raw paper (mm) | 1200 | 1800 | 2100 | 2400 | 2500 | 3000 | 3500 |
Dia. of finished paper | 60-150mm(tightness adjustable) | ||||||
Dia. of finished paper core | 32-50mm | ||||||
Dia.of raw material | 1100mm(other sizes are available) | ||||||
Dia of core of raw material | 76.2mm(other sizes are available) | ||||||
Perforation pitch | 4 perforating blade 90-160mm; 2 perforating blade 180-320mm | ||||||
Reeling speed | 150-200m/min | ||||||
Parameter setting | PLC screen operation system | ||||||
Unwinding unit | 1-3 layers15-30gsm | ||||||
Pneumatic system | 3HP air compressor,Min.Pressure 5kg/cm² Pa (provided by customers) | ||||||
Power | 5.5-15kw | ||||||
Overall Dimension(L*W*H) | 6200*2600*1800-6200*4000*1800mm | ||||||
Weight | 3800-9000kg | ||||||
Embossing | Single ply embossing, two side embossing and steel to steel embossing(depend on selection) | ||||||
Embossing bottom roller | Felt roller, wool roller and rubber roller (depend on selection) | ||||||
Unwinding unit | 1-3 ply | ||||||
Unwinding unit driving | Gear box driving | ||||||
Edge embossing unit | Steel to steel | ||||||

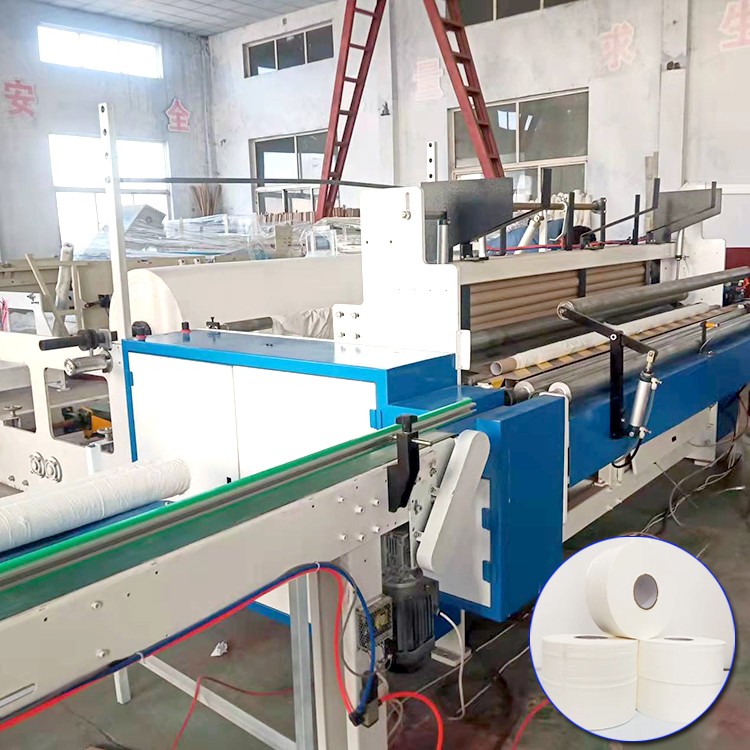

Poduction show
