- Product name：
- Automatic Horizontal Packing
- Capacity：
- 20000-110000PCS
- Voltage：
- 380V/220V 50Hz

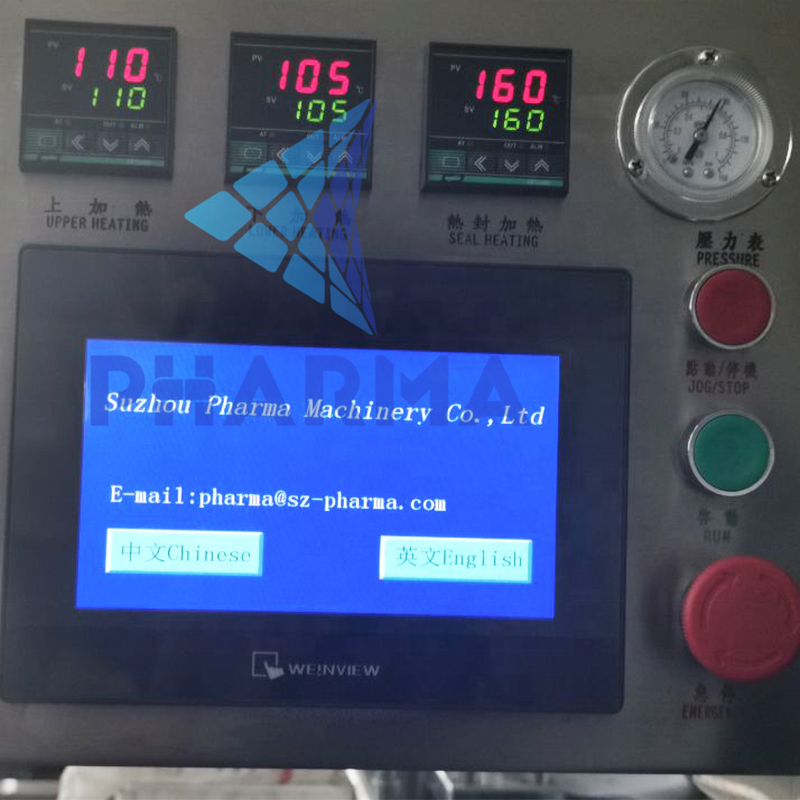

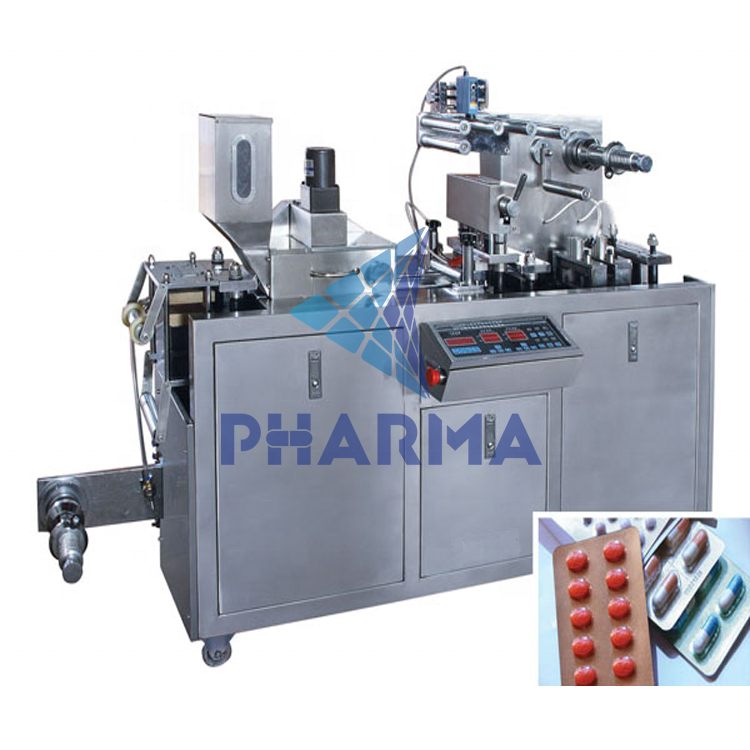

The blister packing machine include our newest design, adopting PLC, frequency converter, and man-machine interface. It is an ideal blister packing machine for aluminum-aluminum, aluminum-plastic, paper-plastic packing. The finished blister sheets are even and smooth through the machine, comply with GMP standard, and each machine has certification and test report. The machine adopts programming control, frequency conversion speed regulation, and touch panel operation. The processes of feeding, forming, heat sealing, indentation, batch numbering, and punching are all continuously and automatically completed, with convenient operation and complete functions. It suitable for candy, food, liquid, syringe as well as irregular shape Al-Al, Al-plastic or paper-plastic packing in healthcare, food, cosmetics, other equipment industry etc. We also can custom according to customer's needs.
Type | DPP 260 |
Max. Production Capacity(pcs/h) | Al-Al≤110000 |
Al-plastic ≤230000 | |
Max. Forming Area and Depth(mm) | Al-Al 240x150x5 |
Al-plastic 240x150x26 | |
Travel Range(mm) | 40-60(Can be manufactured as user’s requirements) |
Standard Plate(mm) | 80x57(Can be manufactured as user’s requirements) |
Total power | 380V/220V 50Hz 6.2kw |
Air pressure (Mpa) | 0.4-0.6 |
PVC sheet (mm) | 0.15-0.5x250 |
PTP Aluminum Foil (mm) | 0.02-0.035x250 |
Dialysis Paper (mm) | 50-100x250 |
Overall dimension (mm) | 3000x730x1600 (L*W*H) |
Weight (kg) | 1600 |
Specification
