- YSP：
- YSP40PV
- YSP：
- YSP65QV
- YSP：
- YSP100RV
Type SP/SPR is Sump Pump designed for delivering abrasive, large particle and high density slurries.They have no need of any shaft seal and sealing water. Well operated for insufficient suction duties. Wet parts of type SP pump are made of abrasion resistant hard alloy. All parts of type SPR pump immersed in liquid are lined with special rubber material, which is suitable for non-edge angle abrasive slurries. The depth below the liquid surface of the pumps can be customized.

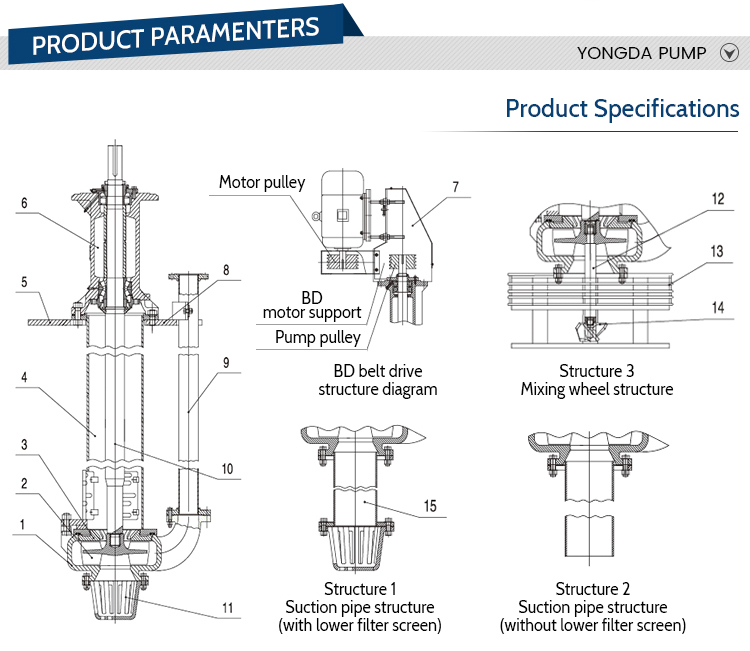

Product Paramenters
Number | Name | Number | Name | Number | Name |
1 | volute | 7 | Motor mount | 13 | Stir filter |
2 | impeller | 8 | right support plate | 14 | agitator wheel |
3 | Rearguard | 9 | outlet pipe | 15 | down straw |
4 | bracket | 10 | pump shaft |
|
|
5 | left support plate | 11 | lower filter |
|
|
6 | bearing body | 12 | Agitator shaft |
|
|
Customer Photos
Necessary Parameter For Choose Model
Please copy the following format to explain your needs, I will provide you with a more suitable quotation:
Flow: __m3/h (How many cubic meters of liquid are delivered per hour)
Head: __M (The height at which the pump can lift liquid)
Industrial voltage and frequency at the projectsite:_ V/__ hz
SG.: ___(Slurry Specific Gravity )
