The1year

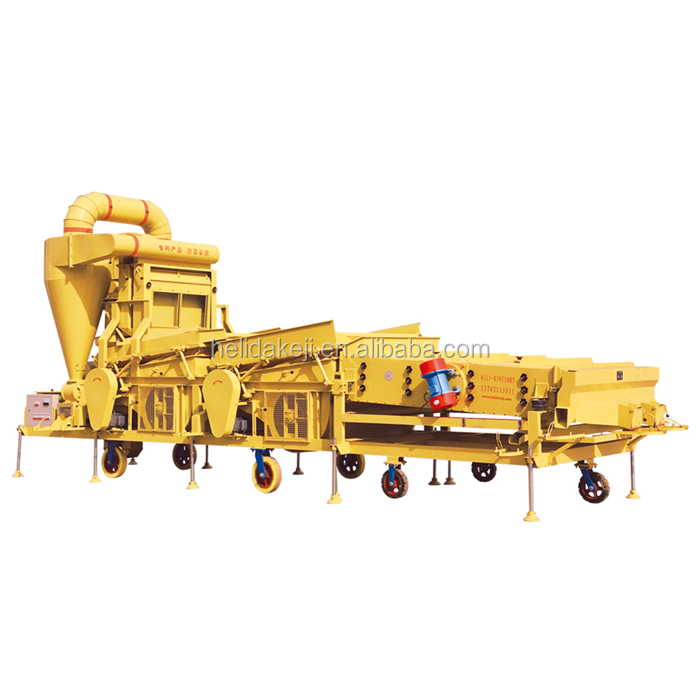

grain seed cleaner and grader
- Capacity：
- 15 ton/h
- weight：
- 3200kg
- sieve size：
- 1580*1700
1. Working priciple
Product Description
2.
Structure:
base frame,
bucket elevator,
Grain distribution container,

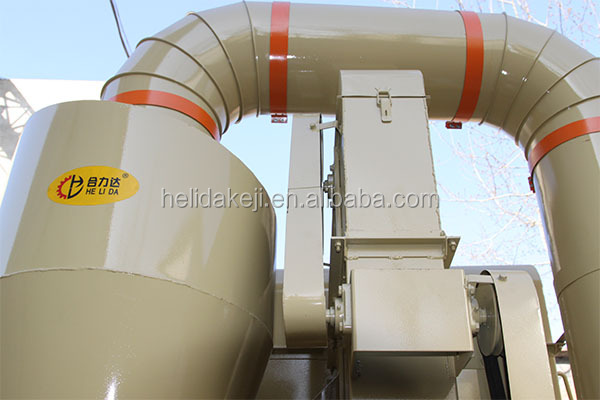

dust catcher,
vertical air screen,
gravity table
vibration grader

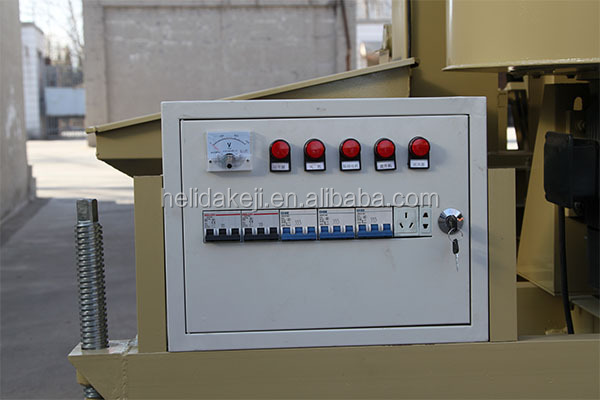

control cabinet.
3.
Function:
1) Remove dust and light impurities;
2) Separate and remove bad vegetable seeds,ex,blighted seeds,smut seeds,moldy seeds etc
3) Remove stone in the seeds
3) Grain and seeds grader.

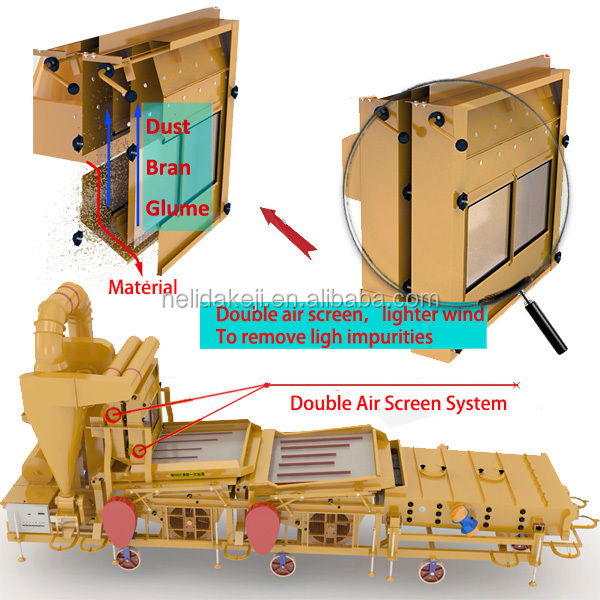

Dust and light impurities are removed by aspiration fan. vegetable seeds,rice seeds,wheat seeds etc grain then falls on gravity table to remove blighted seeds and large impurites ,then falls on sieve layers and was separated by sieves according to width and thickness difference.All the oversize and undersize impurities were discharged from outlets.
4.
Feature:
Compact structure,Easy operation
Movable model suitable for plant,field and remote area working;
High efficiency and capacity;
Customized sieve layers No.and sieve size for different grain and seeds.
5.
More machine instuctions:
Seed cleaner and grader becomes basic and most favourate cleaning machine in seed and grain agricultural processing line.With high efficiency , easy operation,wide application,it is suitable for processing and cleaning all kinds of grains,seeds,cereals and crops,such as wheat,paddy,rice ,maize,sorghum,pepper,coffee bean peeling,soybean,cocoa bean,oil seeds,sesame,green mung beans,peas,peanuts,millet,cumin etc.
Customized sieve layer amount and various machine combinations allow the seed cleaner and grader machine to be used for a wide range of applications and increasing grading efficiency.
6.
Parameter
high precision seed cleaner machine with grader for plant processing
Model | Productivity kg/h | Power kw | Weight kg | Dimesion mm | Sieve size | Remarks |
5xfz-15s | 10-15t/h | 27.5 | 3000 | 6700*2440*3200 | 2400*1500 | Environment -friendly |
7.

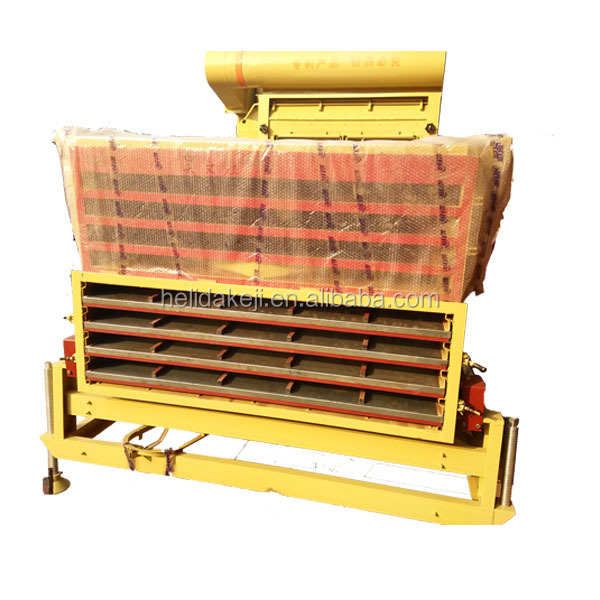

Packaging & Shipping
packing and shipping
8.

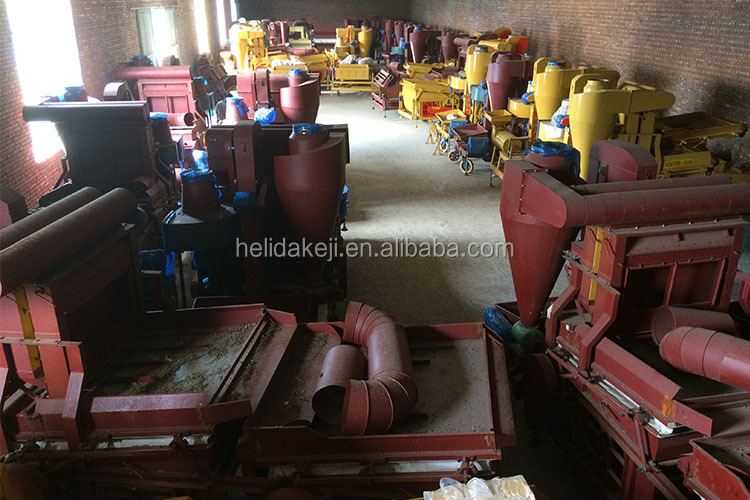

Company Information
Hebei HELIDA Grain Selecting Machinery Technology Co.,Ltd is a professional enterprise which engages in professional research,development and produce seeds processing machines,grain cleaning machines and agricultual byproducts processing machines. ”Service,Innovation,Professional, rigorous”is our operation principle,we’ve built a rigorous and professinal team which has technical branch who takes senior engineer as core,effective sale team and skillful production team,all of them have rich experience that is the backbone of this industry.
All of our products,such as seed machine,cleaning machine,sort machine,gravity separator,gravity destoner,seed coating machine,beans polisher machine,sunflower seeds separating machine and whole set of seeds processing and agricultural byproducts processing machines have test by the advanced international examination equipment,they have stable quality,perfect performs and advanced technic. All of us pursue the faith of “quality comes first,and service goes in advance”,we’ll supply a coordinated process service to satisfy our customer.We’ll keep promoting our professional skill,study and absorb the advanced international technics,for contribute to the agricultural machinery industry.
Our company has set up propaganda department,sales department and after-sale service department,we’ll supply the best function and quality products to you with our enthusiatic service.
We are sincerely welcome the old and new friend of all kind of industries to discussion,guide and visit our company!
Warranty
Warranty:
Whole cleaning machine Adopts three guarantees (for repair, replacement or compensation of faulty products) within one years
Main parts three guarantees within one years
Quick wear part three guarantees three month
