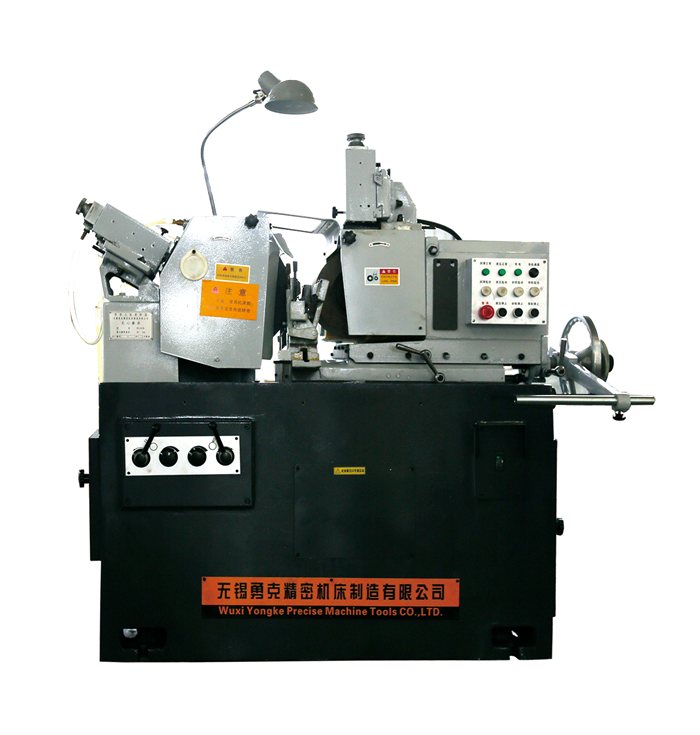

M1040B Centerless grinder

Main Features of M1040B Centerless Grinder

1. M1040B Centerless Grinder Bed

◆Using high-quality castings for normalized heat treatment and natural aging treatment to stabilize the internal structure and ensure firmness, wear resistance and no deformation during use.

2. M1040B centerless grinding machine sand and guide wheel device

◆The machine tool adopts the fixed grinding wheel frame and the movable layout of the guide wheel frame.

◆The grinding wheel is a cantilever structure, and the main shaft of the grinding wheel adopts a multi-piece long-bearing dynamic pressure oil film bearing.

◆The guide wheel is a cantilever structure, and the main shaft of the guide wheel adopts an integral 1:30 cone sliding bearing.

3. Feeding device

◆The feed guide of the guide roller frame adopts dovetail needle roller guide, and the feed uses a differential screw.

4.M1040B Centerless Grinder Dressing Device

◆The reciprocation of sand and guide wheel dresser adopts hydraulic transmission and stepless speed regulation.

5. M1040B centerless grinder electrical control device

◆The speed regulation of the guide wheel adopts AC frequency conversion speed regulation.
