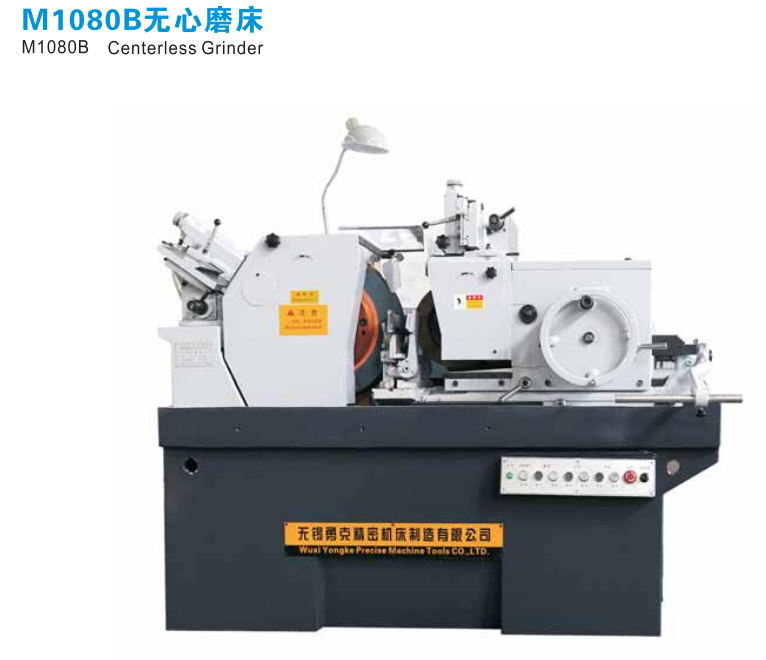

M1080B Centerless Grinder

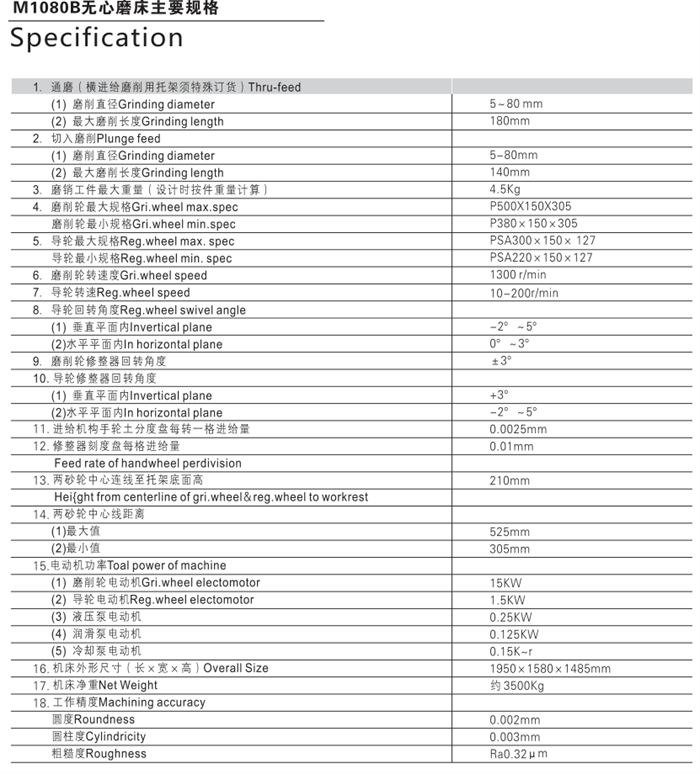

M1080B Centerless Grinder Parameters and Specifications: Through Grinding φ5-φ80mm Plunge Grinding φ5-φ80mm Grinding Length

Through grinding 180mm Plunge grinding 140mm Grinding wheel specification PSA500×150×305mm

Guide wheel specification PSA300×150×127mm Grinding wheel speed 1300r/m

Idler speed When machining workpieces 13, 16, 22, 29, 40, 53, 73, 94

When dressing the guide wheel 300r/min increase the rotation angle of the wheel In the vertical plane -20°~+50° In the horizontal plane 0°~-+3°

The feed amount per grid of the handwheel is 0.005mm The feed amount per grid of the dresser is 0.01mm

The distance from the center of the grinding wheel to the bottom of the bracket is 210mm

Total machine power 17kw Machine tool power supply 3N-50Hz 380V

Overall dimensions of machine tool (L×W×H) 1940×1670×1500 Machine weight 3650kg
