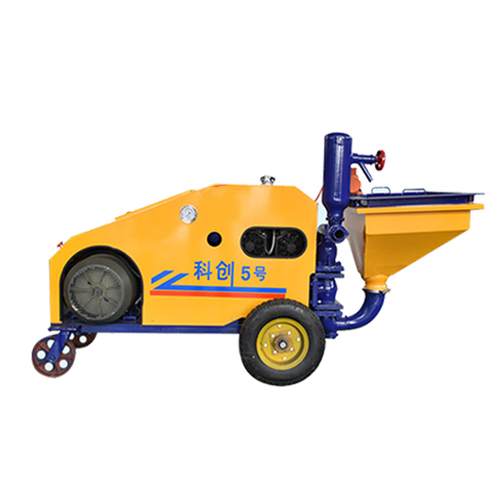

Double-cylinder four-speed plunger mortar spraying machine can vertically transport 40 meters and spray 1200 meters a day, which can be remotely controlled
Summary: 1. KYD-6 is a two-cylinder four-speed mortar spraying machine.
2. This machine has four speeds, which can be adjusted according to the actual situation.
3. It can spray 1200 square meters a day.
4. The vertical conveying distance can reach 40 meters.
5. It is equipped with remote control, which can realize remote control
Main technical parameters | high speed1 | high speed2 | low speed1 | low speed2 |
Maximum conveying capacity | 6m³/h | 4m³/h | 3m³/h | 2m³/h |
Horizontal conveying distance | 300m | 200m | 200m | 200m |
Vertical conveying distance | 100m | 50m | 50m | 50m |
Maximum mortar ratio | 1:3 | |||
Air compressor displacement | 0.36m³/h | |||
Air compressor power | 3kw | |||
Operating Weight | 500kg | |||
Overall dimension | 2000mm×850mm×950mm | |||
Main engine power | 11kw | |||

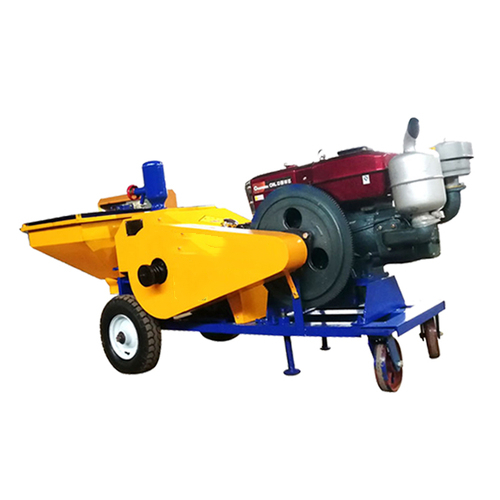

Double-cylinder plunger type mortar spraying integrated machine (diesel power)
Summary: This machine is a two-cylinder four-speed plunger mortar spraying equipment developed by our company based on years of experience and some advanced foreign technologies. It has a longer service life and faster speed than the various screw and extrusion spraying equipment used in the current market. It is applicable to the spraying and transportation of dry-mixed mortar, thermal insulation mortar, masonry mortar reinforcement mortar, reinforcement mortar, self-leveling mortar
| technical parameter | |
| working pressure | 8map |
| Theoretical conveying capacity | 6m³/h |
| Horizontal conveying distance | 100m |
| Vertical conveying distance | 40m |
| Main engine power | 18hp |
| Operating Weight | 656kg |
| Overall dimension | 2590*980*1230 |

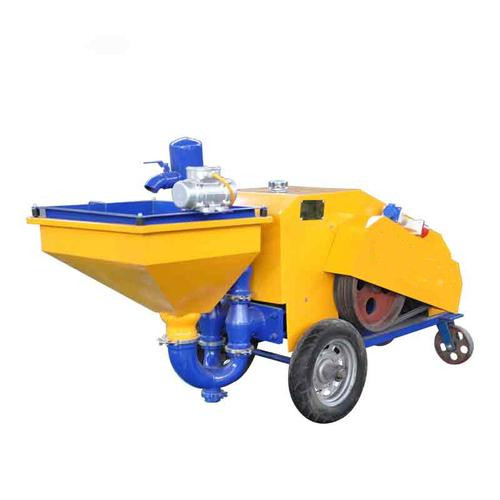

Double-cylinder plunger mortar spraying integrated machine (electric)
Summary: This machine is a dual-cylinder four-speed plunger mortar spraying equipment developed by our company based on years of experience and some advanced foreign technologies. This machine uses a dual-cylinder four-speed variable pressure control protection mechanism to achieve remote control and is suitable for use in various narrow environments.
Main technical parameters | high speed1 | high speed2 | low speed1 | low speed2 |
Maximum conveying capacity | 200m³/h | 150m³/h | 120m³/h | 100m³/h |
Horizontal conveying distance | 100m | 100m | 80m | 80m |
Vertical conveying distance | 50m | 50m | 30m | 30m |
Maximum mortar ratio | 1:3 | |||
Air compressor displacement | 0.36m³/h | |||
Air compressor power | 3kw | |||
Operating Weight | 500kg | |||
Overall dimension | 2000mm×850mm×950mm | |||
Main engine power | 11kw | |||
