The1year
- Model NO.：
- HN-M1H10
- Certification：
Themajorperformanceandstructuralfeatures:
1:Advanceddesignforcompletemachine,reasonablestructure,convenientadjustingoperationandmaintenance;
2:standardpositioningwithservofilmtransportingsystem;stablefortransportingfilmwithtwo synchronousbelts;
3:highautomatizationwithautocorrectionfunction;*minimizetheconsumptionwithmultiplekinds ofautowarningprotectionfunction
4:supportedbymetricdevice,themachinecanautomaticallycompleteallpackingprocessesfrom measuring,feeding,filling.
Rangeofconfiguration:
Themachinecanbesupportedbyautoweighingmachine,meterglassdosingmachine,manualbatchconveyorandspiraldosingmachine.Ithasanextensiverangeofpackage,suitableforpackingofeachkindofitemsuchasgrains,
blocks,barsandpowder,etc

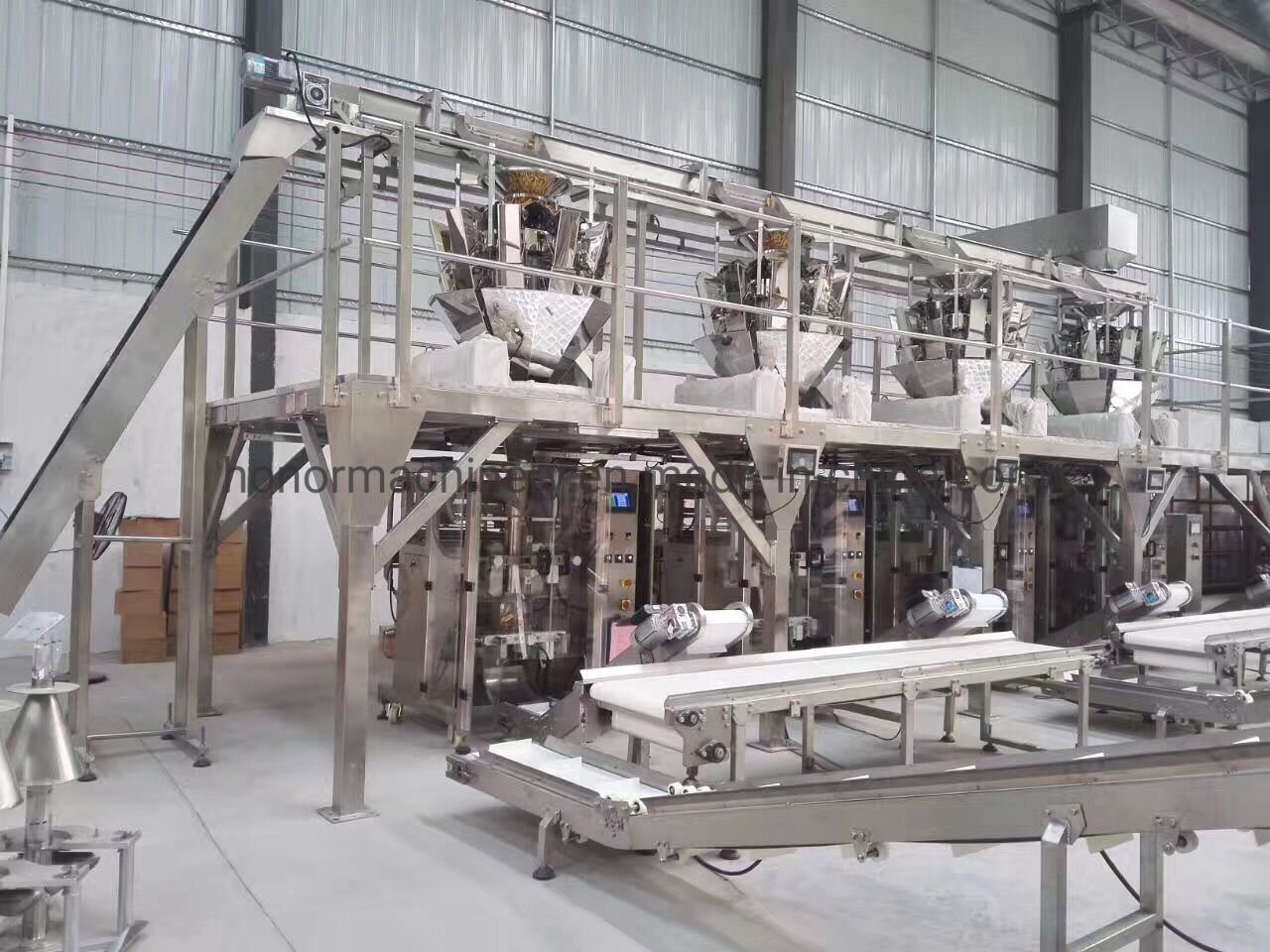

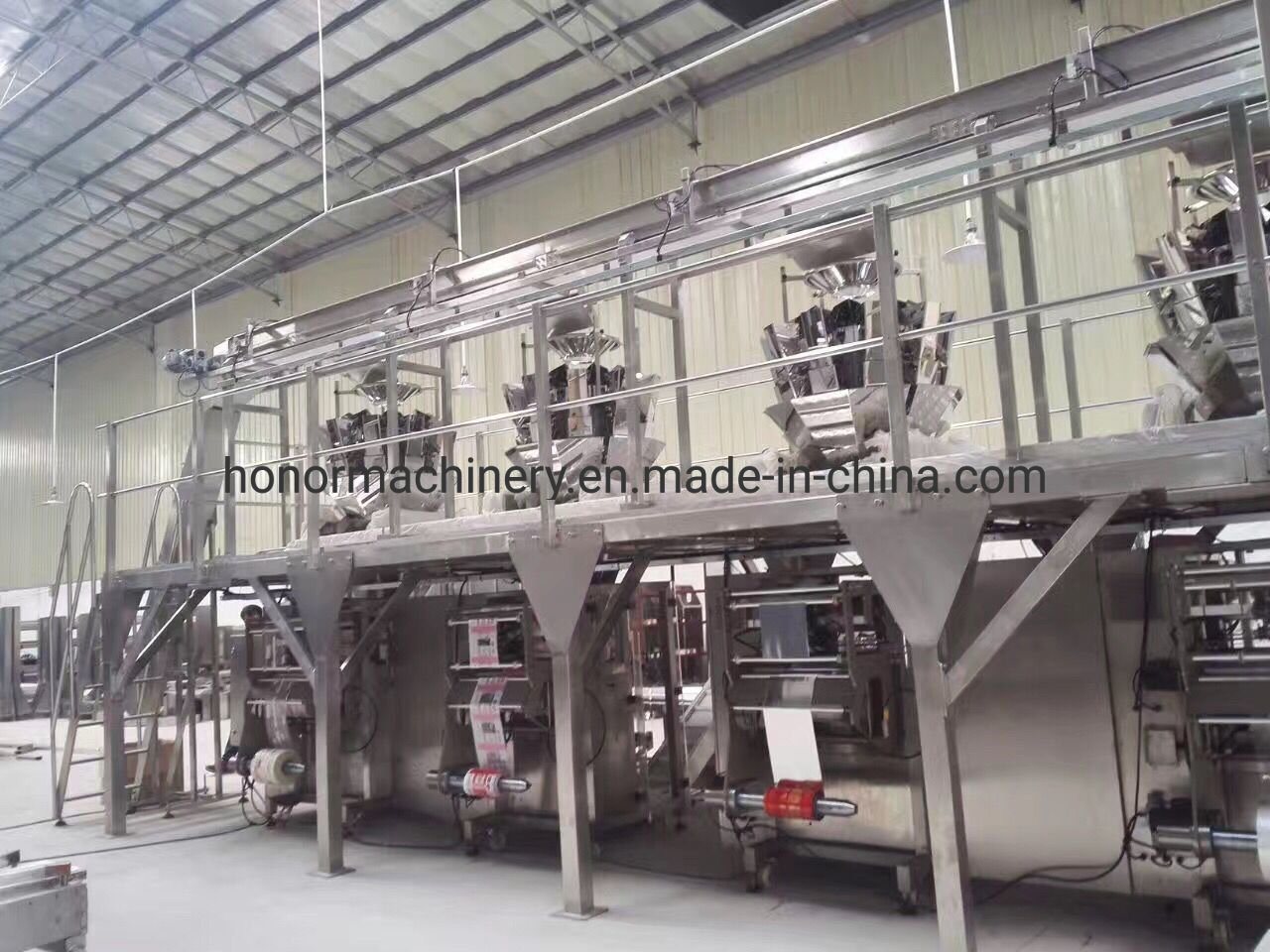

Thewholepackingsystemtechnicalspecification:
Product name | CE/IOS9001 made in China rice noodle/snack food/beanpacking system |
Item | Content |
Capacity | 80 bag/min,itisaccordingtoqualityofwrappingandsupplies |
Accuracy | ≤±1.5% |
Bagsize | (L)50-300mm(W)90-200mm |
Filmwidth | 420mm |
Bagtype | pillow bag, gusset bag |
Main machine weight | 700KG |
Filmthickness | 0.04-0.09mm |
Packagematerial | BOPP/CPP,BOOP/VMCPP,BOOP/PE, PET/VMPET/PE,PET/PE,etc |
Airconsumption | 0.8Mpa0.5m³/min |
Totalpowder | 2.2KW |
Voltage | Fourwirethreephase380V50/60HZ |
Aircompressor | Notlessthan1CBM |
Totalheight | 3.8m |
Packing Machine
Technicalparameter:
| Items | Content |
| Capacity | 80 bag/min |
| Bag size | (L)50-300mm (W)90-200mm |
| Bag type | Pillow bag/gusseet bag |
| Max packaging film width | 420mm |
| Thickness of film | 0.04-0.09mm |
| Air consumption | 0.8Mpa 0.3m³/min |
| Main power/voltage | 5.6KW/380V 50/60HZ |
| Dimension | L1900*W1180*H1550mm |
| The weight of switchboard | 700kg |
Techniacal advantages:
1:Load cell infeed detection, more compatible for harsh working environment (dusty).
2:Automatic frequency control function to improve the passing rate.
3:Idependently adjustable amplitude, more user friendly.
4:Staggered dumping mechanism to prevent material blockage.
5: Muti-language operating interface.* Mouse, USB and SD card compatible 10" touch screen.
6:High grade (IP65) waterproof and dustproof design, more durable in wet and dusty working environment.
7:Instant disply of the weight inside each hopper.

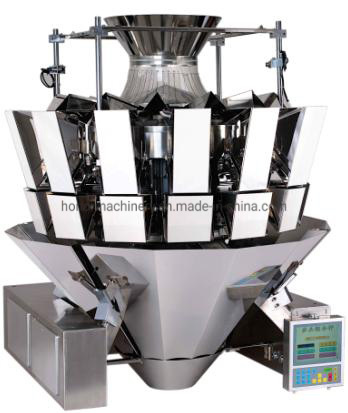

Heads Multiweigher

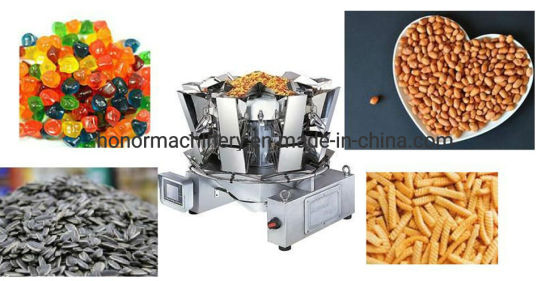

Application:
It is suitable for high speed weighing of granule, slice, roll or irregular shape products such ai candy, seed, jelly, fries, coffee bean, peanut, puffy food, biscuit, chocolate, nut, yogurt, pet food & frozen foods, etc. It is also suitable for weighing small metal and plastic parts.
Specifications:
| Item | Contents |
| Model | MD14 |
| Measuring range | 10-2500g |
| Accurancy | 0.5-2000g |
| Max speed | 80 bags/min |
| Hopper volume | 1.6L |
| Hoppers | 14 |
| Touch screen | 10 inch |
| Driving syestem | stepper motor |
| Material | 304# S/S 304# |
| Voltage | 110/220V,50/60 HZ |
| Power | 2.0KW |
| Weight | 689KG |
Z Type Conveyor
Features:
Theconveyerisapplicableforverticalliftingofgrainmaterialindepartmentssuchascorn,food,fodderandchemicalindustry,etc.Fortheliftingmachine,thehopperisdrivenbythechainstolift.It'susedforverticalfeedingofgrainorsmallblockmaterial.Ithasadvantagesoflargeliftingquantityandhighness.
Specification:
| The highness of lifting | 4.2m |
| Speed of lifting | 0-17m/minute |
| Lifting quantity | 5.5CBM/hour |
| Power | 750W |
| Voltage | 380V |
specificationcustomized;material:carbonsteelplastic-sprayorstainlesssteel;thepartcontactingwithfoodisfoodgradeplastic.
Platform
Feature:
Thesupportingplatformissolidwillnotaffectthemeasurementaccuracyofthecombination weigher.Inaddition,thetableboardistousethedimpleplate,itismoresecure,anditcan avoid slipping.
Specification:
Thesizeofthesupportingplatformisaccordingtothetypeofthemachines.

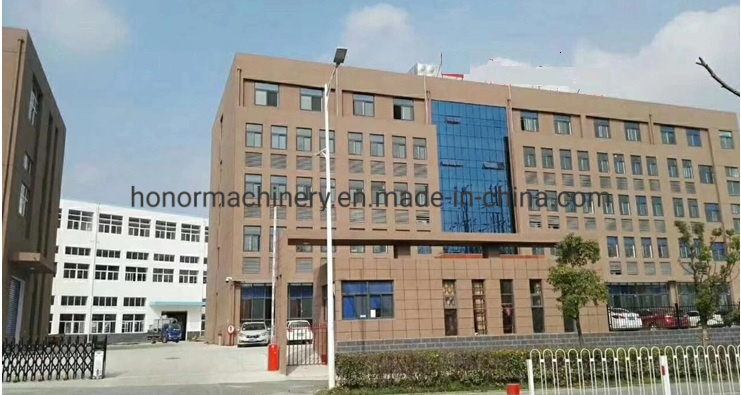

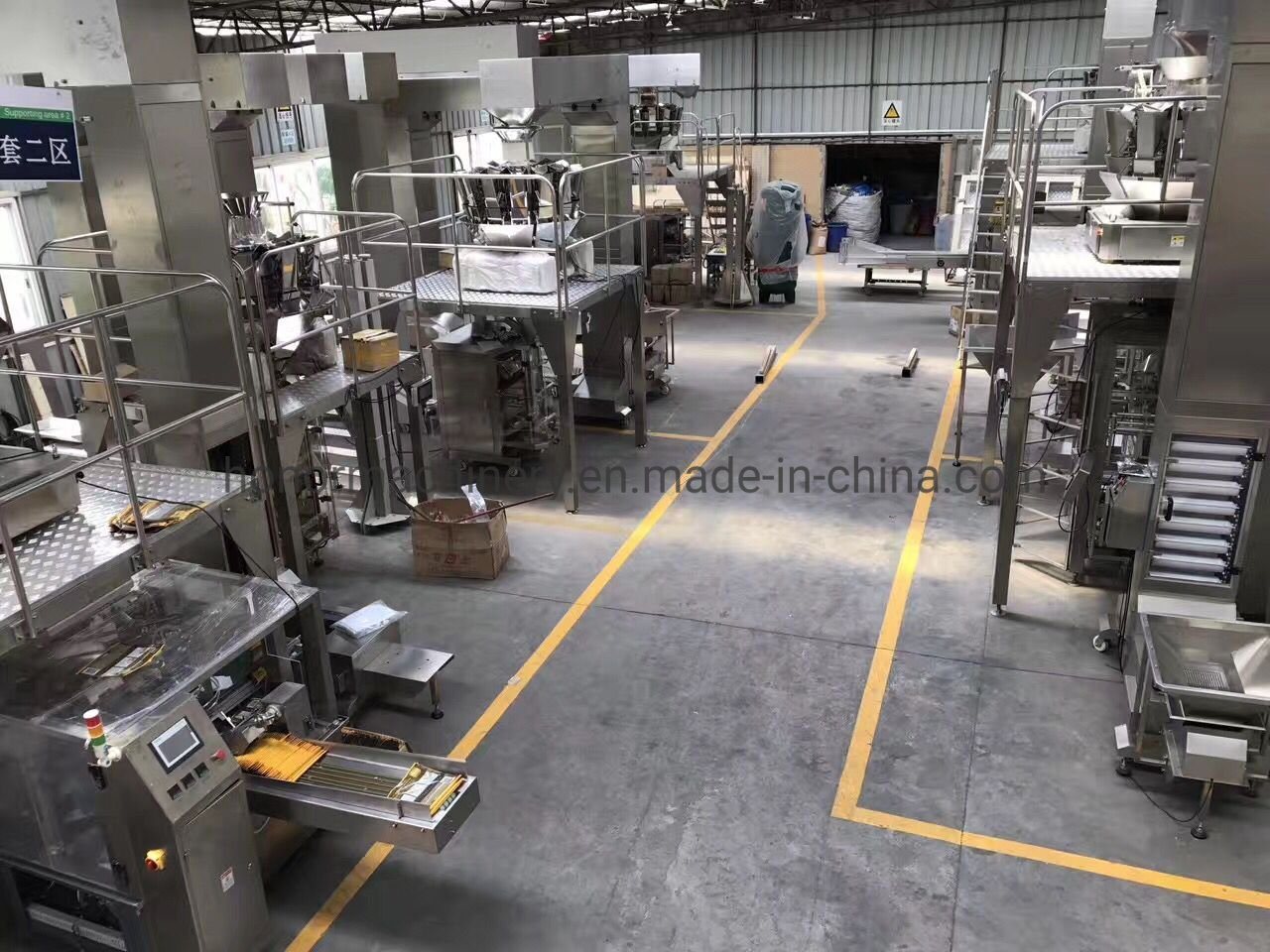

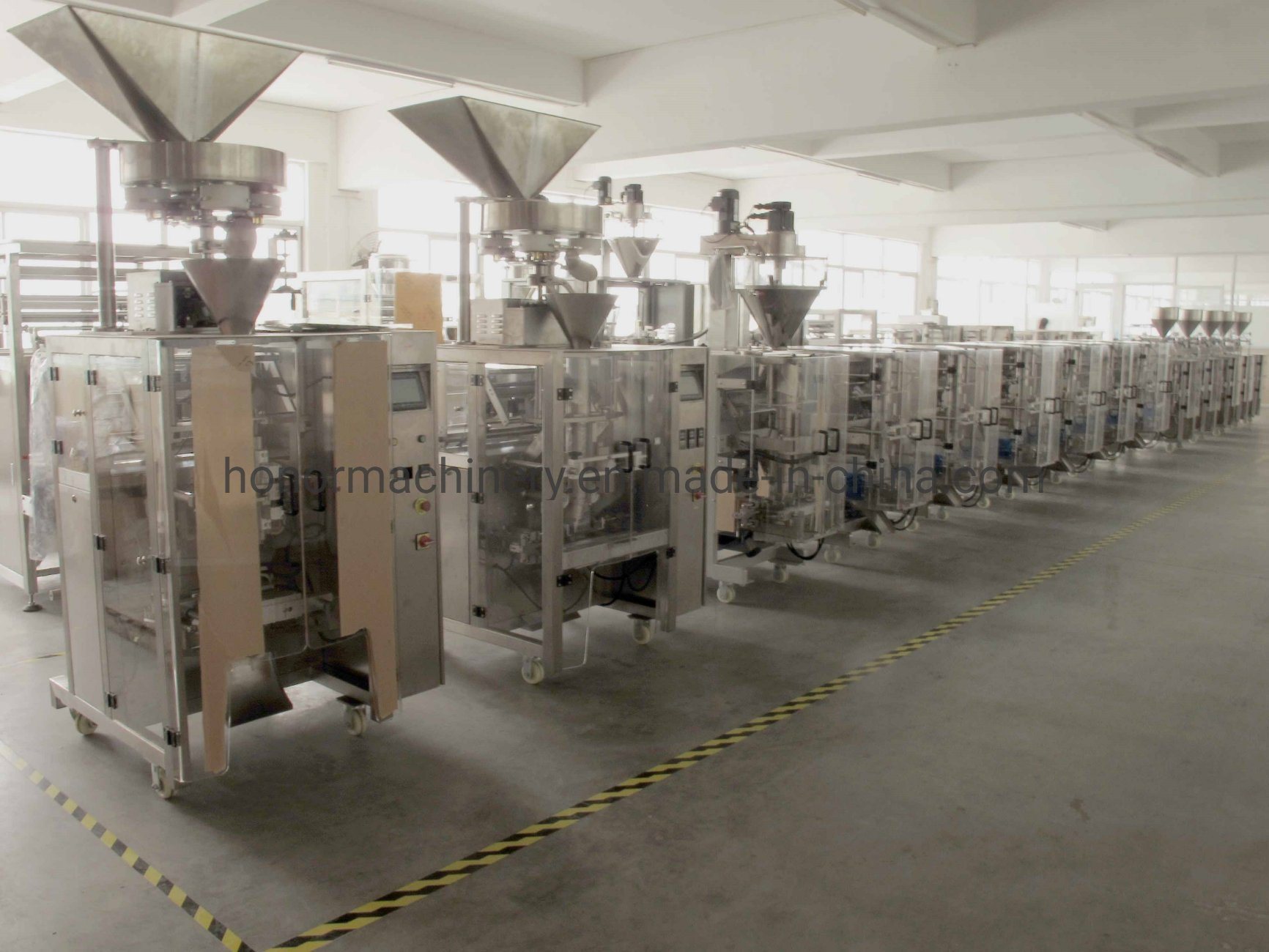

Factory Show
Welcom to visit our fatory !
Our Service
1.We can provide "one-stop purchasing" or "package program" system solutions and owns professional manufacturing equipment as well as a full range of technical support and after-sale service.
2. OEM, Customized can be all accepted.
3. Contact us any time when you feel free.
Package Show
FAQ
Q: Canyourmachinebecustomized ?
A: Yes, we are a professional manufacturer specilized in palletizing robot, packaging machine, conveyor etc. for more than 10 years and we have a strong design&technical team. We can design and manufacture as per your requirements.
Q:Howtogetanaccuratequotation?
A: Please provide us the detail of the workpiece such as drawing and dimensions.
Q:What'stheshippingcostfromChinatoyourcountry ?
A: We can send machine to your port by sea or other term you need. Please kindly tell us your nearest port or address with code. We have reliable shipping agent to ensure the safe, convenient and timely delivery.
Q:Paymentterms,MOQ,warranty, Trade Terms
A:Paymentterms:30%downpaymentagainstorderbyT/T,thebalanceof70%to bepaidondelivery.
Minimumorderquantity:1set,FOBShanghai
Deliverytime:about20-30 working daysafterreceiptofformalorderand30%deposit.
Warranty:12monthsfollowingdelivery.Weofferonlineservice24hoursalldaylong,Skype,
Emailetc.Youcancontactusanytime,ifurgently,pleasecallus.
Q:what'sthepackage ?
A:All goods are packed in wooden box
Q:DoyouofferInstallation&debugging?
A:Our engineers are available to service machinery overseas to help customers to solve machine problems.
bag packing machine
packing machine
Q:what'spolicyforguaranteeandbrokenparts ?
A:As for machine products, our company provides 12 months for all mechanical parts with the exception of electrical and electronic parts and those subjects to normal wear and tear. Meanwhile, the guarantee starts from the shipment (B/L date). The guarantee is intended limited to the replacement of the broken part after checking the construction fault. The inspection of the causes of the trouble or the breakdown of the parts is exclusively up to the manufacturing company. All in all, our company can offer you assured products.
