The1year
Moving Easily 1.5kw Small Feed Pe
Gasoline Engine Dricen Feed Pelle
- Model NO.：
- Certification：
- CE, ISO

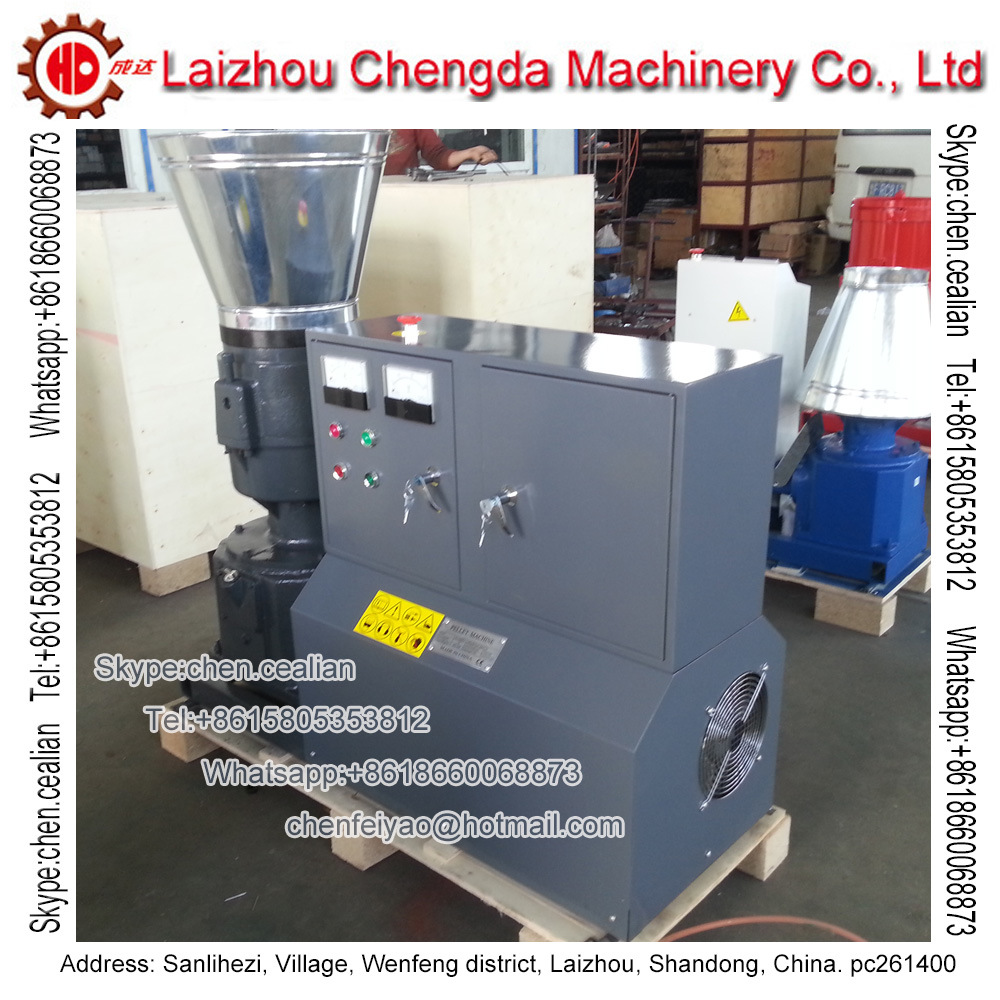

Roller Driven Wood Pellet Machine
1.This series machine can be powered by electric, diesel engine or tractor(PTO);2.We adopt the new design of direct connection of motor shaft and he main shaft that
overcome the loose defect of belt connecting as long time using;
3.High accuracy gearbox and high output;
4.It is widely used in large,middle, small scale aquatic. food and feed processing factory,
livestock farm, poultry farm, individual raisers, middle and small farm;
5.International advance steam fittings and imported pressure reduction valve;
6.Flat die is made with international advanced equipment for long lifespan;
7.Drive with heavy duty gearbox, which can produce continuously in most adversecondition.
1) The pressure is larger and adjustable. So it can make more type of pellets such as sawdust,
rice husk, straw, cottonseed husk, weeds and all kinds of crop straw and plant waste.
2) Low energy consumption and easy operation. which is especially suitable for small farms in
the area of shortage of electricity.
3)Small and lightweight, making small-scale production possible.
| All KL-B Series Pellet Machine | ||||||
| Model No. | Match power | Feed output | Wood output | N/Gweight(kg) | Pelletdiameter | Packing Size(cm) |
| KL120B | 2.2kw/3kw | 60-100 | 40-60 | 80/100kg | 2.5-10mm | 75*35*65 |
| KL150B | 4kw | 90-120 | 50-90 | 95/115kg | 2.5-10mm | 75*35*65 |
| KL200B | 7.5kw | 400-600 | 220-230 | 150/220kg | 2.5-10mm | 123*53*107 |
| KL230B | 11kw | 600-800 | 290-320 | 150/220kg | 2.5-10mm | 128*60*105 |
| KL260B | 15kw | 700-900 | 300-360 | 150/220kg | 2.5-10mm | 134*58*106 |
| KL300B | 22kw | 900-1100 | 400-550 | 150/220kg | 2.5-10mm | 152*60*115 |
A: New flat die pellet mill in first use may not produce pellets, because of the low smoothness of
mould and bad cooperation in new devices. After using oily material for a period, the pellet machine
can run smoothly.
B: The clearance between rollers and dies is too large. You can tighten the screw to narrow the gap to
1.5-2.5 mm.
C: Necessary steps to update a new die or roller shell because of wear and tear caused by long-term
service.
D: The material is too wet or too dry, resulting in low productivity. You'd better increase or decrease
the moisture to proper rate, generally 13%-16% in raw material.
Pellets as animal feed
♦ Feed pellet machine is mainly used for producing animal feed pellets. Corn, bean pulp, straw, grass, rice
husk, alfalfa, wheat stalk, etc.
0.8-8mm diameter die very suitable to make animal feed pellets.
For animal feed:The suitable raw materials for making feed pellets are corn stalk, peanut shells, maize straw and other
farm wastes. Pellets made by the flat die pellet mill as animal feed can be stored for a long time. It can shorten the period
of feeding, so it can efficiently guarantee many users' productive cost. Feed pellets are mainly supplied to cattle, chicken,
pig, pets and other animals.
♦ Feed pellet machine is mainly used for producing animal feed pellets. Corn, beanpulp, straw, grass, rice husk, alfalfa,
wheat stalk, etc.
♦2.5-10mm diameter die very suitable to make animal feed pellets.
♦The length can adjust according to your need.
♦Moisture content: The moisture content should be about 12%-20%, that is to say, the minimum moisture content is not
less than 12% and the maximal moisture content is not more than 20%, or you will not get high quality pellets.
Pellets as fuel
Woodpelletmachineisspeciallyusedforproducingwoodpellets,anewenvironmental fuel instead of the coal
and oil.Therawmaterialiswideandusuallymakeuseofthewaste. such assawdust, wood shavings, wood chips, wood
logs, straw, rice husk, cotton stalk, peanut shell, bamboo, empty fruit branches, roseamary waste, other plant wastes etc.
Home pellet stove is widely used in Europe and many other places in the world. It is an environment-friendly method to
keep warm and cook. Pellet stove uses less natural resources as its fuel is generated from waste or recycled materials.
The fuel it used can be made at home. Here are a few tips for youto spend lessmoney making the stove fuel if you choose
a pellet stove for heating.
You have to prepare raw materials along with a flat die pellet mill which is
press the materials into the needed fuel for home. There are a wide variety of raw materials that you can use to make the
fuel, such as fruit pits, different types of grass, corn cobs, barley star, shelled corn, wheat, paper, etc. Your choice of
materials decides the heating or cooking effect, thus you need to look up the kind of stove to properly match the pellet fuel.
Payment Method
| 1. How to order? |
| After you decide to purchase, we will send you proforma invoice with our bank information, bring this PI to the bank, and ask to make T/T for the deposit. For single set, your machine can be ready within 7-10 working days after we getting the deposit, we will send to the port and deliver to you by sea. -In case for more handling charges, you can transfer 100% of the payment, we can arrange the products and shipping under your allowance. |
| 2. Related products? |
| PTO type, diesel type, electric type. |
| 3. Can i order 1 set for sample? |
| Yes, Sample acceptable, You can test the quality of sample. |
| 4. How do we visit you and your factory? |
First of all, welcome you or any appointed agent to visit and inspect our factory. You can fly to Shanghai airport, then come from Shanghai railway station to weifang city. You can fly to Qingdao airport, then we can pich you up there. We can pick up you at Qingdao airport or Weifang railway station. Please kindly let us know your schedule in details, so we can arrange everything for you. |
5. Why you choose us? |
As manufacturer, our products have excellent quality and competitive price. Good after-sale services and12 months warranty are visible. Strictly testing and checking before shipping. 25 years experience in manufacturing and10 years exporting experience. Doing OEM for many famous brand. |
