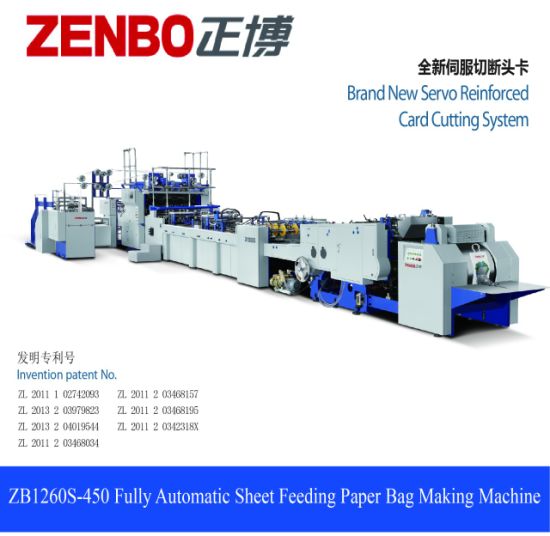

Paper Sheet Feed Automatic Paper Bag Making Machine with Handle

Model NO.：

ZB1260S-450

Certification：

Tea Box Carry Paper Bag Making Machine with Hole Punching Function


1. Production Description

ZB1260S-450 fully automatic paper bag making machine adopts sheet paper, reel reinforced paper and twist rope paper as material to produce paper bags in one time. The process contains handle making, handle pasting, top folding (or without top folding), tube forming, gusset folding, bottom pasting, compaction output or reinforced paper pasting, top folding, tube forming, gusset folding, eyelet punching, bottom pasting and compaction output. Three bag types are all available on this machine. based on the traditional machine mechanical handle/patch cutting unit, this machine updated to servo cutting system which has amuch more compact structure. Shorter setup time, safer working condition, bigger and convenient operation space are all its advantages.

Max.sheet(LXW)	1200X600	1200X600	1200X600
Min.sheet(LXW)	620X320	620X320	620X320
Sheet Weight	120g-190g	120g-190g	120g-190g
Bag Width	220-450mm	200-450mm	220-450mm
Bottom Width	70-170mm	70-170mm	70-170mm
Bag length	235-490mm	235-490mm	235-540mm
Top turn in width	40-60mm	40-60mm	----
Handle patch length	189mm	189mm	189mm
Handle patch width	30-50mm	30-50mm	30-50mm
Handle patch weight	140g-200g	250g-350g	140g-200g
Handle patch roll diameter	φ 1000mm	φ 1000mm	φ 1000mm
Handle patch roll width	60-100mm	60-100mm	60-100mm
Paper rope diameter	4-6mm	----	4-6mm
Handle rope height	170-195mm	----	170-195mm
Speed	40-70bags/min	40-70bags/min	40-70bags/min
Total Power	25kw	25kw	25kw
Total Weight	22T	22T	22T
Machine Size	16450x5300x3100mm	16450x5300x3100mm	16450x5300x3100mm
Glue Type	Water soluble cold glue	Water soluble cold glue	Water soluble cold glue
	(hot-melt glue)	(hot-melt glue)	(hot-melt glue)

Machine configurationFeederFront And Side Guides Positioning SystemEdge Cutting SystemReinforced paper gluing systemHandle pasting systemServo reinforce paper cut off systemTop folding systemAutomatic edge gluing systemAutomatic creasing and Punching systemThread rod to adjust bottom Clip systemBottom catch bag roller paper bag Fall down alert systemAutomatic collection systemWorking procedure

2. Company Infromation

Zhejiang Zenbo Intelligent Machinery Co.,Ltd was established in 2009. We are professional for sheet feeding paperbag making machine. ZENBO machinery lead sheet-feeding paper bag making machine in China. We have worked with over 70% of high quality paper bag producer in China market and have 20 different types of paper bag making machine to meet the different kinds of demands for the customers. Besides, we have been exported to more than 40 countries for years.

3. Certifications


4. packing&shipping

5. Our Services

Service and technical support including the allocation of wearing parts, online fault know, installation and debugging, the purchaser`s worker training, software upgrade, The product specification, fault repair and other buyers concerned about the contents. For example:

1.offers you the how to pre-sale service? Such as: whether or not to provide the sample? Sample charges? Where the party to bear the freight?

Answer: can free to provide customers with bag samples were real machine proofing proofing, and shooting videofor customer reference.

Send in the proofing paper provided by the customer, the paper freight provided by the customer, to complete the sample bag proofing can be sent free of charge by our company.

2.you provide the service of how the sale? Such as: supplying method of wearing parts? Delivery cycle (orders started)?

Answer: the damage in the warranty period of the fittings, our company in accordance with the warranty for its freereplacement. Product delivery cycle is generally for the signing of the contract within 45 days from the date of.

3.after sale service? Such as shelf life? How to provide service within the warranty period?

Answer: can provide 1years of free warranty, long-term training services (the first free, second or subsequenttraining fees), the warranty period of machine parts can be damaged According to the number of free replacement parts.

4.other special services? Such as the design, customization, installation, training and other services!

Answer: other services include free training for the first time, subsequent paid training, and other technical support.

MACHINE INSTALLATION

For the purchase of new machines for customers, our company can arrange engineer to install machinery and for the training of machine operators; for the second time or more need to move Machine and training services, our company provides compensation for the movement and training services.
