- power：
- 20KW 25KVA
- Frequency/voltage：
- 50HZ 60HZ 380V-480V
- Options：

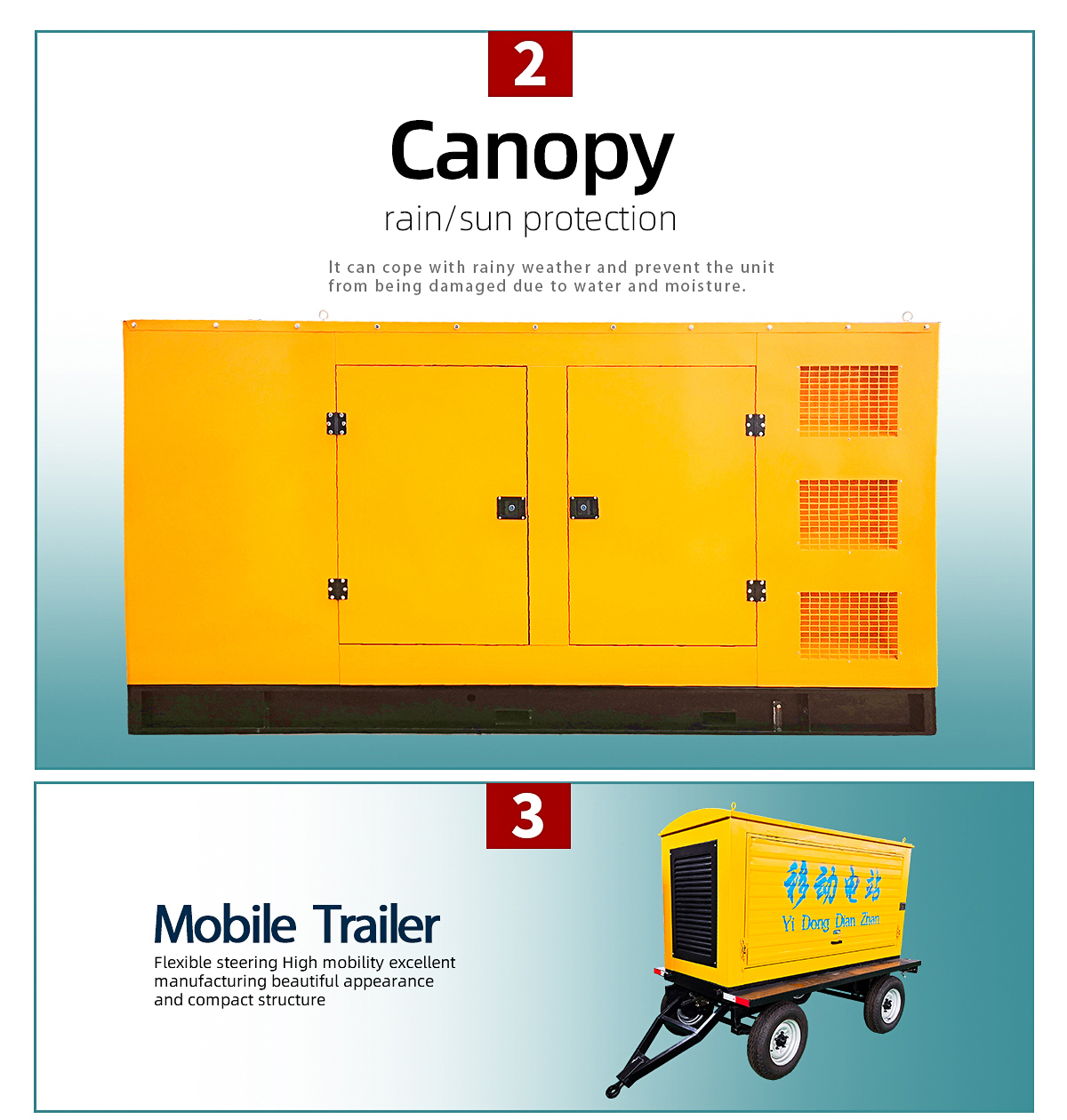

- open/silent/ATS/trailer/closed/soundproof/canopy/
Alternator type | Pure copper brushless |
Connection mode | Three phase four wire |
normal frequency | 50/60HZ |
Certificate | CE/ISO9001/ISO14001 |
Warranty time | 12 Months/1000 Hours |
Cooling System | Water-Cooled |
Color | Customers' Requirement |
Starting method | 24V DC Electric Start |
Control panel | Standard Panel |
Optional | Automatic transfer switch |
Power factor (PF) | COSΦ=0.8（lag） |
Output voltage(OV） | 400V/440V/230V/220V/110V |
Diesel oil type | (standard) 0 × light diesel (normal temperature) |
Steady state voltage regulation rate (%) | ≤±1 |
Voltage fluctuation rate(%) | ≤±0.5 |
Transient voltage regulation(%) | ＋20～－15 |
Voltage settling time(S) | ≤1 |
Steady-state frequency control | ≤±1 |
Frequency jitter(%) | ≤±0.5 |
Transient frequency fluctuation(%) | ＋10～－7 |
Frequency stabilization time(s) | ≤3 |
Rated speed | 1500/1800rpm |
