runxin valve with timer

Price:70.00

Minimum order:4 件Stock100 件

Total:
100 件
Brand:
Area:
HEBEI
Delivery time:
From the date of payment by the buyer3internal delivery

Business card

  • Corporate nameShijiazhuang Amanda Import And Export Co., Ltd.
  • ContactsVanilla(Ms.)
  • Telephone
  • Mobile
  • AddressNo 260 Huaian West Road Shijiazhuang City Hebei Province China, Shijiazhuang, Hebei, China
Popular goods
  • 1
  • 2
  • 3
Recommend

Drinking water RO Me

$8.00/件

factory uv purifier

$19.60/件

High Flow ro water M

$8.00/件

CTO Water Filter Car

$0.64/件

ro membrane for boat

$75.00/件

Multi Port runxin va

$70.00/件

Store information

Area:HEBEI

Level:VIP memberThe1year

Authentication:

Paid:0.00 bond

My Medal: [archives]

Customer service:

Business card

【warm tips】please explain what you saw us atAfrican-MachineThank you
Product details
Application:
Water Treatment
Tank size:
6"-18"
Water Pressure:
0.15Mpa~0.6Mpa

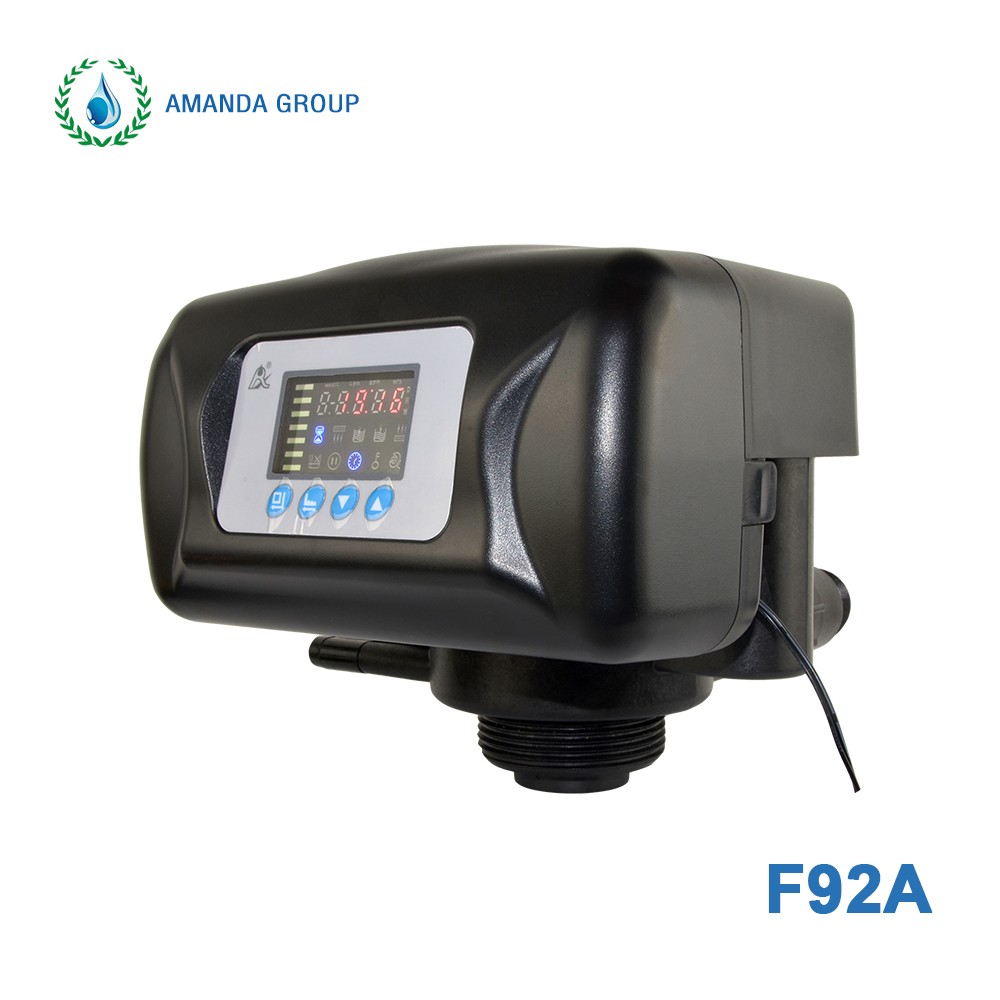

Runxin Automatic Control Multi port Valve for Softener

Runxin valves innovative design of high degree pottery sealing and multi flow channels have own patent for invention in 18 countries, such as USA, Russia, South Korea, Mexico, Australia, India, Philippines and ten countries membership of the EU including Germany, Italy, France, Netherlands. Products have achieved the certificates of the National Sanitation Foundation, the European Union CE and RoHS certification.

Runxin valve is one of the three largest control valve manufacturers in the world. Its products are divided into automatic control valve, manual control valve, Runxin filter valve, Runxin softening valve, Runxin time control valve and Runxin flow control valve.

Characteristics of Runxin Control Valve :

1. end face sealing structure

A. Moving plate is ceramic

B. High strength synthetic material is used for the setting

C. For various softener valves, partial balance structure is adopted to prevent the torque increase of sealing surface due to the increase of water pressure.

2. pressure operation

Because two high flatness sealing plates are used for the lubrication valve, they are mutually compatible with rotary seals, and can be operated directly with pressure when each work level is switched.

3. no raw water bypass

The control valve automatically blocks the outlet pipe of the water softener or filter during regeneration or cleaning, and prevents the raw water from entering the system.

4. simple assembly

The valve is mainly composed of valve body, dynamic sealing plate, fork, pressing plug, etc; The complex parts valve body is made once, with less processing links and high dimensional stability.

The positioning accuracy of each working position is higher by directly fixing it on the valve body.

During installation, each part is limited and will not be installed incorrectly.

5. there are many kinds of jet machines

The ratio of the salt absorption to the total flow rate of the outlet is between 25% and 35%.

Each tank has a jet to match.

Water Pressure

0.15-0.6MPa

Water Temperature

5℃-50℃

Transformer Output

DC12V/1.5A

Water Turbity

Down-flow regeneration<5FTU

Inlet/Outlet

1"F

Drain

1"F

base

2.5"-8NPSM

Raiser Pipe

1.05"OD

Max Flow Rate

4M3/H

Suitable Tank Size(in)

6"-14"
