Loop pile tufting machine
Cut pile tufting machine
M-color tufting machine
- Working width：
- 1.25m or 2m or 4m
- Gauge：
- 1/8" or 5/32"
- Mechanical speed：
- 600RPM
Introduction
This FRS scroll tufting machine makes jacquard designs by independently control the feeding quantity of each yarn, thus achieve the high and low pile effect. It can make two or three heights on one carpet.
Parameters
Machine Size:
2m L*W*H7.8*2.4m*3.3m
4m L*W*H6*2.4m*3.3m
Working width: 1.25m or 2m or 4m
Gauge: 1/8" or 5/32"
Loop pile height range: 6-22mm
Mechanical speed: 600RPM
Stitch density: 25-60 stitches/10cm
Total power: 2m 30kw
4m 40kw
Optional sliding needle bar or jute mover
Servo motor + planetary reducer feeding of primary back
Roller puller controlled by servo motor
Operation setting on touch screen

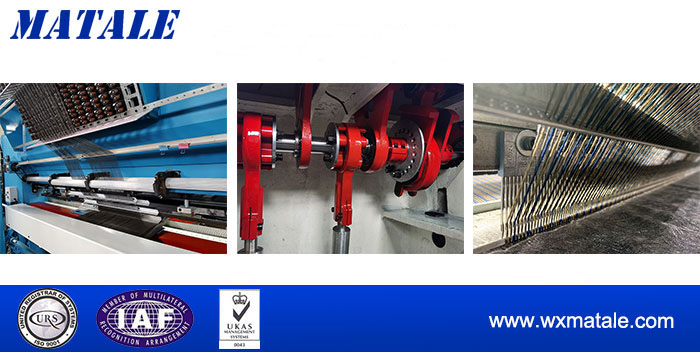

Machine Feature
1. LCL tufting machine,Stable structure with no internal stress deformation by using cast frame and overall annealing treatment.
2. Needle beam driver adopts 70mm modulating shaft, with gear meshing balance shaft.
3. Equipped with lifting rings , easy for movement.
4. Air cylinder device for backing roll loading.
5. High configuration of mechanical parts like SKF bearing, Groz gauge part s etc .
6. By using 4 individual point s crews , machine can stand on all types of floors .
7. Equipped with Touch screen, Siemens PLC , individual power and computer cabinet.
8. Overload protection, cover protections , pull wire emergency stop switch.
9. Servo control backing feeding, planetary reducer control of machine driving makes machine running with big torque stably.
