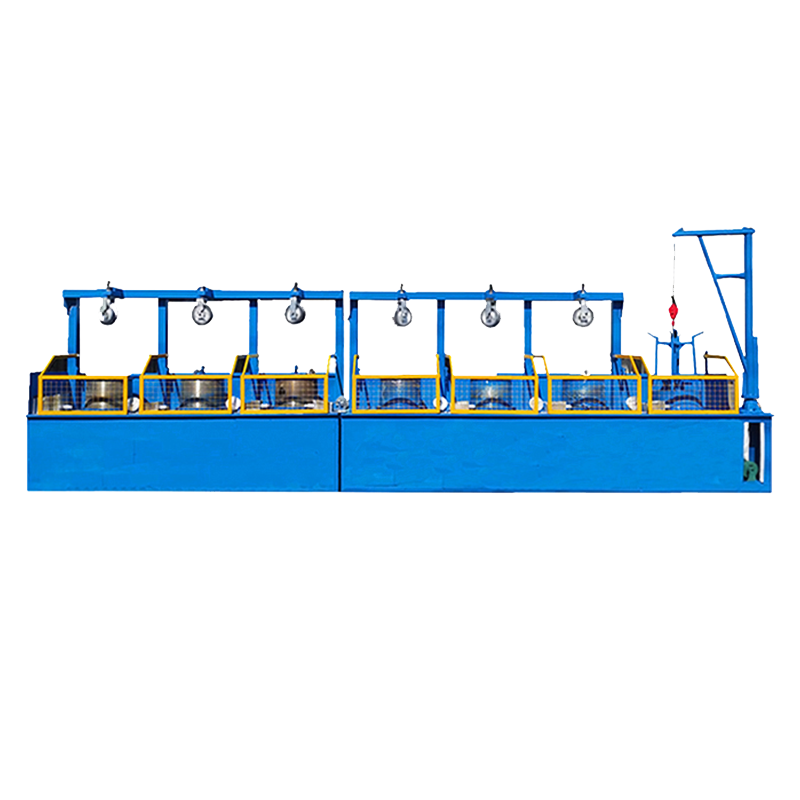

pulley type wiredrawingmachine
coal mine support mesh machine
straightening cutting machine
Automatic mesh stackingmachine
Hydraulic take-up machine
- wire diameter：
- 5mm-12mm
- mesh opening size：
- 100mm-300mm
- max. mesh width：
- 2500mm
1.Application scope of welded steel mesh product
Application scope of welded steel mesh: Housing Engineering, road and bridge engineering field, precast composite plate concrete components, scaffold welded mesh, subway lining, coal mine roadway, etc.
2. Brief introduction of Steel Reinforced Mesh welding machine
GWC series reinforcing mesh welding machine is a new type of high automation steel mesh welding equipment successfully developed by our company on the basis of absorbing advanced electromechanical control resistance welding and spot welding technology at home and abroad in recent years. It combines with the latest research and development of domestic market.
The modular structure design is adopted for the steel reinforced mesh welding machine, which is more convenient for the upgrading and transformation of the functional structure, and provides convenience for meeting the different needs of customers in different periods. According to its structure, it can be divided into seven parts: line wire feeding frame, line
wire feeding unit, welding unit, cross wire feeding hopper, movable support frame for dropping cross wires, movable grid pulling frame and automatic mesh stacking system. It has the characteristics of novel structure, firm frame, easy operation and high cost performance.
item | GWCD2500(5-12) |
Rebar diameter | Min.φ6+φ6，max.φ12+φ12 |
Welding spot No. | 24 |
Mesh width | 1500mm-2500mm |
Mesh length | 3m-18m |
mesh stacking length | 12m |
Line wire space | 100mm～300mm adjustable |
Cross wire space | 100mm～300mm adjustable |
Line wire feeding form | Pre-cut wire |
Cross wire feeding form | Pre-cut wire |
