High-pressure steel wire winding hose
High pressure rubber hose

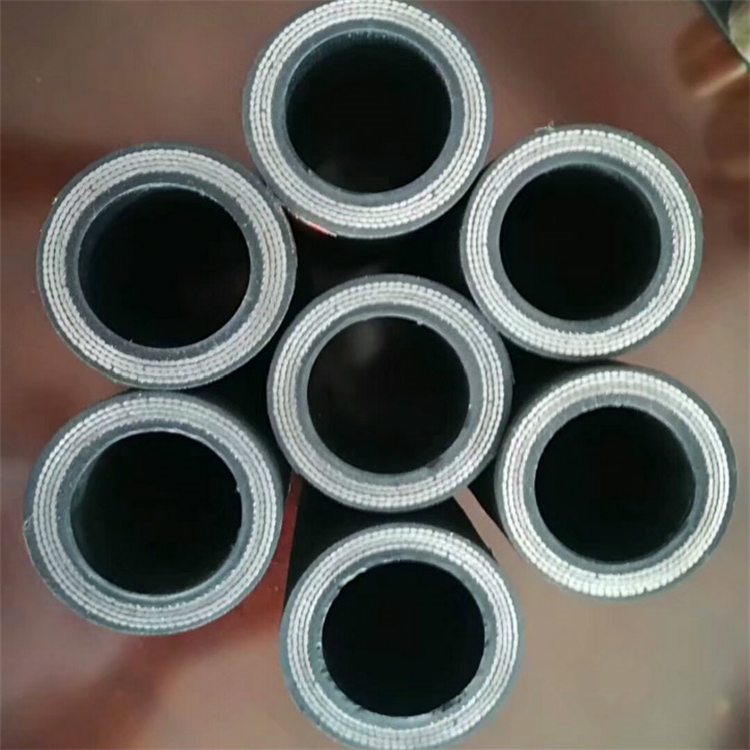

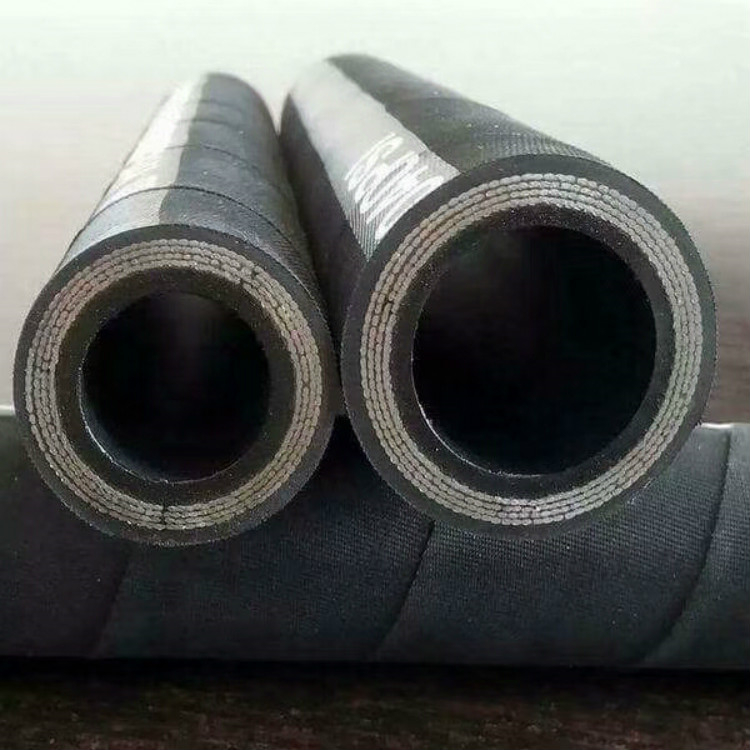

Structure: rubber hose is composed of inner rubber layer, two or four layers of steel wire winding layer and outer rubber layer
Purpose: High-pressure steel wire reinforced hydraulic hose is mainly used for mine hydraulic support and oil field exploitation, and is suitable for engineering construction, lifting and transportation, metallurgical forging, mining equipment, ships, injection molding machinery, agricultural machinery, various machine tools and mechanization of various industrial departments The automatic hydraulic system transports petroleum-based (such as mineral oil, soluble oil, hydraulic oil, fuel oil, lubricating oil) and water-based liquid (such as emulsion, oil-water emulsion, water) with certain pressure (higher pressure) and temperature, and liquid transmission, with the maximum working pressure of 70-100MPa.
Working temperature: - 40 ℃ -+120 ℃
Steel wire winding hose
Structure: rubber hose is composed of inner rubber layer, six layers of steel wire winding layer and outer rubber layer
Purpose: High-pressure steel wire reinforced hydraulic hose is mainly used for mine hydraulic support and oil field exploitation, and is suitable for engineering construction, lifting and transportation, metallurgical forging, mining equipment, ships, injection molding machinery, agricultural machinery, various machine tools and mechanization of various industrial departments The automatic hydraulic system transports petroleum-based (such as mineral oil, soluble oil, hydraulic oil, fuel oil, lubricating oil) and water-based liquid (such as emulsion, oil-water emulsion, water) with certain pressure (higher pressure) and temperature, and liquid transmission, with the maximum working pressure of 70-100MPa.
Working temperature: - 40 ℃ -+120 ℃
Product features:
1. The rubber hose is made of special synthetic rubber and has excellent oil resistance, heat resistance and aging resistance.
2. The rubber hose has high bearing pressure and excellent pulse performance.
3. The pipe body is tightly combined, soft to use, and has little deformation under pressure
4. The rubber hose has excellent bending resistance and fatigue resistance.
5. The length of steel wire wound hose is 20 meters, which can be made within 50 meters according to requirements.
Note: The standard of steel wire winding hose of the enterprise refers to GB/T10544-03 standard, DIN20023, SAE100R9~13 standard. This standard is not suitable for castor oil base and grease base liquids.
二层高压钢丝缠绕胶管
软管规格 | 内径 | 钢丝层直径 | 外径 | 工作压力 | 爆破压力 | 最小弯曲半径 | 参考重量Kg/m | ||
MPa | Psi | MPa | Psi | ||||||
2sp-19-28 | 19±0.5 | 26.6±0.8 | 30.6±1.0 | 28 | 4057 | 84 | 12172 | 280 | 1.32 |
2sp-25-21 | 25±0.8 | 32.6±0.8 | 36.6±1.5 | 21 | 3043 | 64 | 9274 | 360 | 1.64 |
2sp-32-28 | 32±0.8 | 40.6±0.8 | 44.6±1.5 | 20 | 2898 | 60 | 8694 | 460 | 2.14 |
2sp-51-15 | 51±1.0 | 60.0±1 | 64±1.5 | 15 | 2175 | 45 | 6525 | 720 | 3.42 |
2sp-64-15 | 64±1.0 | 74±1.2 | 79±1.5 | 15 | 2175 | 45 | 6525 | 820 | 3.4 |
2sp-76-19 | 76±1.0 | 93.4±1.5 | 99±2.0 | 19 | 2755 | 57 | 8265 | 1100 | 8.5 |
2sp-89-17 | 89±1.0 | 106.4±1.5 | 112±2.0 | 17 | 2465 | 51 | 7395 | 1200 | 9.8 |
2sp-102-15 | 102±1.0 | 119.4±2.0 | 125±2.5 | 15 | 2175 | 45 | 6525 | 1300 | 11 |
2sp-127-14 | 127±1.0 | 145.2±2.0 | 151±2.5 | 14 | 2030 | 42 | 6090 | 1400 | 14.5 |
2sp-152-13 | 152±1.5 | 172±2.0 | 178±2.5 | 13 | 1885 | 39 | 5655 | 1700 | 17.5 |
2sp-203-12 | 203±1.5 | 227±2.5 | 235±3.0 | 12 | 1740 | 36 | 5220 | 2200 | 27 |
四层高压钢丝缠绕胶管
软管规格 | 内径 | 钢丝层直径 | 外径 | 工作压力 | 爆破压力 | 最小弯曲半径 | 参考重量Kg/m | ||
MPa | Psi | MPa | Psi | ||||||
4sp-6-100 | 6±0.5 | 14.4±0.8 | 19±1.0 | 100 | 14490 | 210 | 30492 | 130 | 0.65 |
4sp-8-80 | 8±0.5 | 16.4±0.8 | 20.5±1.0 | 80 | 11592 | 210 | 30492 | 145 | 0.85 |
4sp-10-70 | 10±0.5 | 19.2±0.8 | 24±1.0 | 70 | 10143 | 210 | 30429 | 160 | 1.03 |
4sp-13-60 | 13±0.5 | 22.0±0.8 | 26±1.0 | 60 | 8694 | 180 | 26082 | 410 | 1.21 |
4sp-16-55 | 16±0.5 | 25.8±0.8 | 29.8±1.0 | 55 | 7970 | 165 | 23909 | 260 | 1.72 |
4sp-19-46 | 19±0.5 | 29.6±0.8 | 33.6±1.5 | 46 | 6665 | 140 | 20286 | 280 | 2.08 |
4sp-22-40 | 22±0.8 | 32.6±0.8 | 36.5±1.5 | 40 | 5796 | 120 | 17400 | 360 | 2.51 |
4sp-25-35 | 25±0.8 | 35.6±0.8 | 39.6±1.5 | 35 | 5800 | 120 | 17400 | 360 | 2.51 |
4sp-32-32 | 32±0.8 | 43.6±0.8 | 47.6±1.5 | 32 | 4637 | 96 | 13910 | 460 | 3.12 |
4sp-38-28 | 38±1.0 | 50.4±1 | 54.4±1.5 | 28 | 4057 | 84 | 12172 | 560 | 4.31 |
4sp-45-35 | 45±1.0 | 57.4±1 | 61.4±1.5 | 35 | 5050 | 105 | 15150 | 650 | 4.87 |
4sp-51-35 | 51±1.0 | 63.4±1 | 67.4±1.5 | 35 | 5050 | 105 | 15150 | 720 | 5.40 |
4sp-64-35 | 64±1.0 | 78±1.0 | 83±1.5 | 35 | 5075 | 87 | 12615 | 900 | 6.7 |
4sp-76-35 | 76±1.0 | 101.8±1.5 | 108±2.0 | 35 | 5075 | 87 | 12615 | 1200 | 10.5 |
4sp-89-35 | 89±1.0 | 114.8±1.5 | 121±2.0 | 35 | 5075 | 87 | 12615 | 1400 | 16.4 |
4sp-102-35 | 102±1.0 | 127.8±2.0 | 134±2.5 | 35 | 5075 | 87 | 12615 | 1400 | 18.2 |
4sp-127-30 | 127±1.0 | 154.4±2.0 | 161±2.5 | 30 | 4350 | 75 | 10875 | 1500 | 25.3 |
4sp-152-27 | 152±1.5 | 182±2.0 | 189±2.5 | 27 | 3915 | 67.5 | 9787 | 1800 | 33.5 |
4sp-203-25 | 203±1.5 | 239±2.5 | 247±3.0 | 25 | 3625 | 62.5 | 9062 | 2300 | 52.2 |
六层高压钢丝缠绕胶管
软管规格 | 内径 | 钢丝层直径 | 外径 | 工作压力 | 试验压力 | 爆破压力 | 最小弯曲半径 | 参考重量Kg/m | |||
MPa | Psi | MPa | Psi | MPa | Psi | ||||||
6sp-6-110 | 6±0.5 | 16.6±0.8 | 20.6±1.0 | 110 | 15939 | 115.5 | 16736 | 231 | 33472 | 180 | 0.95 |
6sp-10-77 | 10±0.5 | 21.8±0.8 | 25.8±1.0 | 77 | 11157 | 85.5 | 12389 | 231 | 33472 | 210 | 1.48 |
6sp-13-66 | 13±0.5 | 24.8±0.8 | 28.8±1.0 | 66 | 9563 | 72 | 10433 | 198 | 28690 | 260 | 1.75 |
6sp-16-65 | 16±0.5 | 29.0±0.8 | 33.0±1.0 | 65 | 9425 | 97.5 | 14125 | 195 | 28250 | 310 | 2.02 |
6sp-19-60 | 19±0.5 | 33.0±0.8 | 37.0±1.5 | 60 | 8700 | 90 | 13050 | 180 | 25100 | 350 | 2.49 |
6sp-25-50 | 25±0.8 | 39.0±0.8 | 44.0±1.5 | 50 | 7250 | 65 | 10850 | 150 | 21750 | 430 | 2.82 |
6sp-32-45 | 32±0.8 | 47.0±0.8 | 52±1.5 | 45 | 6525 | 68 | 9850 | 135 | 19550 | 530 | 3.79 |
6sp-38-45 | 38±1.0 | 54.2±1.0 | 59.2±1.5 | 45 | 6525 | 68 | 9850 | 135 | 19550 | 660 | 5.76 |
6sp-51-45 | 51±1.0 | 67.2±1.0 | 72.2±1.5 | 45 | 6525 | 68 | 9850 | 135 | 19550 | 820 | 7.13 |
