Product details
width:
1000mm
length:
1000mm
length:
1400mm

What is the nail making machine business? Is it profitable for nail making business? In China, which city nail making machine is the best quality? How to find a good nail making machine business supplier?

What is nail making business?

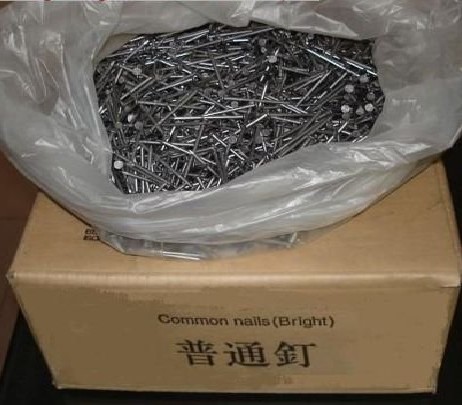

We can buy raw materials from local or import from China, then feed the nail making wire into the machine. The nail making machine will make common iron wire nails automatically. And we can choose a Z94-4C or Z94-3C nail making machine to make 2inch, 2.5inch, 3inch, 4inch common nails. Nail making business is profitable in Africa and the Mid East in recent years.

Why we start nail making machine business?

Nail making business is simple. We just buy nails making machineget materials, then start production. And use a polishing machine washing nail to bright and Shinny.

Common iron nails are huge demand in Africa and Mid East, also Latin America & Europe. We can make nails to sell in domestic, and export to neighboring countries.

Wire nail making business is profitable than import and distribute in local building materials markets. Normally USD100-250/Ton at least in Africa. And we can buy more nails making machines and produce as more nails as we can.

Which brand nail making machine is the best in China?

We are Amigo Machinery, one of the leading manufacturers of Wire Nail Machine, Nail Making Machine, Nail Making Plant, Nails Manufacturing Machine, Automatic Nail Machine In Hebei, China.

We also try to set up an office and showroom in Egypt, Sudan, Libya, Tunis, Maroc, Algeria, Western Sahara, Mauritania, Senegal, Gambia, Mali, Guine-Bissau, Guinea, Sierra Leone, Cape Verde, Liberia, Cote d’Ivoire, Ghana, Togo, Benin, Burkina Faso, Niger, Chad, Nigeria, Cameroun, Equatorial Guinea, Central African, Ethiopia, Eritrea, Djibouti, Somali, Burundi, Zambia, Kenya, Tanzania, Uganda, Namibia, Lesotho, South Africa, Swaziland, Rwanda, Mozambique, Zimbabwe, Botswana, Malawi, Congo K.Kinshasa, Congo B.Brazzaville, Gabon, Sao Tome, and Principe, Angola, Madagascar, Mauritius, Comores, Seychelles, Reunion, Saint Helena, and India, Pakistan, Bangladesh, Afghanistan, Qatar, Saudi Arabia, Bahrain, Oman, Kuwait, Lebanon, Yemen, Iraq, Iran, Turkey, Israel.

Extremely high capacity and cost-efficiency

Amigo Brand series of high-capacity nail making machines incorporate the rotary forming principle and user-friendly machine design, ensuring high uniform nail quality, easy maintenance, high process stability, and efficiency as well as clean and low-noise production.

The unique forming principle, where wire feeding, wire cutting, and head forming take place in one continuous process of rotating movements. It can make our nail manufacturing machines the most efficient for the African market while offering the possibility of automated production and in-line manufacturing.

A key factor in the efficiency of Amigo rotary nail machines is the highly durable tooling integrated in the process line and guaranteeing smooth, non-stop operations.

DAILY OUTPUT OF Z94 NAIL MAKING MACHIE BUSINESS

ModelZ94-6CZ94-5.5CZ94-4CZ94-3CZ94-2CZ94-1C
Max. dia. of nail8.0mm5.5mm4.5mm3.5mm2.8mm1.6mm
Min. dia. of nail4.0mm3.8mm2.8 mm1.8 mm1.2 mm0.9 mm
Max. Length of nail200mm(7 inches)150mm(6inches)100mm(4inches)75mm(3inches)50mm(2inches)25mm(1inch)
Min. length of nail60mm(2.5inches)75mm(3inches)50 mm(2inches)25mm(1inch)16mm(0.6inches)9mm(0.36inches)
Motor power11kw5.5kw4kw3kw2.2kw1.5kw
Nail making speed130pcs/min190pcs/min250pcs/min310pcs/min350pcs/min560pcs/min
L*W*H3.0×1.6×1.5m2.5*1.4*1.4m2.3*1.4*1.35m2.0*1.2*1.25m1.65*1.2*1.1m1.35*0.95*1m
Weight4.8 tons1.9 tons1.6 tons1.05 tons0.78 tons0.5ton
Output3000kg/8h2000kg/8h1500kg/8h800kg/8h500kg/8h80kg/8h

TESTING OF Z94 NAIL MAKING MACHINE BEFORE DELIVERY

WIRE DRAWING MACHINE FOR Z94 NAIL MACHINE

WIRE POINTING MACHINE OPERATING VEDEO

BUTT WELDING MACHINE FOR WIRE DRAWING

GRINDERING MACHINE FOR NAIL CUTTER

Above is the related video of NAIL MAKING MACHINE IN CHINA. Now hope you already know how to operate these nail making machine and AUXILIARY EQUIPMENT. Following, we introduce some spare parts of nail making machine and how is nail making business profitable or not.

SAPREPARTS FOR Z94 6C WIRE NAIL MAKING MACHINE

  • Sharpening dies: this machine is to sharpen the head of steel wire before it is feed into the wire drawing machine, the principle of the drawing machine is that using different size of drawing dies, for example, to draw steel wire of 6.5 mm to 3.8 mm, we can use a drawing die of 3.8mm, sharpen the head of 6.5mm steel wire less than 3.8 mm first, then put the head into the die, then fix the head of the wire to the wire drawing machine, then start pulling. After the wire comes through the die, all the wire becomes the diameter of 3.8mm.

  • Nail knife grinder: because after 1-2 days cutting, the nail knife installed on the wire nail making machines will become blunt, then you can use the nail knife grinder to grind the nail knife to make it sharp again.

  • Gripping Dies: Machines are provided with round dies having 8 or 10 nail holding grooves

  • Cutting Die: For cutting nails and making point after the head & shank are formed Diamond, Chisel, Round, Long or Blunt shaped Points can be made by grinding the tools appropriately

  • Header Dies: Used for forming a nailhead Chequered or Plain Heads can be formed with these dies

  • Nail Cutter and Die Grinder (supplied with a motor, Emery wheels and Pedestal Stand)

  • Optional Accessories: Additional sets of Tooling (Set of Gripping Dies, Cutting Tools, and Header Dies)

  • Standard Accessories: Electric Motor, Starter, Belts, One set of Tooling, Wire Stand and Hand Operated Lubricating Pump

  • Further DETAILS OF Z94 6C NAIL MAKING MACHINE

AUXILIARY EQUIPMENT FOR Z94 CHINA NAIL MAKING MACHINE

  • Punch pin and nail Moulds.

  • Connecting welding machine: in case the wire breaks during drawing, you can use the butt welding machine to weld the broken wire together, then continue the drawing. without this machine, if the wire breaks, you need to sharpen the wire head again and do all things from the start.

  • Nail Polishing Drums (with a motor, starter, and belts)

  • Wire Drawing Machine (WE OFFER A COMPLETE WIRE DRAWING LINE TO DRAW NAIL WIRE IN VARIOUS DIAMETERS FROM 6 mm or 5.5 mm WIRE RODS)

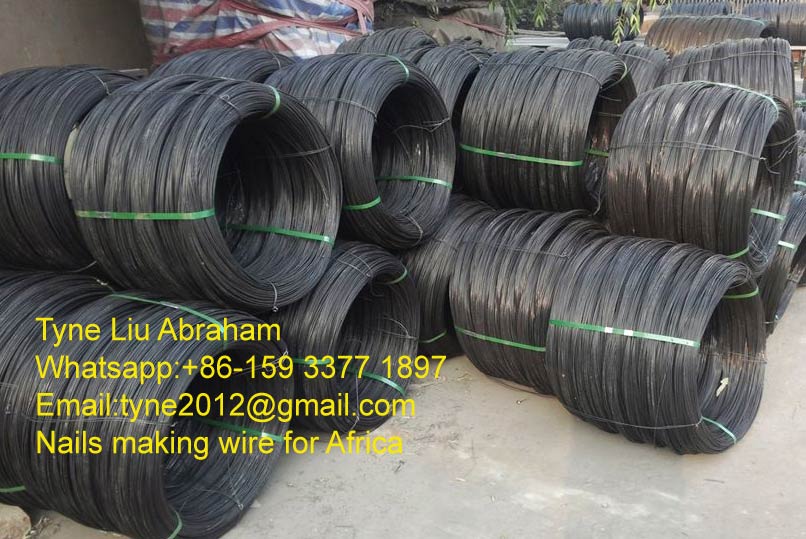

HOW TO GET RAW MATERIALS?

  • Normally, you can buy from the local market or steel company.

  • If they can sell low carbon iron wire rod Q195,6.5mm/5.5mm. You can buy and use a wire drawing machine to draw to the thickness you need.

  • If better, you can get the thickness nails making wire you need.

  • And if local no wire rod and nails making wire, better import from China for any type of them.

  • What should import, depend on how is the quantity you want to produce daily output.

  • If quantity not much, you can just import nails making wire.

  • But if your quantity huge, better buy a wire drawing machine to draw for yourself using.

  • Then you can start a Fully automatic nail making machine imported from China to make nails.
