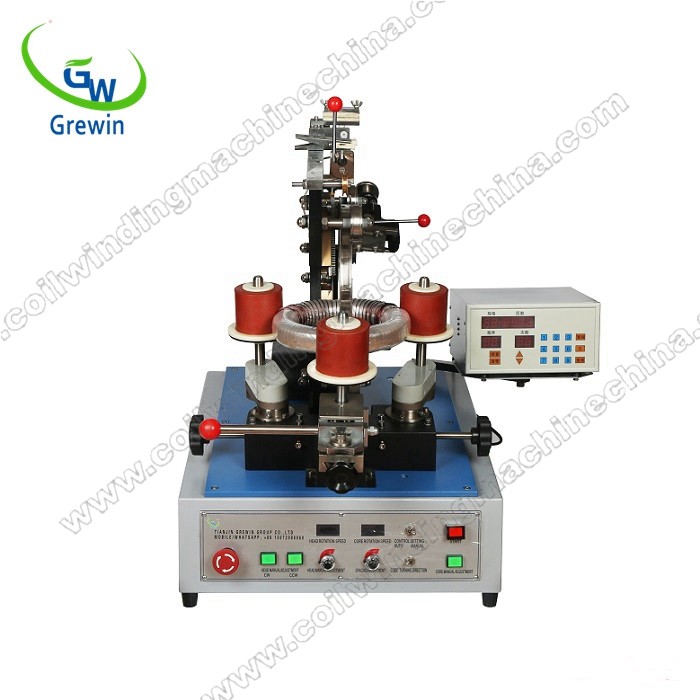

NAME：GWM-0913 Automatic Toroid Coil Winding Machine
SPECIFICATION:
Wire diameter | 0.07—0.23 | Max.winding speed | 800rpm |
Max.final coil.O.D | φ60（110） | Wire spacing | Proportional linkage |
Min.final coil.I.D | φ9 | Supply voltage | AC 220V（50Hz） |
Max.finalcoil height | 30 | Mechanical dimensions | 550×500×580 |
Controller storage capacity Programs | 29 set | Weight | 83kg |
FEATURES:
Automatic Toroid Coil Winding Machine are fast machines for mass production of small inductive components.
Automatic core index function.

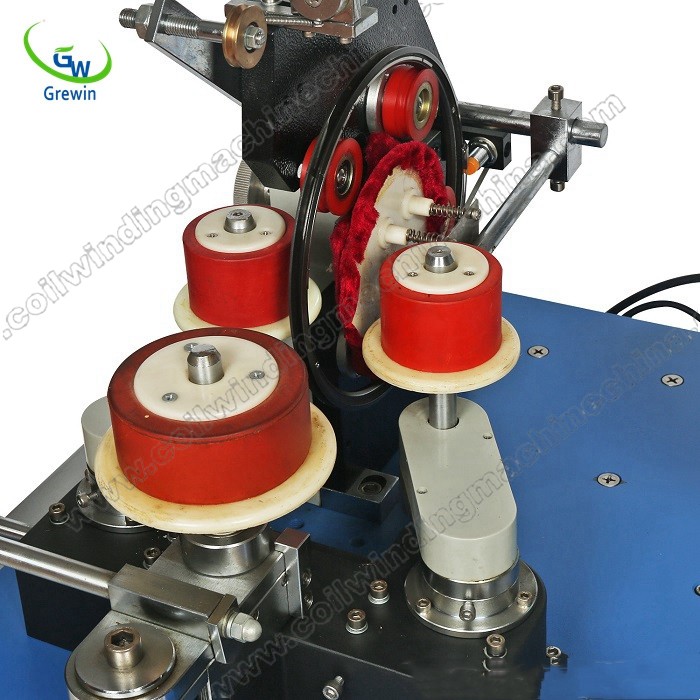

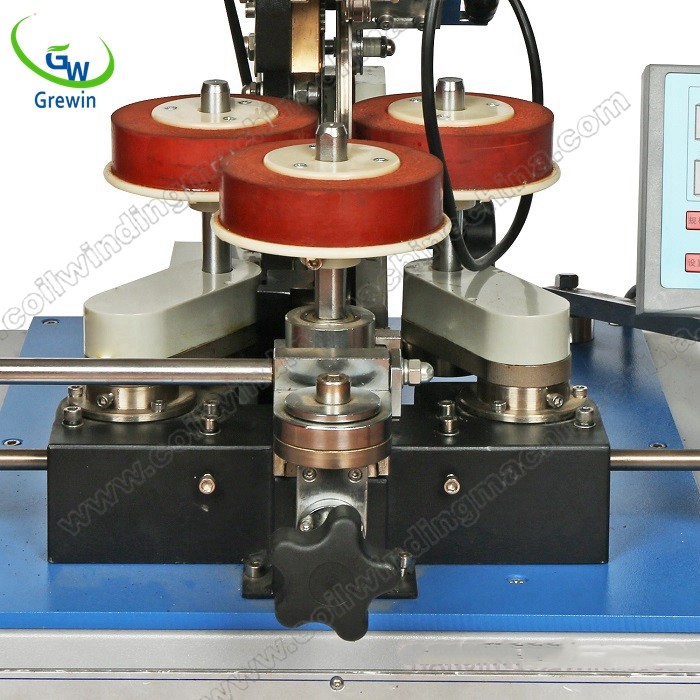

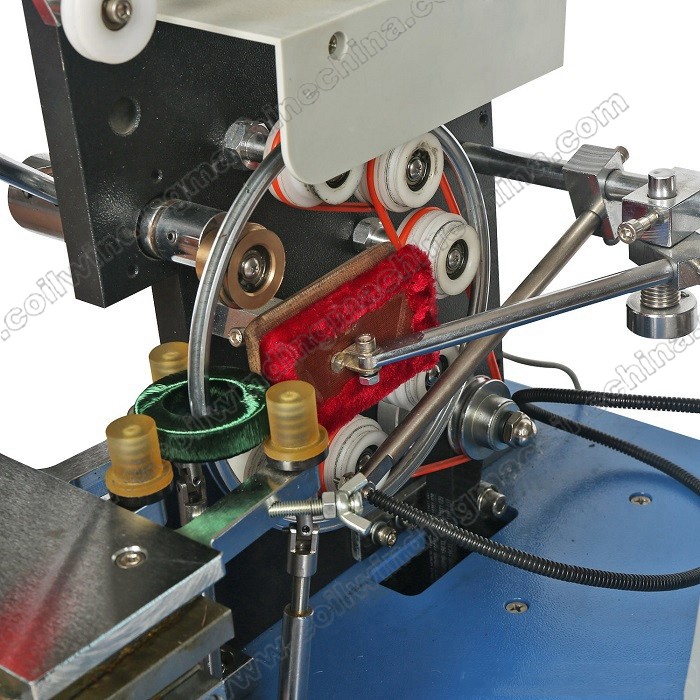

Automatic Toroid Coil Winding Machine utilize slider heads and belt heads to accommodate a wide range of core sizesand wire diameters.
Automatic Toroid Coil Winding Machine can Quick change winding heads.
Main drive and core rotation are accomplished by powerful,long life AC motors and proportionally linkedvariable speed controllers.
Push button, on-off footswitch or variable footpedal operation.
ADVANTAGES:
Complete range of articles, large range of wire diameter, Multipurpose
Good compatibility, parts are interchangeable
High stability, part quality guarantee
High production efficiency, no wire breaking at high speed winding
Easy to operate, High learnability
Enquiries can be quoted one day service
Automatic Toroid Coil Winding Machine has Complete specifications and data
APPLICATION:
Toroid Winding Machine is the best suited to toroidal inductor, toroidal transformers,toroidal current transformers,toroidal coil, toroid choke coil, power inductors,UPS inductor,converter inductor and heavy toroidal core etc.
