This machine is suitable for the packaging of granular materials, with a wide range of packaging; It can reduce labor and management costs, and there is no direct contact with people in the packaging process, so as to avoid man-made pollution. The replacement specification is easy to adjust and can be replaced within ten minutes.

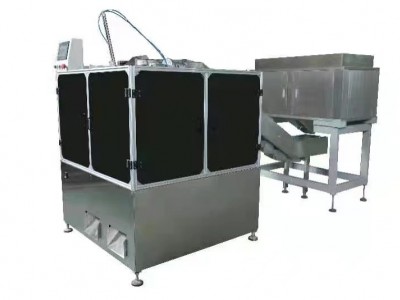

The machine is measured by four head packing scale and loaded by tipping bucket.
The packaging machine is a bag feeding packaging machine integrating electromechanical integration, photoelectric detection, automatic bag taking, blanking, sealing and coding. It is tracked by electric eye and controlled by microcomputer to ensure the stability of packaging weight and sealing.
Workflow：
Take the bag -- open the bag -- fill the material -- heat seal -- print the production date
Major electrical brands：
Serial number | Accessories | Brand |
1 | touch screen | 雷赛 |
2 | servo motor | 雷赛 |
3 | PLC | 雷赛 |
4 | servo controller | 雷赛 |
5 | Reducer | 普莱特 |
6 | Temperature control table | OBYB |
7 | solid state | 美格尔 |
8 | relay | 欧姆龙 |
9 | Frequency converter | 英威腾 |
10 | Air switch | LS |
11 | Vacuum pump | 好凯德 |
12 | Cylinder | 亚德客与国产品牌 |
Technical parameter：
model | YC-250 |
packaging | Self standing bag, handbag, zipper bag |
wide | 70-250mm |
long | 100-300mm |
weight | 3-500g |
speed | 12-20 |
power | 2KW |
Scope of application | grain |
Machine size/mm | 1400*1200*1700高 |
