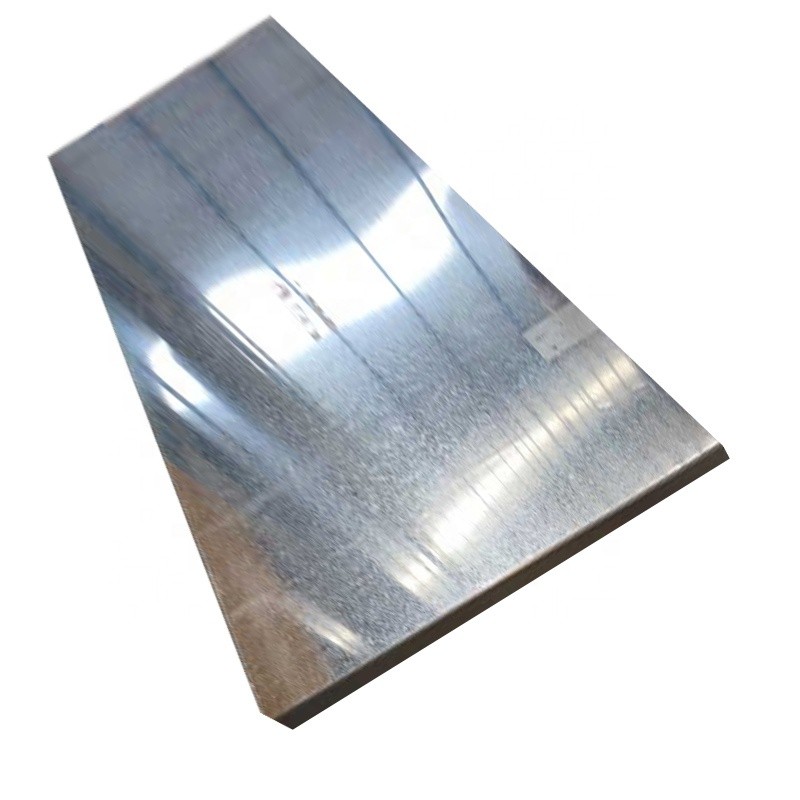

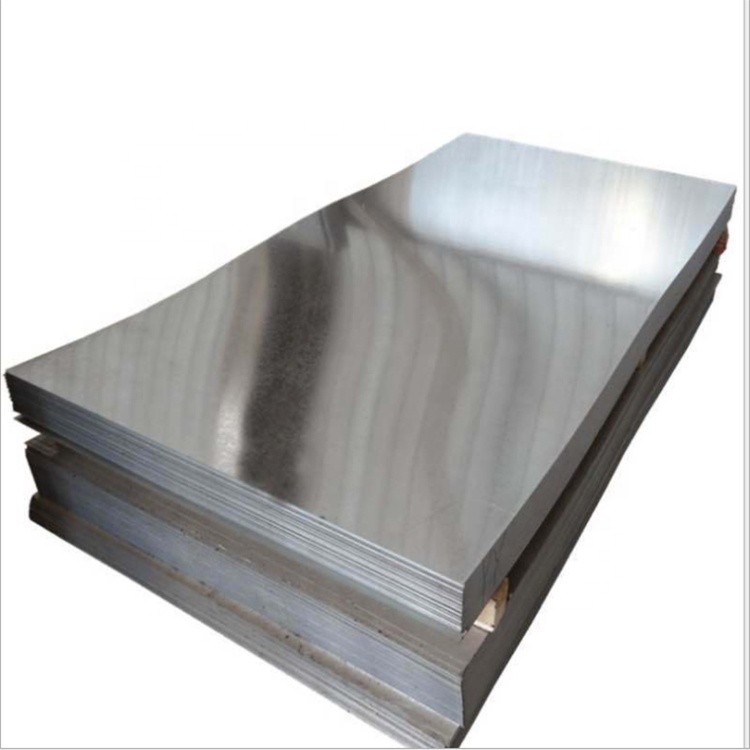

Galvanized Steel Sheet - Corrosion-resistant metal for Industrial Use
Galvanized steel sheet is a type of steel sheet that has been coated with a layer of zinc to enhance its corrosion resistance. This protective layer is applied through a process called galvanization, which typically involves immersing the steel in molten zinc or applying a zinc coating through electroplating. Galvanized steel sheets are known for their durability, strength, and resistance to rust and corrosion, making them ideal for use in a variety of applications such as roofing, automotive parts, and construction materials. The surface of galvanized steel sheets often features a characteristic spangled appearance, though it can also be smooth depending on the manufacturing process. The sheets are available in various thicknesses and sizes, and they can be easily fabricated and welded, offering versatility in design and construction projects.
Specifications
| Product Name | Galvanized Steel Sheet/Plate |
| Length | 1000-12000mm or as required |
| Thickness | 0.12-6mm or as required |
| Width | 600-1250mm or as required |
| Steel Grade | Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490 |
| SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ | |
| CR80 (550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80 (550); or as required | |
| Type of Coating | Hot Dipped Galvanized Steel (HDGI) and Cold Dipped Galvanized Steel (CDGI) |
| Zinc Coating | 30-275g/m² |
| Surface Treatment | Galvanized |
| Spangle | Normal Spangle Coating (NS), Minimized Spangle Coating (MS), Spangle-Free (FS), Big Spangle |
| Processing Service | Bending, Welding, Decoiling, Cutting, Punching |
| Technical Standard | ASTM, BS, DIN, GB, JIS, AISI, ASTM, DIN, TUV, BV, SUS, etc |
| Type | Sheet/Plate/Panel |
