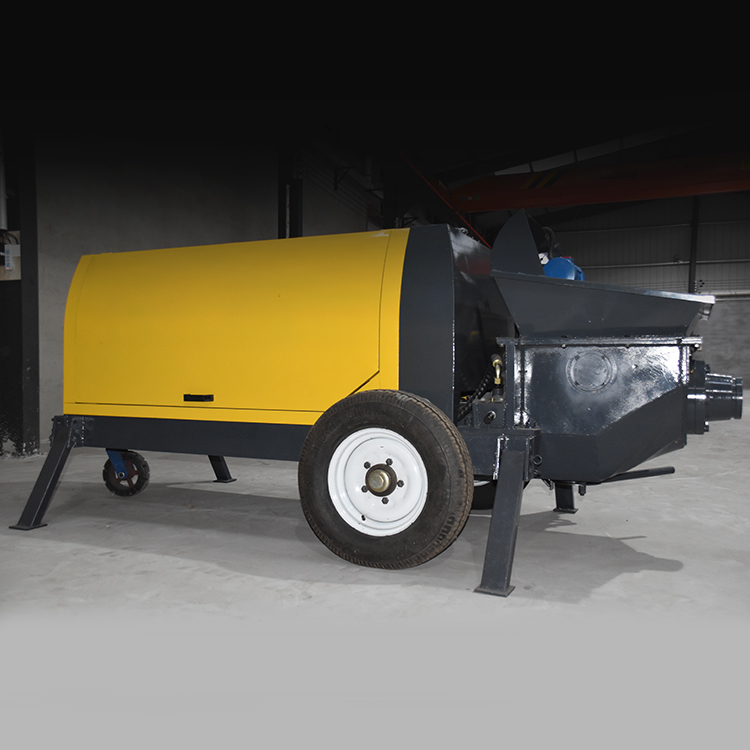

BS-30 concrete pump
Summary: technical parameters: slurry output 15m ³- 20m ³/ H Theoretical delivery pressure 10mpa Distribution valve form S Pipe valve outlet diameter Ф 125mm feeding height 800mm vertical conveying distance 100m horizontal conveying distance 200m rated voltage 380v motor model Y200L-4 main motor power 37KW
| technical parameter | |
| Propeller output | 15m³-20m³/h |
| Delivery pressure | 10mpa |
| Distribution valve type | SPipe valve |
| Outlet diameter | Ф125mm |
| Feeding height | 800mm |
| Vertical conveying distance | 100m |
| Horizontal conveying distance | 200m |
| Rated voltage | 380v |
| Motor model | Y200L-4 |
| Main motor power | 37KW |
| Rated revolution | 1440r/min |
| Hydraulic oil circuit type | Open loop |
| Maximum oil pressure of the system | 20Mpa |
| Hydraulic tank volume | 80L |
| Maximum allowable aggregate size | 15mm |
| Inner diameter of conveying pipe | Ф100/Ф80/Ф75 |
| weight | 1600kg |
| Towing speed | ≤8km/h |
| Overall dimension | 3600×1200×1200mm |
BS-25 concrete pump
Summary: technical parameters: slurry output 8m ³- 10m ³/ H Theoretical delivery pressure 10mpa Distribution valve form S Pipe valve outlet diameter Ф 125mm feeding height 800mm vertical conveying distance 60m horizontal conveying distance 150m rated voltage 380v motor model Y200L-4 main motor power 30KW
| technical parameter | |
| Propeller output | 8m³-10m³/h |
| Delivery pressure | 10mpa |
| Distribution valve type | SPipe valve |
| Outlet diameter | Ф125mm |
| Feeding height | 800mm |
| Vertical conveying distance | 60m |
| Horizontal conveying distance | 150m |
| Rated voltage | 380v |
| Motor model | Y200L-4 |
| Main motor power | 30KW |
| Rated revolution | 1440r/min |
| Hydraulic oil circuit type | Open loop |
| Maximum oil pressure of the system | 20Mpa |
| Hydraulic tank volume | 80L |
| Maximum allowable aggregate size | 15mm |
| Inner diameter of conveying pipe | Ф80/Ф75 |
| weight | 1200kg |
| Towing speed | ≤8km/h |
| Overall dimension | 3500×1200×1200mm |
BS-30 concrete pump
Summary: technical parameters: slurry output 15m ³- 20m ³/ H Theoretical delivery pressure 10mpa Distribution valve form S Pipe valve outlet diameter Ф 125mm feeding height 800mm vertical conveying distance 100m horizontal conveying distance 200m rated voltage 380v motor model Y200L-4 main motor power 37KW
| technical parameter | |
| Propeller output | 15m³-20m³/h |
| Delivery pressure | 10mpa |
| Distribution valve type | SPipe valve |
| Outlet diameter | Ф125mm |
| Feeding height | 800mm |
| Vertical conveying distance | 100m |
| Horizontal conveying distance | 200m |
| Rated voltage | 380v |
| Motor model | Y200L-4 |
| Main motor power | 37KW |
| Rated revolution | 1440r/min |
| Hydraulic oil circuit type | Open loop |
| Maximum oil pressure of the system | 20Mpa |
| Hydraulic tank volume | 80L |
| Maximum allowable aggregate size | 15mm |
| Inner diameter of conveying pipe | Ф100/Ф80/Ф75 |
| weight | 1600kg |
| Towing speed | ≤8km/h |
| Overall dimension | 3600×1200×1200mm |
