- Production Capacity:
- 300-2000kg/h
- Final flake size:
- 50-80mm
- Dimension(L*W*H):
- 50*5*6m
Product Overview
Waste PET Bottles PET Flakes Recycling Bottle Machine Plastic Washing Line
Product Description
Baler opener
Motor power for mixing: 4 kw*2 Motor power for convey belt: 4 kw Processed capacity: 1000-3000 kg/h Size of processing package:
<1400*1600*1000mm

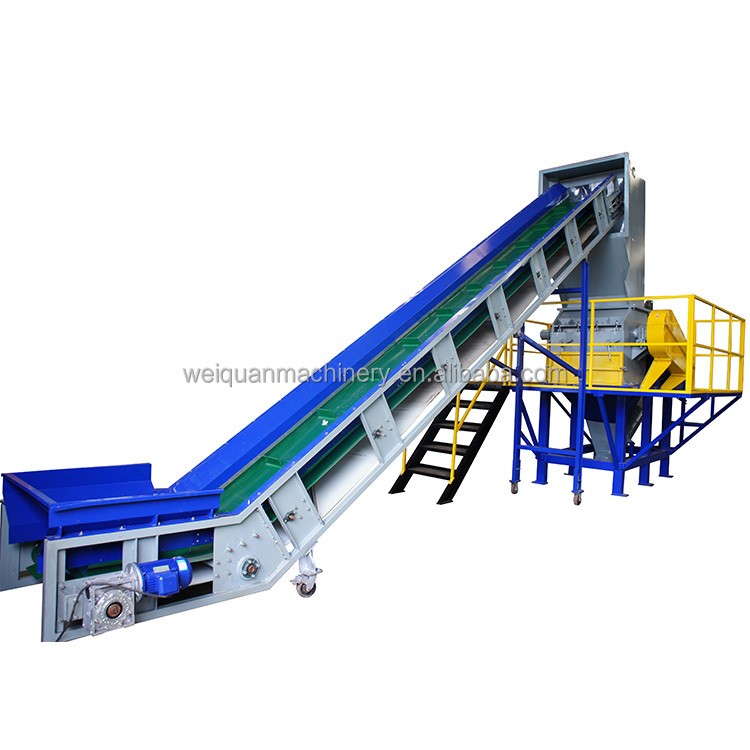

Belt Conveyor
Transport PET bottle into rolling separator
Motor power 2.2 kw, with inverter control. Length of belt:4500 mm Width: 800 mm Install isolation stick against-slide on the
surface of belt. Adjust height of conveying belt freely. Small moving wheels are flexible and convenient.
Rolling Separator
Diameter of barrel:1500 mm Length of barrel:4500 mm Motor power:3 kw Rotary speed:<130 RPM Weight: 1800kg Basic material of
barrel Carbon steel coated with metal Zn
Belt Conveyor
Transport PET bottle into label remover.
Motor power 2.2 kw, with inverter control. Width 800 mm Length of belt 4500 mm Install isolation stick against-slide on the
surface of belt. Adjust height of conveying belt freely. Small moving wheels are flexible and convenient.
Label Remover.
Effectively remove labels on the bottle surface.
Motor power 18.5 kw Blower motor 3 kw* 2 Length of the shaft 4000 mm The diameter of the shaft 600 mm Ratio for label removing
80%-90%for pressing bottle 90%-95%for non- pressing bottle
Manual Sorting Table with metal Detector
Manually select bottles that do not meet the requirements.
Width of belt :800 mm Length of sorting table:8000 mm Height:1200 mm Motor power 3 kw, with inverter control.
Shredder & Crusher
Divide large-size raw materials into relatively uniform small-size raw materials through shredding and crushing
Crushing bottle to small flakes.
Screw Loader
Effective length:4000 mm Screw diameter:350 mm Rotating speed:35 RPM Motor power :3 kw Material for contact with PET flake
Stainless steel 304 There will be 1000mm length mesh at the bottom.
High Speed Friction Washer
Preliminarily remove stains and save the amount of hot water.
Motor power: 37 kw Rotary speed of screw:2200 RPM Material for contact with PET flake Stainless steel 304 The machine inside with
water spray system. With a water tank to collect waste water. The paddle inside the friction washer
Hot washing tank
In the case of high temperature and the presence of chemicals, remove oil stains and other dirty things that are difficult to
clean.
Pot diameter φ1800mm Stirring motor power 7.5 kw Heating way Electricity or steam heating Height 2100 mm Material for contact
Floating Washer
Motor power of screw loader 3 kw, with inverter control. Motor power of roller: 2.2 kw Quantity of roller: 2 sets Tank
Dewatering Machine
Most of the water on the surface of bottle flakes is removed by centrifugal force, dehydration rate above 95%.
Label Separator
Removing the remaining label and dust in PET flakes.
Automatic butterfly valve :1.5 kw
Air blower:4 kw
Pipe dry machine
With hot air to dry the bottle flakes.
Packing silo
Function: flakes storage and packing.
Motor power of loading blower: 7.5 kw
Intelligent Control System
With CE/CSA/TUV/SGS/ISO standard, all parameters can be set on the touch screen. 1.Electric control component(Schneider), e
2.All electrical units: LS, Schneider, ABB.
Final bottle flakes
