- Production Capacity:
- 300-2000kg/h
- Final flake size:
- 50-80mm
- Dimension(L*W*H):
- 50*5*6m
Product Description

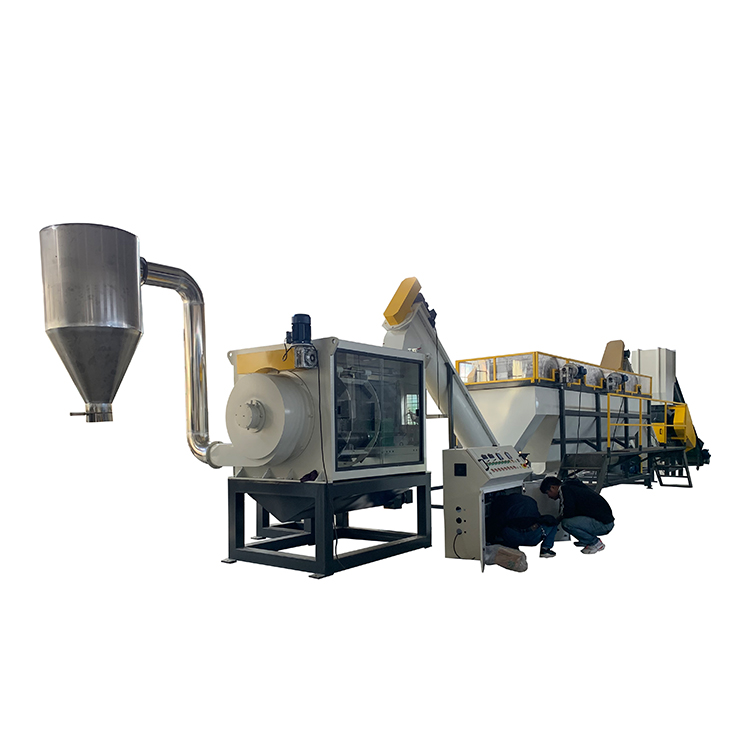

Plastic PP PE Scraps Flakes Recycling Crushing Washing Drying Machine Line For sale
Production Application:
This Waste plastic PP PE Film recycling washing machine is designed and manufactured by WeiQuan machine, which is widely used for waste plastic PET material, such as water bottles, pet sheet, pet containers, etc.
The waste dirty material go through delabelling, crushing, washing, drying, and collecting process will turn to be clean flakes for reuse.
This pet bottle washing machine can be displayed "L" or "U" shape according to clients' workshop.
We can also customize the washing line components according to client's material and product requirement.
Process flow
Flow A:
Belt conveyer+ metal Detector→ Shredder/ Crusher →Low speed friction washer → Hot washing tank → Screw conveyer→High speed friction washer→Floating washing tank → Dewatering machine→Hot air drying system→Silo
Flow B:
Belt conveyer+ metal Detector→ Shredder/ Crusher →Low speed friction washer → Hot washing tank → Screw conveyer→High speed friction washer→Floating washing tank → Squeezing machine→Silo
Machine parameter
Model | Capacity | Installed Power | Steam Use | Man Power | Area Required |
WQ-300 | 250-300 KG/H | 150 KW | 150KG | 3 persons/ shift | 29*10*5m |
WQ-500 | 400-500 KG/H | 250 KW | 200KG | 3 persons/ shift | 35*12*6m |
WQ-1000 | 800-1000 KG/H | 440 KW | 300KG | 4 persons/ shift | 50*12*6m |
WQ-1500 | 1300-1500 KG/H | 540 KW | 450KG | 4 persons/ shift | 70*15*6m |
WQ-2000 | 1800-2000 KG/H | 700 KW | 600KG | 4 persons/ shift | 90*15*6m |
Equipment List
Final products
Company Profile
Zhangjiagang WeiQuan Machinery Co., Ltd.
Our company is located in the Zhangjiagang City, which in the Shanghai economic circle. Our company specializes producing plastic recycling and extrusion machinery.
The recycling part includes but is not limited to PE/PP/PET waste plastic crushing, washing and granulating machines, and also auxiliary machines.
The extrusion part includes but is not limited to PVC/PE/PPR pipe machine, PVC/PE/WPC profile machine and also auxiliary machines.
We have our own R&D team and factory. All equipment is constantly updated to meet customer requirements. The equipment is exported to more than 100 countries and regions overseas and is well received by users. We uphold all the tenet of setting up factories based on the interests of customers, treat people honestly, make machines seriously, serve every customer with heart, support customers' various tasks, and achieve a win-win situation is our ultimate goal.
FAQ
Q1: Are you manufacturer or trade company?
A1: We are a professional manufacturer for producing machinery over 10 years, We can provide customized service.
Q2: What can i buy from you?
A2: Plastic crusher, Plastic Washing Recycling Line, Plastic Pelletizing Recycling Line, Pet Bottle Recycling Line, Plastic Squeezing Machine, Plastic Pipe/ Profile Extrusion Line and other customized services.
Q3: How is the quality of your product?
A3: Our products are manufactured according to national and international standard, and we have a test on every machine before delivery.
Q4: How about the price?
A4: We are a professional manufacturer and be able to provide you with the lowest price than market one. Please contact with us in time, and we will give you the best quotation.
Q5: What if the machine is damaged?
A5: One year warranty and all-round after-sales service.
Q6: What basic terms can you accept?
A6: Accepted Delivery Terms: FOB, CFR, CIF, EXW
Accepted Payment Currency: USD, EUR, CNY
Accepted Payment Type: T/T, L/C.
