Brand:HNSK
Model:FSFJ1×10×70
Capacity:1.5-2 t/h
Power:0.75kW
Min quantity:1台
Quantity:20台
Deliver:In 5 days

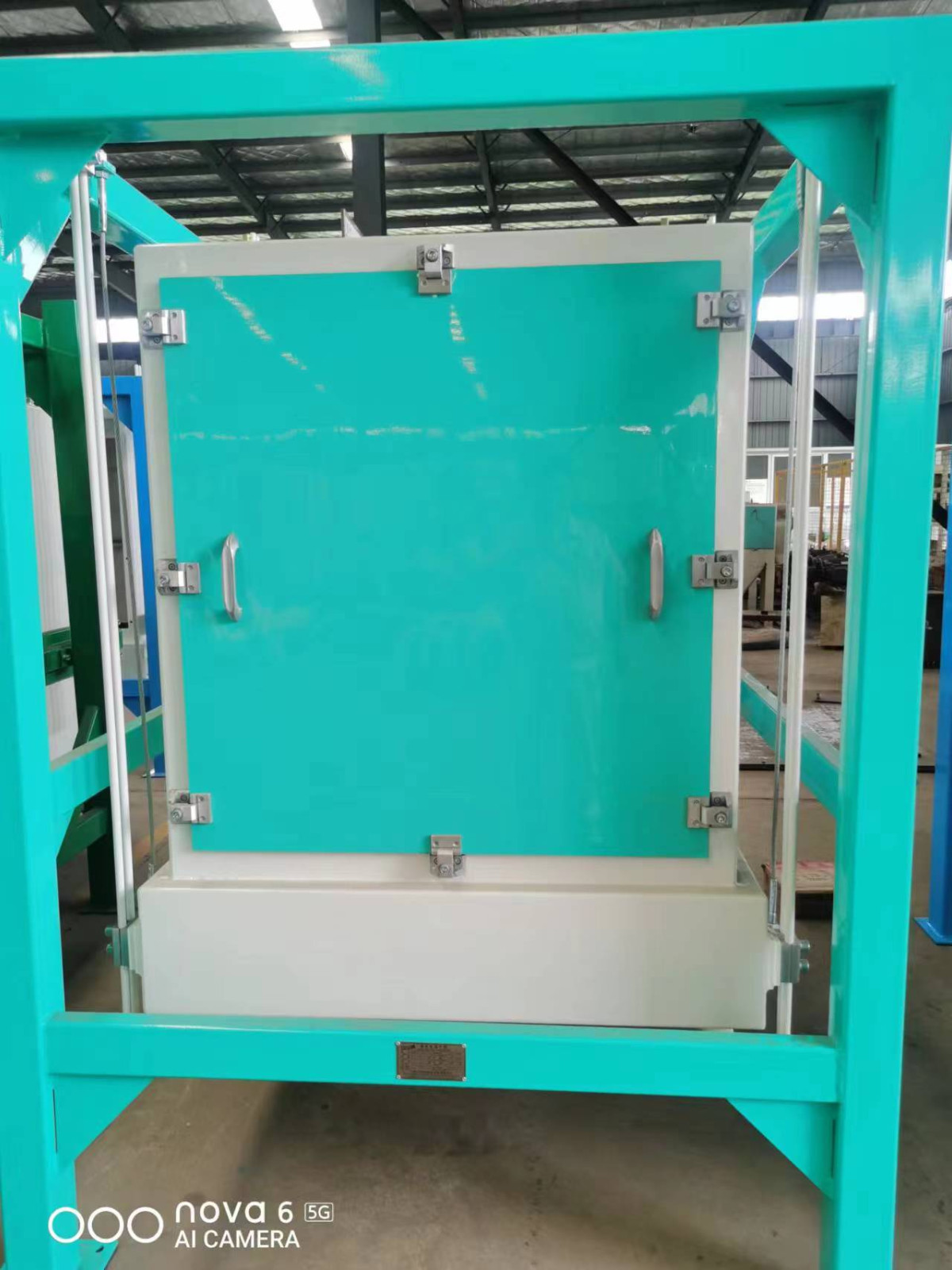

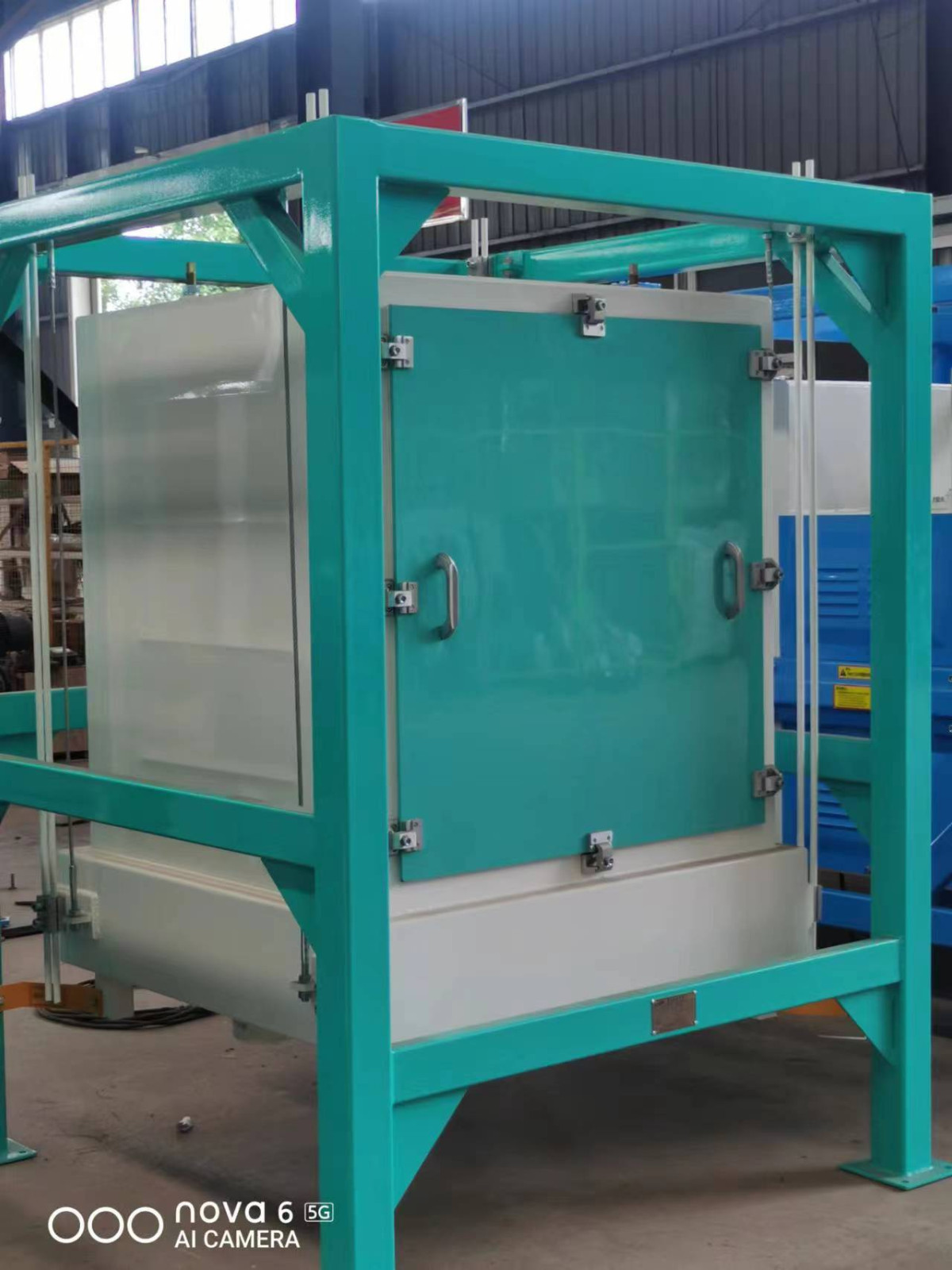

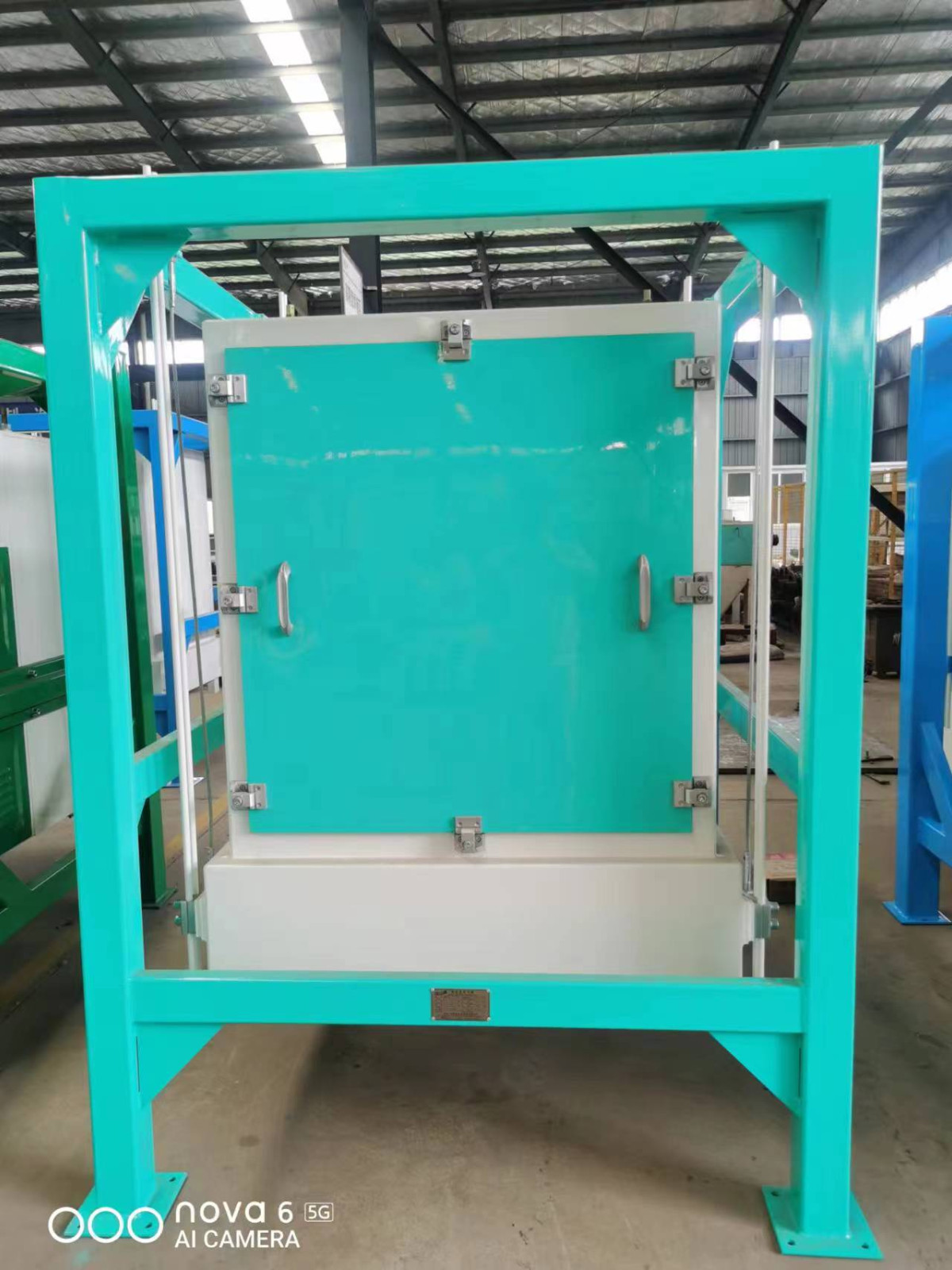

FSFJ series single bin plansifter for wheat flour
Product Applications
It is mainly used for inspecting flour in flour mills, sieving and classification after grading. There are common type and closed type to meet customer’s needs.
Product Features
l Smaller size, strong applicability and more flexibility, especially suitable for installation in small workshops;
l The closed type has larger screening area and better sealing performance;
l Wooden double-sided plastic-coated sieve grids, with 6 to 12 grids configured according to different screening requirements;
l The sieve grid is pressed vertically and horizontally to ensure that the sieve grid does not loosen, shift or leak;
Technical Parameters
Model | Sifting Area(m²) | Capacity(t/h) | Power(kW) | Weight(kg) | Dimensions(mm) |
FSFJ1×10×63 | 2.5 | 1-1.5 | 0.75 | 320 | 1130×1030×1650 |
FSFJ1×10×70 | 2.8 | 1.5-2 | 0.75 | 400 | 1200×1140×1860 |
FSFJ1×10×83 | 4.5 | 2-4 | 0.75 | 470 | 1380×1280×1860 |
FSFJ1×10×100 | 7.0 | 3-6 | 1.1 | 570 | 1580×1480×1960 |
FSFJ1×10×120 | 9.8 | 6-10 | 1.5 | 800 | 1960×1890×2260 |
FSFJB1×10×83 | 5.8 | 4-7 | 0.75 | 880 | 1445×1445×2250 |
FSFJB1×10×100 | 8.5 | 5-8 | 1.1 | 980 | 1655×1655×2260 |
FSFJB1×10×120 | 12 | 6.5-10 | 1.5 | 1200 | 1904×1904×2260 |
