Brand:SUZHOU PHARMA
Product name:HVAC System refrigerating machine
Type:Customizable
Application:Factory, hospital, laboratory
Min quantity:1件
Quantity:500件
Deliver:In 30 days

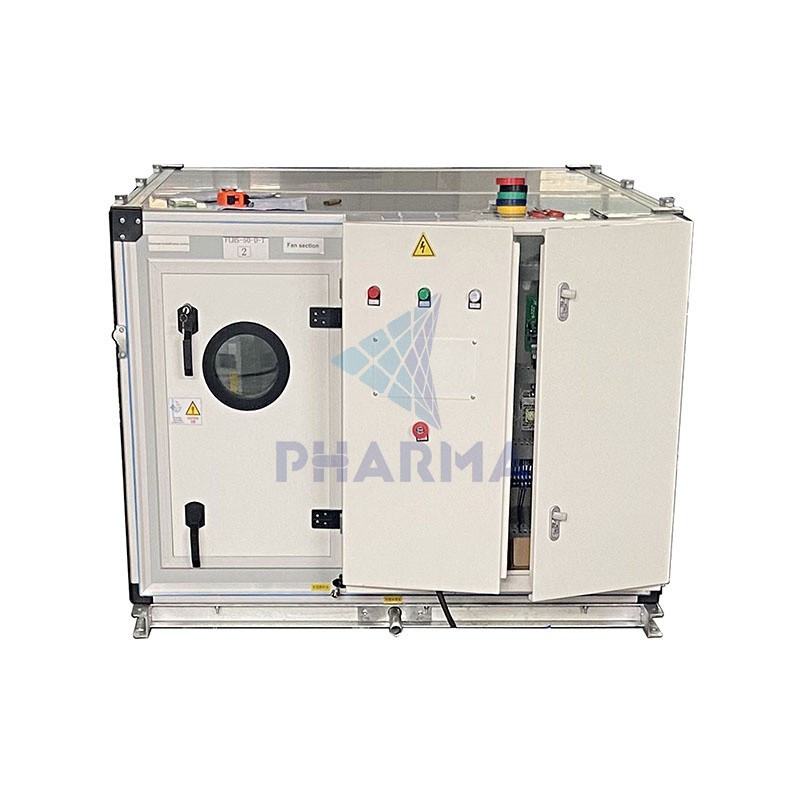

Intelligent Control Console
• Auto control each section of the unit to make sure the temperature, humidity and cleaness
• High quality and international brand electrical elements to ensure the unit operate more stable and energy-saving
• Screen touch panel, with setting, display and memory function

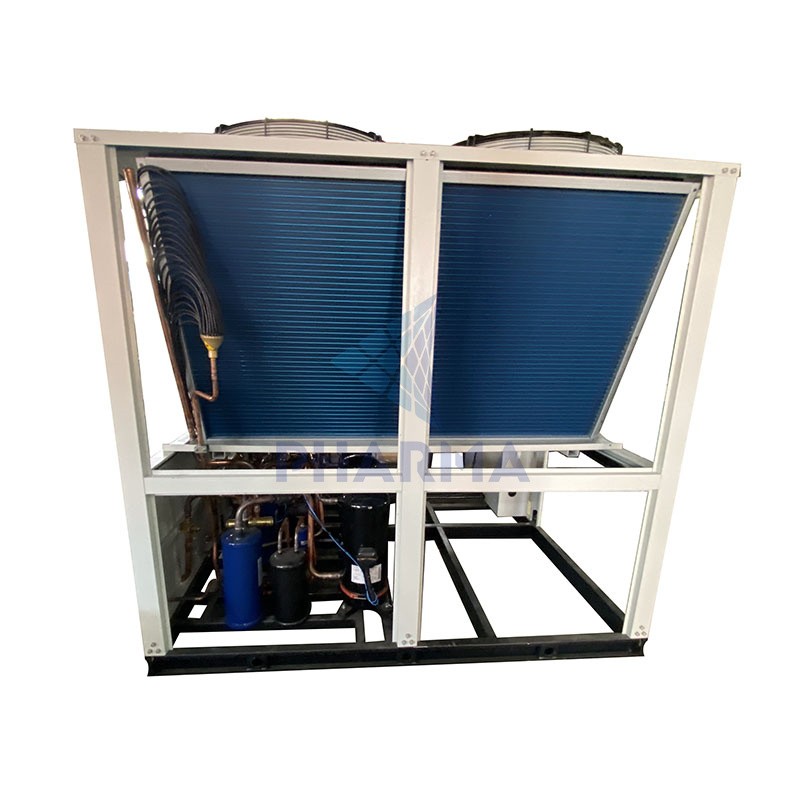

Energy Saving Refrigerating System
• Advanced design, low running noise, energy saving, safety and long service life
• Multi-circuits design, running reliably and energy-saving
Famous Brand Blower and Motor
• Fan selection based on the air flow and air static requirement is done by fan selection software
• Direct driven/ belt driven, forward curve/ backward curve centrifugal fans, and fan is available for option
Vibration Eliminator
• To reduce the transmission of vibration and noise, fan and motor are installed on an independent complete base frame
• The complete base frame is isolated by deflection type spring isolators
High Efficiency Cooling and Heating Coil
• All coils calculation and selection is done by selection software to match the required conditions
• Large coil face area ensures maximum heat transfer rate
Energy Saving Electric Heater
• Stable electric heating capacity
• Energy saving and safety
• Anti-corrosion
| PH-Series-Roof Top HVAC | 10 | 15 | 18 | 20 | 25 | 30 | 35 | |||
Specification | Cooling capacity 1* | kW | 10.5 | 15.0 | 18.5 | 21.0 | 26.3 | 29.8 | 35.0 | |
Heating capacity 2* | kW | 11.5 | 15.9 | 19.5 | 22.1 | 27.6 | 32.6 | 37.1 | ||
Supply air 3* | m3/h | 1800 | 2400 | 2900 | 3500 | 4500 | 5000 | 5800 | ||
Static pressure 3* | Pa | 100 | 150 | 150 | 180 | 200 | 250 | 250 | ||
Noise 4* | dB(A) | 60 | 60 | 62 | 62 | 65 | 65 | 68 | ||
Power | 3N-380V-60Hz | |||||||||
Total capacity | 3.9 | 5.74 | 7.0 | 8.27 | 9.96 | 11.0 | 14.15 | |||
Color | White | |||||||||
cooling system | Compressor | Type | Efficient scroll closed | |||||||
Quantity | 1 | 1 | 1 | 1 | 1 | 1 | 2 | |||
Supply air fan | Type | Low noise centrifugal type | ||||||||
Capacity | kW | 0.37 | 0.55 | 0.75 | 0.75 | 1.1 | 1.5 | 2.2 | ||
Evaporator | Type | Inner grooved copper tube and aluminum fin | ||||||||
Fin type 5* | Slotted fin hydrophilic aluminum fin | |||||||||
Condenser | Type | Inner grooved copper tube and aluminum fin | ||||||||
Fin type 5* | Rippled hydrophilic aluminum fin | |||||||||
Condenser fan | Type | Low noise axial type | ||||||||
Quantity | 1 | 1 | 1 | 1 | 1 | 1 | 2 | |||
Refrigerant | Refrigerant | R22/R407C | ||||||||
Refrigerant control | External balance type thermal expansion valve | |||||||||
Air filter | Initially effect plate filter | |||||||||
Weight | kg | 200 | 230 | 260 | 300 | 550 | 600 | 850 | ||
