Brand:HOYITE
Model number:HYT-68/DX68
Crimping range:1/4" to 2"
Voltage:380V/220V
Min quantity:1件
Quantity:10件
Deliver:In 3 days
Buy

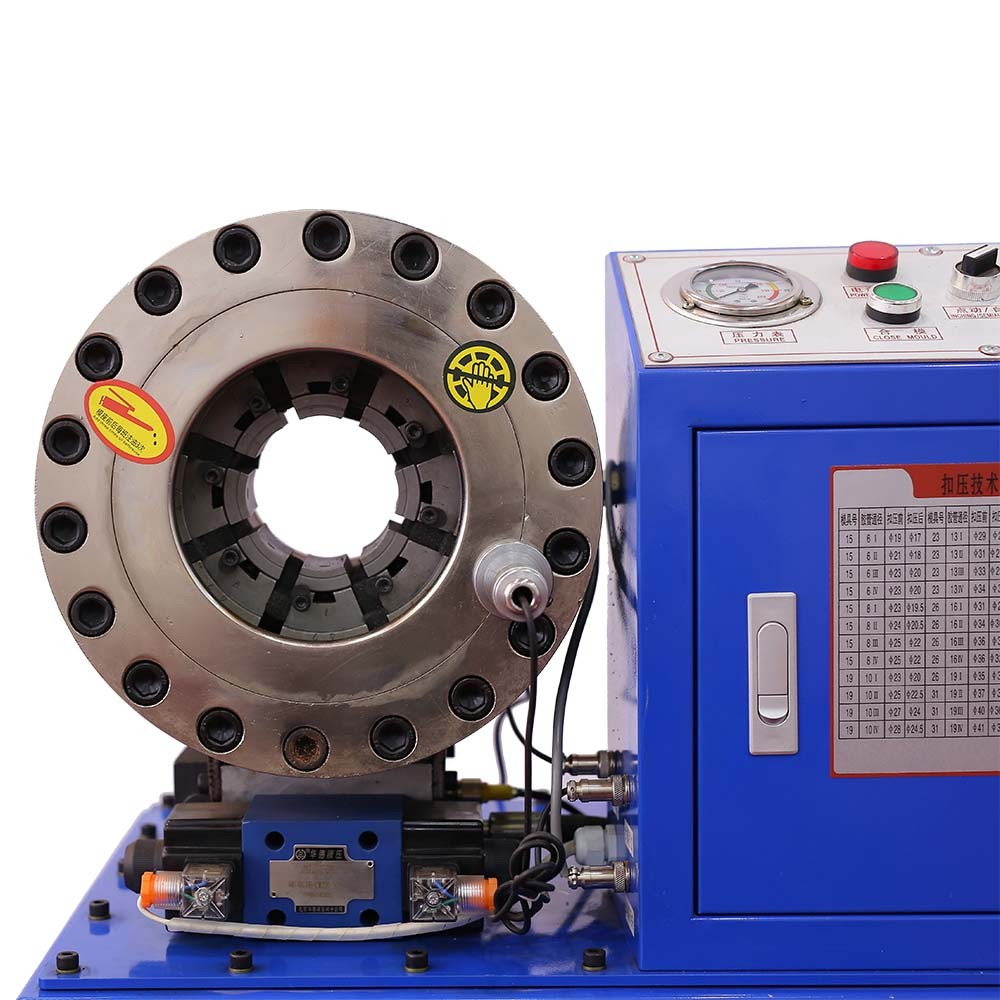

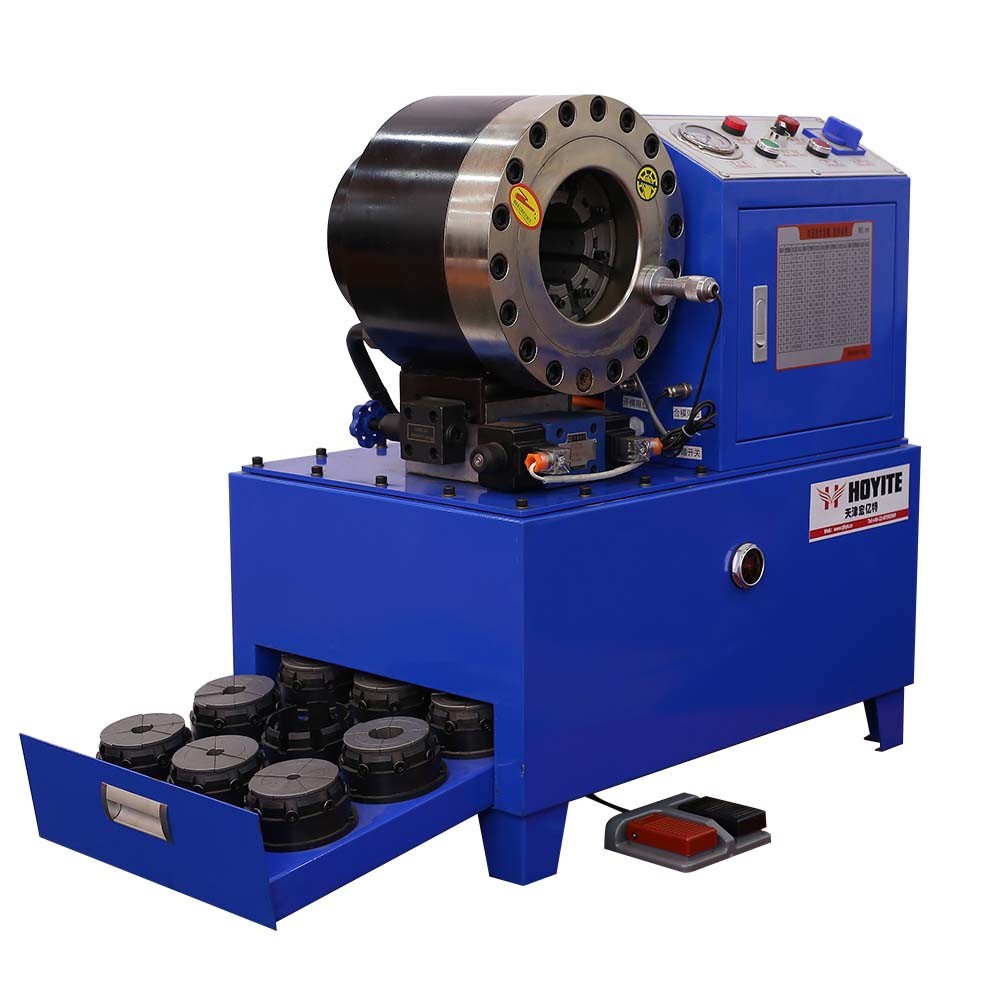

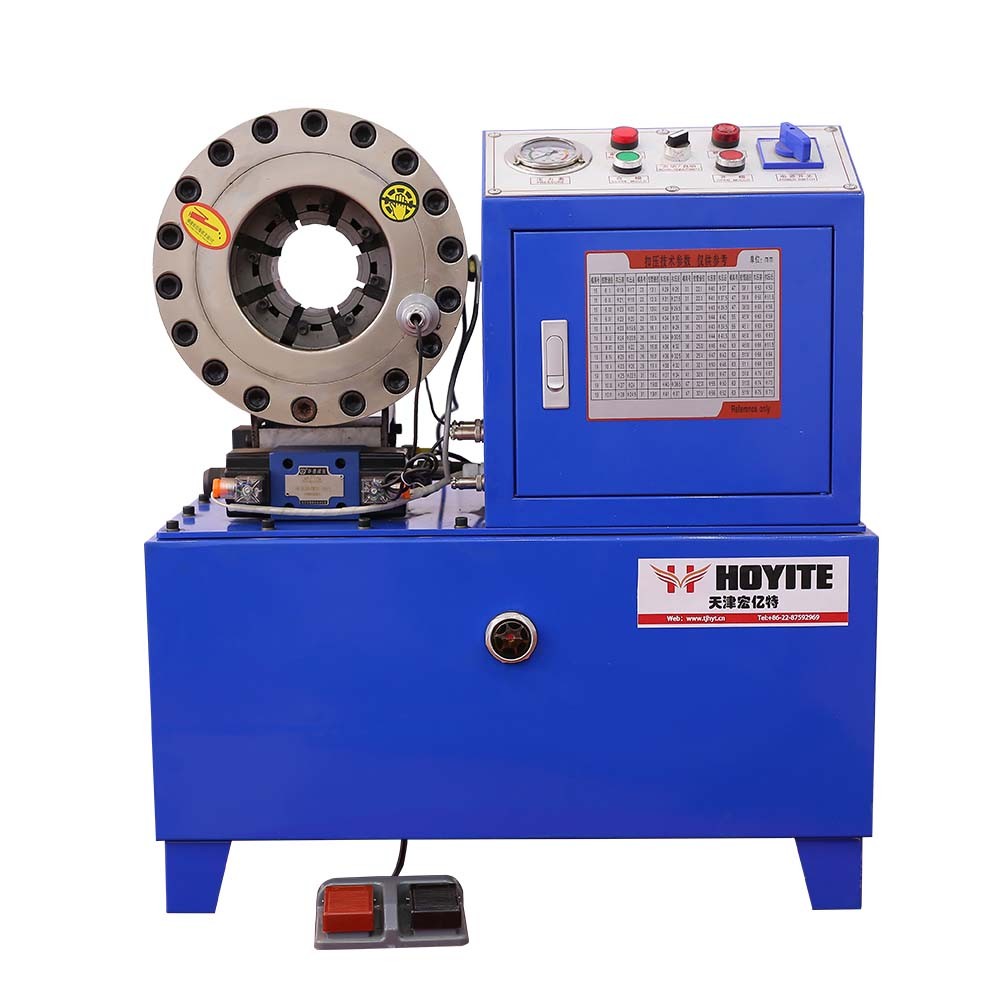

| Products Name | low pressure hose crimping machine |
| Model | DX-68 |
| Crimper range | 1/4″ to 2″ or 6mm-51mm |
| Voltage&motor | 220V/3kw |
| Opening without dies | 114mm |
| Hydraulic oil box | 40L |
| Dies of quantity | 10sets |
| Systematic pressure | 31.5MPa |
| Largest pressure | 460T |
| Scale accuracy | 0.02mm |
| MOQ | 1Set |
| Dimension | 670*500*820mm |
| Weight | 260kg |
| Warranty | 1year |
We are engaed in and produce all kinds of hydraulic hose crimping machine , hose cutting machine and hose skiving machine etc. Customized service is acceptable .
Main Feature :
1>compact, robust design.
2>Fast, powerful and accurate crimping even 4 inch 4SH hoses.
3>Large die opening – capability of handling all shapes of rubber hose.
4>Motor material : Aliuminum winding.
6> Wooden case package , fast delivery within 3 ~5days .
