Brand:Shenkang
wire diameter:3mm-6mm or 3mmto 8mm
wire space:50mm-300mm
max. mesh width:2500mm adjustable
Deliver:In 35 days

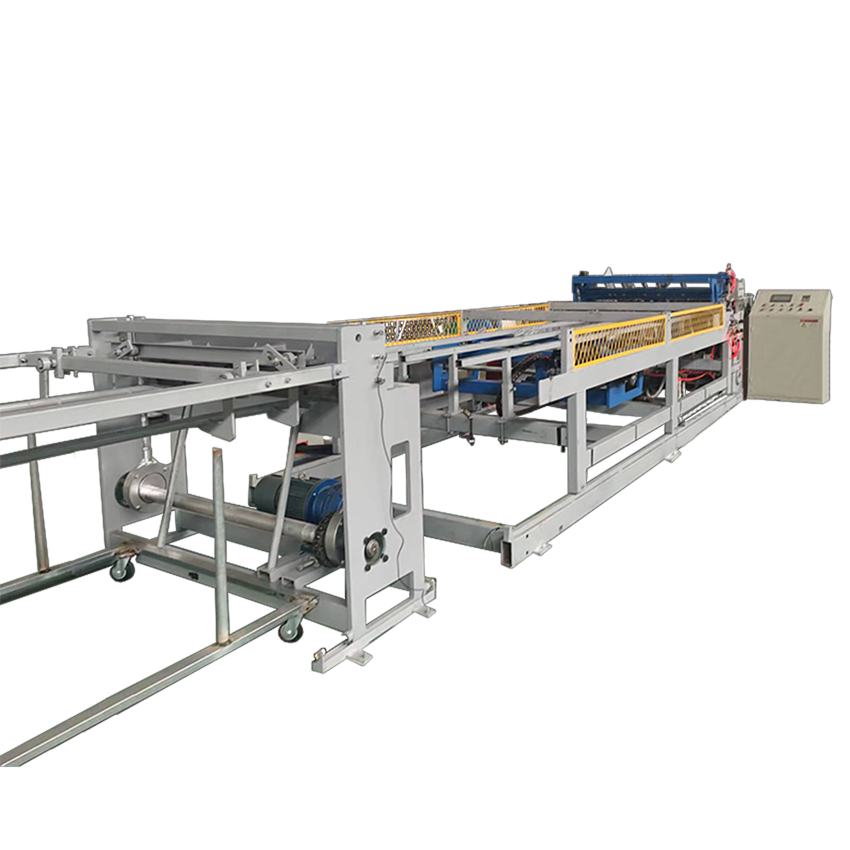

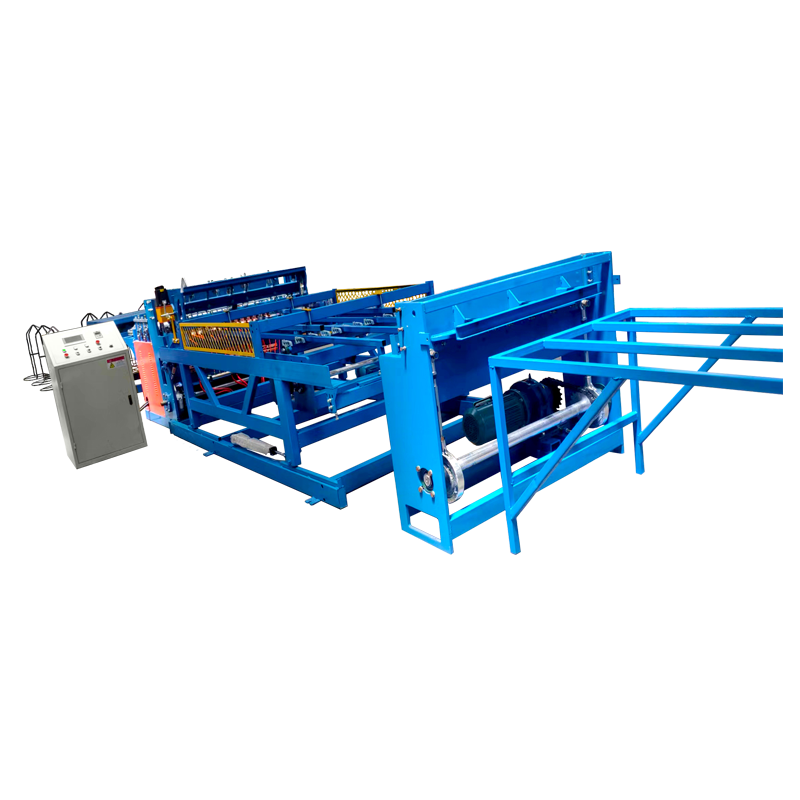

Concrete Construction Mesh Welding Machine
This machine adopts synchronous control technique, both the welding time and cent-control welding is controlled by PLC program system.
The input front-panel is in touch screen, it makes the machine more intelligent and reasonable.
The line wire feeding form is from coil wires directly or in pre-cut wire (you can choose it based on your requirements).
The cross wire feeding form is in pre-cut wires.
Both the line wire space and cross wire space can be adjusted freely within the required range.
The greatest advantage is that it can be adjusted the cross wire space at random on the same one piece of mesh panel or sheet.
1. Main Mesh Welding Machine Parameters
1.Item | mesh welding machine |
Wire diameter | 3mm-8mm |
Wire material | Galvanized wire or black wire (mild steel) |
Max. Welding Spots No. | 24 |
Max. Mesh width | 2400mm |
Line wire space | 50mm-200mm |
Cross wire space | 50mm-200mm |
Mesh length | ≤6250mm |
mesh output form | Mesh panel/sheet |
Max. Welding speed | 50-96 strokes/min. |
mesh pulling way | Controlled by servo motor |
Welding pressure way | Spring |
Cross wire feeding form | Pre-cut wire |
Line wire feeding form | Coil wire continuously or pre-cut wire |
