Brand:Aichener
Min quantity:1set
Quantity:5set
Deliver:In 5 days
High accuracy Processing of wood surface formation, wood can be inclined planing smooth. Professional bevel flat plane and flat-fell seam,
Widely used in integrated materials processing, furniture factory, construction industry, wood mold processing and other enterprises.
We provide more models of woodworking thicknesser planers, you can choose the thicknessing width with 250, 300, 400, 500, 600, 630mm
Except Oblique flat planer, we also provide automatic feeding flat planer and Straight mouth planer.
Feature
1. Pure copper motor, safe and reliable, portable and long service life.
2. Humanized adjustment hand wheel and optional backing adjustment structure, easier to work.
3. Finely ground cast iron work surface to guarantee precision,with silencer lip to reduce noise.
4. The inclined knife shaft can be installed with 3 blades for continuous cutting to improve the quality of wood planing, also have spiral cutting head for choose.
5. Cast iron is easy to tilt and operate.
6. With a dust outlet, the processed wood chips will be removed from the inclined dust outlet

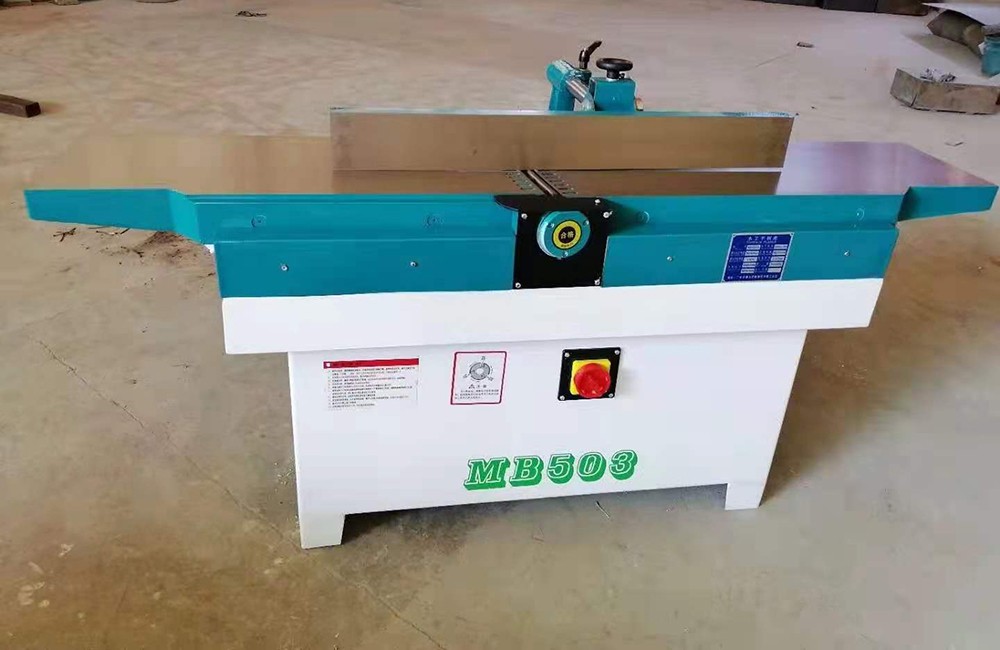

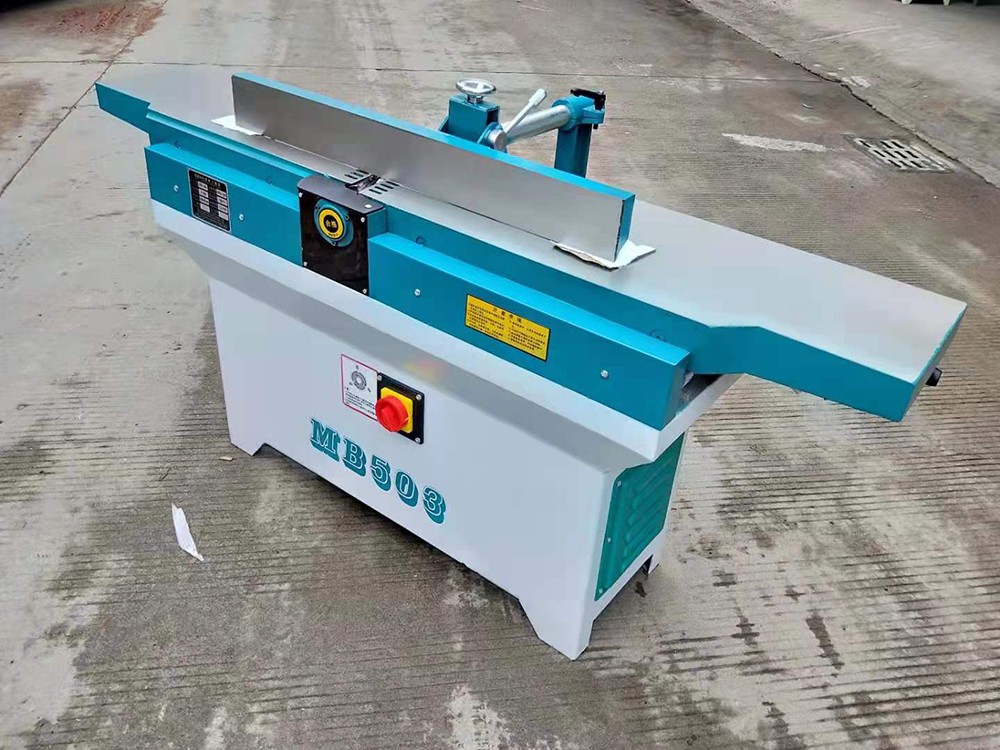

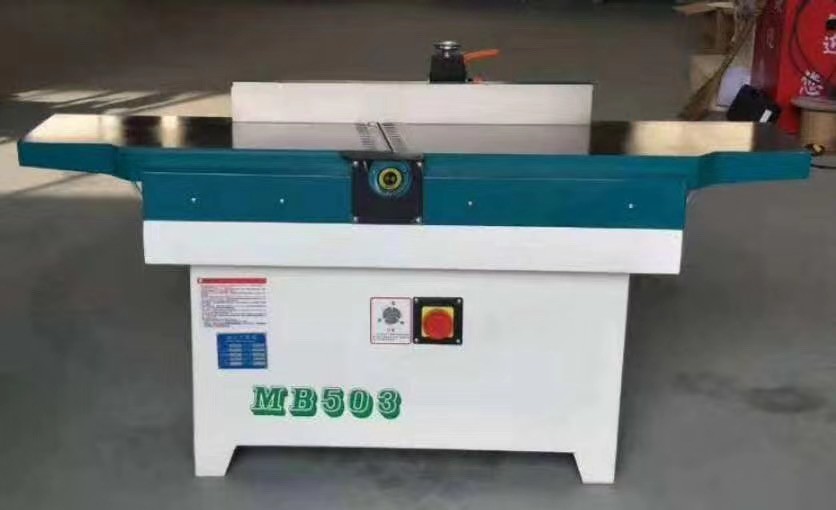

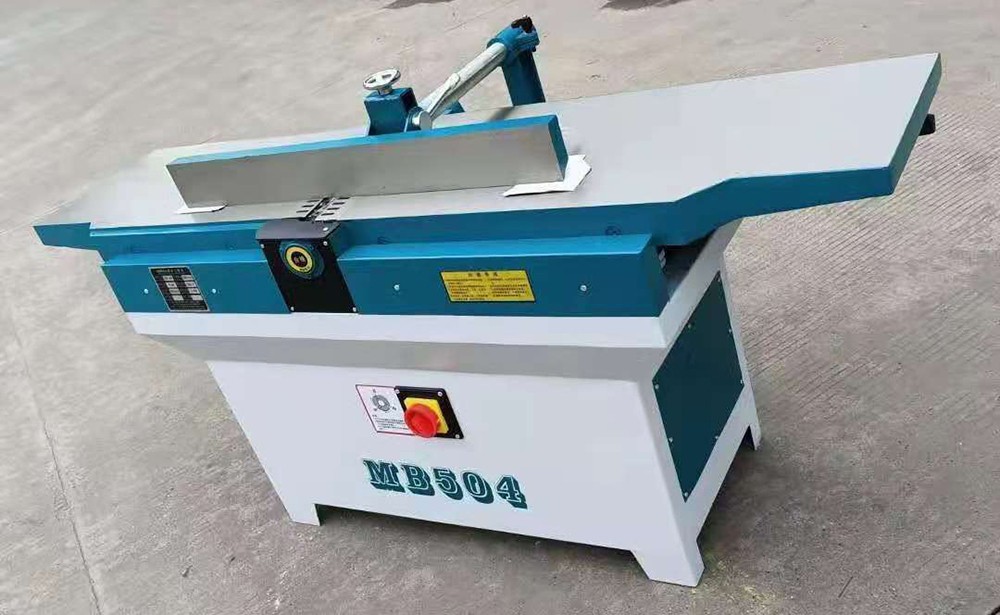

Model | Mb503 | MB504 | MB505 | MB506 |
Max. Planing width(mm) | 300 | 400 | 500 | 600 |
Max. Planing depth(mm) | 4 | 4 | 5 | 5 |
worktable length (mm) | 1800/2200 | 1800/2200 | 1800/2200 | 1800/2200 |
Spindle speed (r/min) | 5800/6800 | |||
Motor power (kW) | 2.2 | 3 | 4 | 5.5 |
Number of blades(PC) | 3 or 1 PC spiral cutting head | |||
Dimension(mm) | 1800*650*1000
| 1800*750*1000
| 1800*850*1000 | 1800*950*1000 |
Weight(kg) | 280 | 350 | 420 | 470 |
