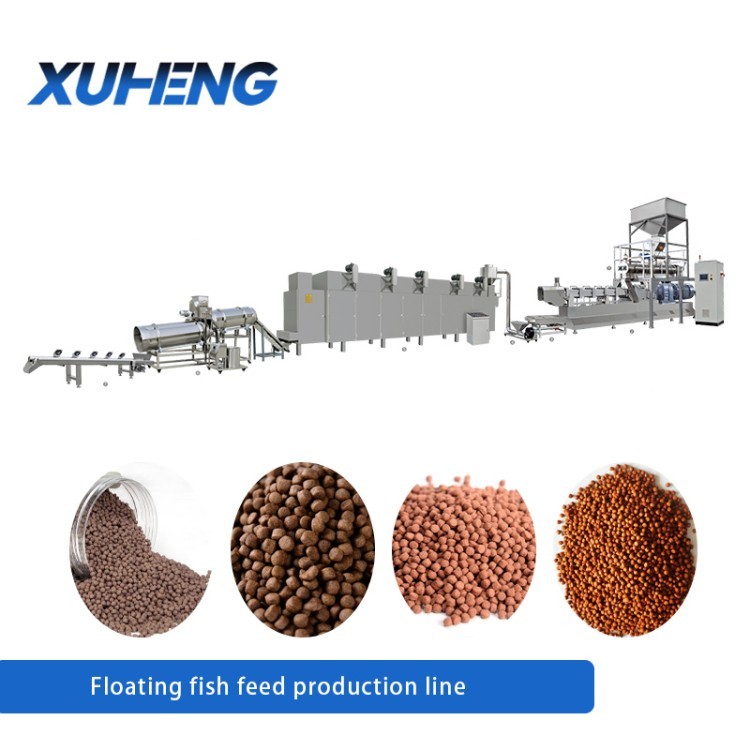

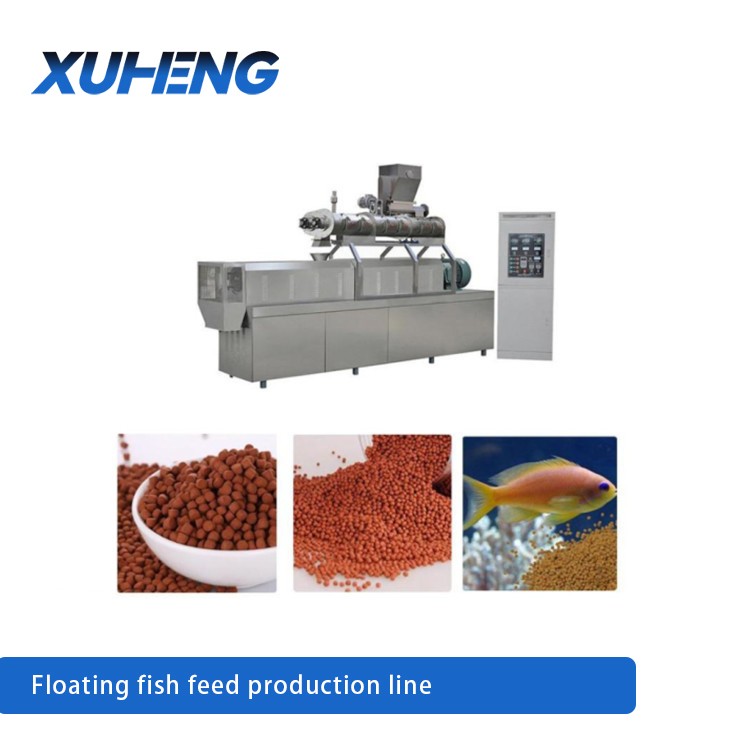

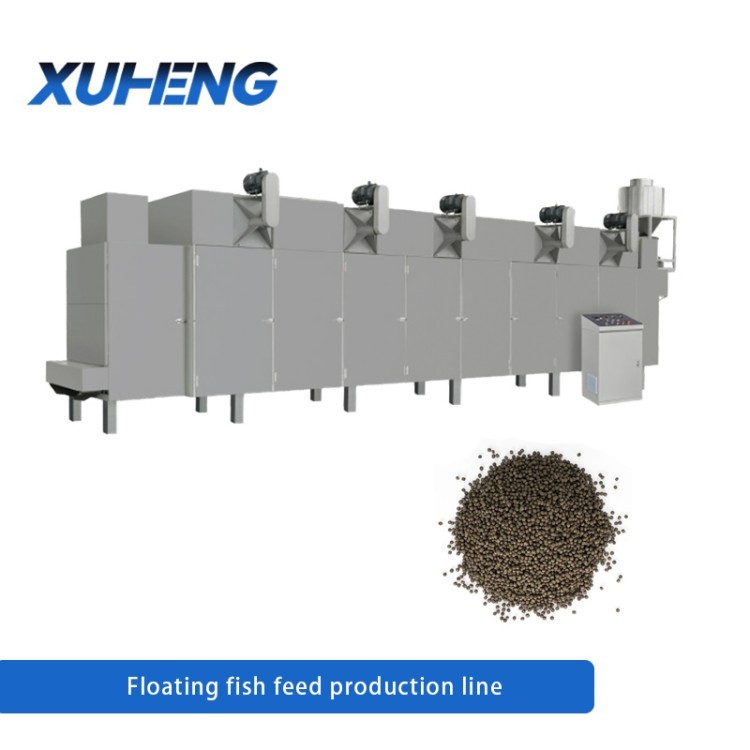

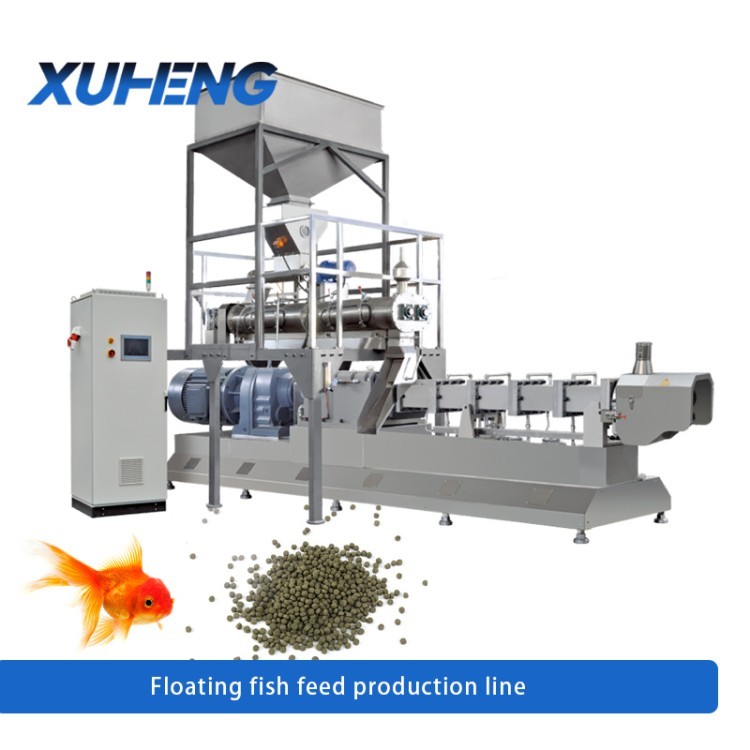

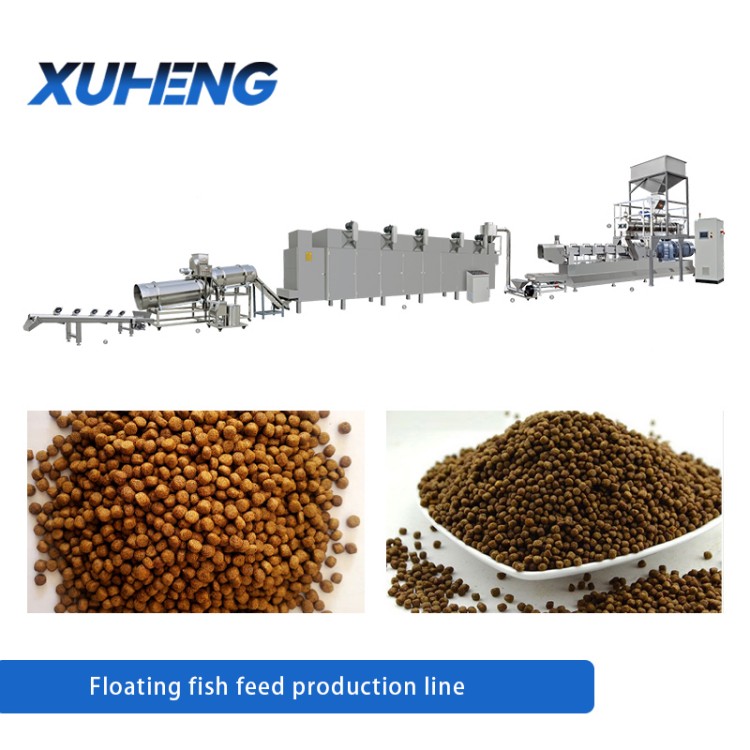

XH85 Large-scale Aquatic Feed Production Line
Large-scale production line can produce a premium quality special koi food, goldfish food, tropical fishes food, dog food, cat food, as well as dog and monkey food. They all are sold at home and abroad and win high praise and favorably commented from customers. This production line adopts steam method with high efficiency driving, stable and low noise.It is with International advance steam fittings and imported pressure reduction valve.
1.1.Fish feed making machine introduction
Fish feed making machine is deliberately made for special feed, which needs high in-shape rate and good-looking appearance. It is mainly used for sinking/floating/slow sinking aqua fish feed and pet food.Effectively protect the aquaculture water body from pollution to improve the quality of life.
1.2.More details of fish feed making machine:
A. High quality ingredients (fish meal, cereals, vegetable proteins ...) are selected and ground according to the specific nutritional and pellets size requirements of the aquatic animals and various fish request.
B. The particle quantity of fish feed raw material is a key factor for premium granulates production: therefore the grinding step is an important unit operation. The powder is then mixed with minor ingredients such as vitamins, mineral premixes... prior to the preconditioning to the fish extruder directly.
C. Next,the heart of the process, extrusion cooking is done in three stages in the fish feed machine : preconditioning, extrusion cooking and die texturing/ shaping. Twin-screw extrusion-cooking uses its perfect mixing ability and parameters control such as shear, temperature, residence time to reach the highest physical and nutritional standards. Through direct steam injection,venting device and efficient barrel cooling, adjustable screw speed, screw configuration, shear and temperature conditions are perfectly controlled; this leads to optimized functional and nutritional pellet properties such as the bulk density, calibration ,cooking degree, best ratio proteins- lipids, etc.D. Fish feed Pellets can then be oil coated and possible additives and are cooled down to complete the fish feed processing.
1.3.fish feed making machine in snacks food production line
1.4.Voltage of fish feed making machine
Three Phases: 380V/50Hz, Single phase: 220V/50Hz. We can make it according to customers Local voltage according to different countries.
1.5.Raw material of fish feed making machine
adopts corn flour, fish meal as raw materials
1.6.Capacity and Technical parameter of fish feed making machine
The following are technical parameter details of different fish feed making machine.
