Brand:TEYU
Min quantity:1件
Deliver:In 15 days
Product Description

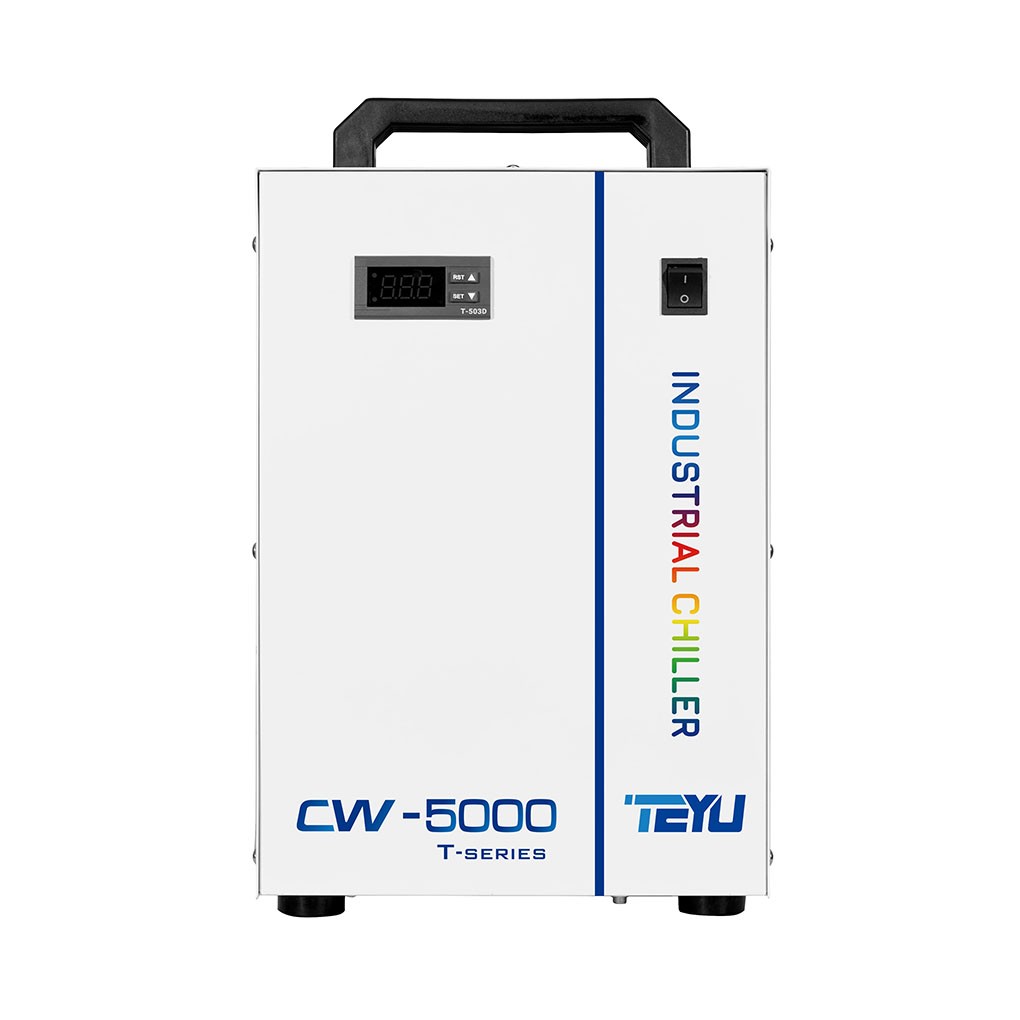

TEYU industrial chiller CW-5000 can provide perfect cooling for up to 120W CO2 DC laser tubes. This small chiller has a small footprint, saving a lot of space for CO2 laser engraver and cutter users. The temperature control accuracy of CW-5000 chiller is ±0.3°C with a cooling capacity of up to 1080W. Industrial chiller CW-5000 is capable of providing superior active cooling. It has multiple choices of water pumps and optional 220V or 110V powers. Designed with intelligent temperature control function, water chiller CW-5000 can keep your CO2 laser tube at a water temperature you preset, automatically adjusting the temperature for you to avoid the occurrence of condensate water.
Features
* Cooling Capacity: 1080W
* Active cooling
* Temperature stability: ±0.3°C
* Temperature control range: 5°C ~35°C
* Refrigerant: R-134a
* Compact, portable design and quiet operation
* High efficiency compressor
* Top mounted water fill port
* Integrated alarm functions
* Low maintenance and high reliability
* 50Hz/60Hz dual-frequency compatible available
* Optional dual water inlet & outlet
| Model | CW-5000TGTY | CW-5000DGTY | CW-5000TITY | CW-5000DITY |
| Voltage | AC 1P 220V | AC 1P 110V | AC 1P 220V | AC 1P 110V |
| Frequency | 50/60Hz | 60Hz | 50/60 Hz | 60Hz |
| Current | 0.4~3.1A | 0.4~5.3A | 0.8~3.5A | 0.8~5.7A |
| Max. power consumption | 0.44/0.46kW | 0.43kW | 0.51/0.53kW | 0.5kW |
| Compressor power | 0.37/0.39kW | 0.38kW | 0.37/0.39kW | 0.38kW |
| 0.5/0.53HP | 0.51HP | 0.5/0.53HP | 0.51HP | |
| Nominal cooling capacity | 3037/3686Btu/h | 3514Btu/h | 3037/3686Btu/h | 3514Btu/h |
| 0.89/1.08kW | 1.03kW | 0.89/1.08kW | 1.03kW | |
| 765/928Kcal/h | 885Kcal/h | 765/928Kcal/h | 885Kcal/h | |
| Pump power | 0.03kW | 0.1kW | ||
| Max. pump pressure | 10M | 25M | ||
| Max. pump flow | 10L/min | 16L/min | ||
| N.W. | 21Kg | 22Kg | 25Kg | 24Kg |
| G.W. | 24Kg | 25Kg | 28Kg | 27Kg |
| Refrigerant | R-134a | |||
| Precision | ±0.3ºC | |||
| Reducer | Capillary | |||
| Tank capacity | 6L | |||
| Inlet and outlet | OD 10mm barbed connector | 10mm fast connector | ||
| Dimension | 58 X 29 X 47cm (L X W X H) | |||
| Package dimension | 65 X 39 X 51cm (L X W X H) | |||
The reasons why you can rely on us are as follows:
- Experienced chiller manufacturer & supplier, focusing on laser cooling and industrial processing cooling for 21 years
- Factory area of 25,000m2 with 400+ employees;
- Annual sales quantity of 120,000 units, exported to 100+ countries
- Cooling capacity ranging from 0.6kW-41kW;
- Available for fiber laser, CO2 laser, UV laser, diode laser, ultrafast laser, etc; Other industrial applications of our chillers include CNC spindles, machine tools, UV printers, vacuum pumps, furnaces, and other equipment that requires precise cooling.
- 2-year warranty with professional after-sales service.
- Reliable quality at a competitive price;
- ISO, CE, ROHS and REACH certificated.
If you have any questions about the cooling solution for your laser or industrial processing equipment, please contact our professional team at sales@teyuchiller.com.
