Brand:BIAOHUI
Deliver:In 3 days

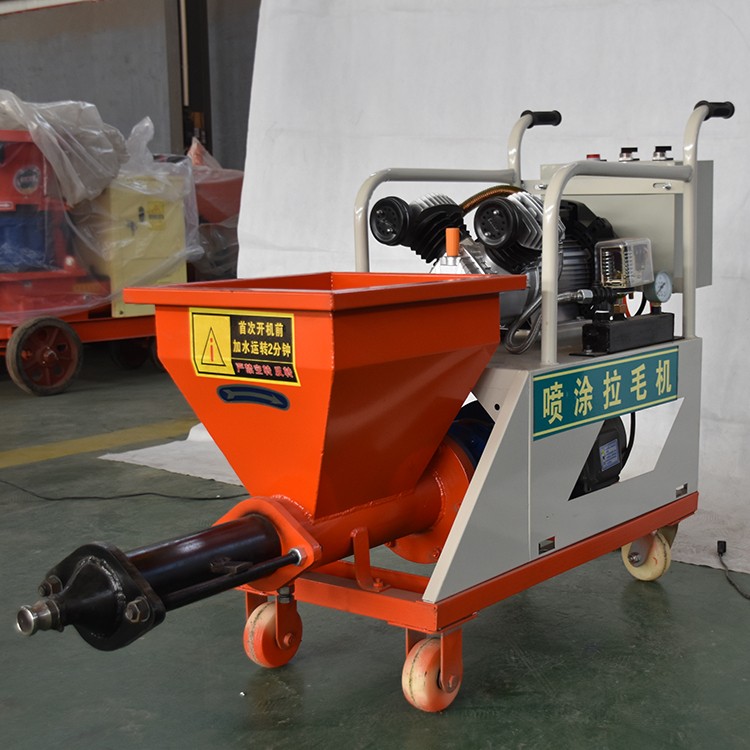

Screw type sprayer base plate wall sprayer
Summary: 1. Small screw type mortar spraying machine can be used for multiple purposes, including wall roughening and internal and external wall spraying. 2. Small size, light weight, only 130kg, easy to move
3. Equipped with a 4kw motor for vertical transmission of 10-15m
4. 100 square meters can be sprayed in one hour
Main technical parameters | |
Theoretical workload | 90㎡/h |
Air compressor power | 2.2kw |
Vertical conveying height | 10m |
Horizontal conveying distance | 20m |
Motor power | 4kw |
Motor revolutions | 1440r/min |
Operating Weight | 130kg |
Overall dimension | 170cm×51cm×80cm |
Screw type mortar spraying machine (top configuration)
Summary: The highlight of KYD-2 top configuration version is the configuration of screw insert imported from Italy, which greatly reduces the vulnerability rate and extends the service life compared with domestic screw insert.
Main technical parameters | |
Mortar ratio | 1:3 |
Theoretical conveying capacity | 2㎡/h |
Horizontal conveying distance | 20m |
Vertical conveying distance | 15m |
Maximum particle size | 5mm |
Main engine power | 4kw |
Air compressor power | 3kw |
Operating Weight | 200kg
|
| Overall dimension | 1220*720*1100 |
Screw type mortar spraying machine (upgrade)
Summary: KYD-2 series small screw mortar spraying machine has the advantages of small size, light weight and convenient movement. It is suitable for small engineering operations and is a good helper for wall roughening cement mortar spraying. It is used for internal and external wall mortar spraying in construction engineering. It is used for horizontal or vertical mortar conveying. Foundation, slope, anchor grouting and irrigation. Transportation and spraying of fireproof materials in blast furnace maintenance.
Main technical parameters | |
Mortar ratio | 1:3 |
Theoretical conveying capacity | 2㎡/h |
Horizontal conveying distance | 20m |
Vertical conveying distance | 15m |
Maximum particle size | 5mm |
Main engine power | 4kw |
Air compressor power | 3kw |
Operating Weight | 200kg
|
| Overall dimension | 1220*720*1100 |

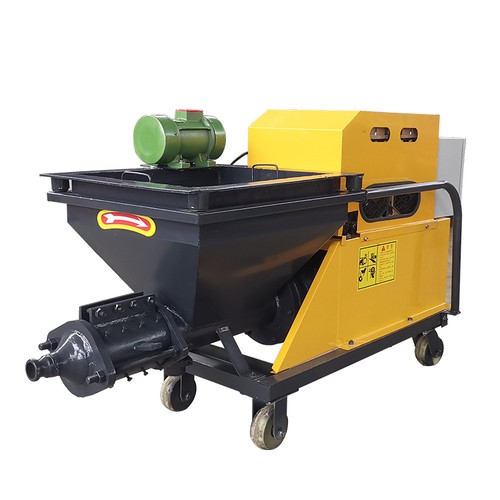

Screw type mortar spraying machine
Summary: KYD-500 screw mortar spraying machine, with large slurry output, no pulse, easy operation, can spray 1000 square meters a day, and the vertical conveying distance can reach 20 meters, which is suitable for the spraying and conveying of internal and external wall mortar.
Main technical parameters | |
Theoretical workload | 150㎡/h |
Maximum particle size | 5mm |
Mortar ratio | 1:3 |
Vertical conveying distance | 20m |
Horizontal conveying distance | 50m |
Main engine power | 7.5kw |
Air compressor power | 3kw |
Operating Weight | 270kg |
Overall dimension | 1900*720*1100 |
