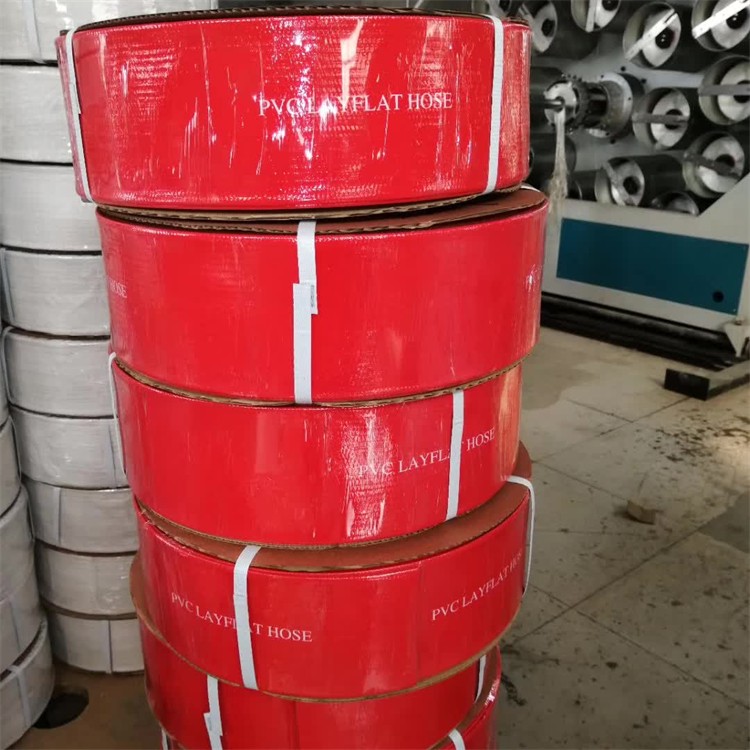

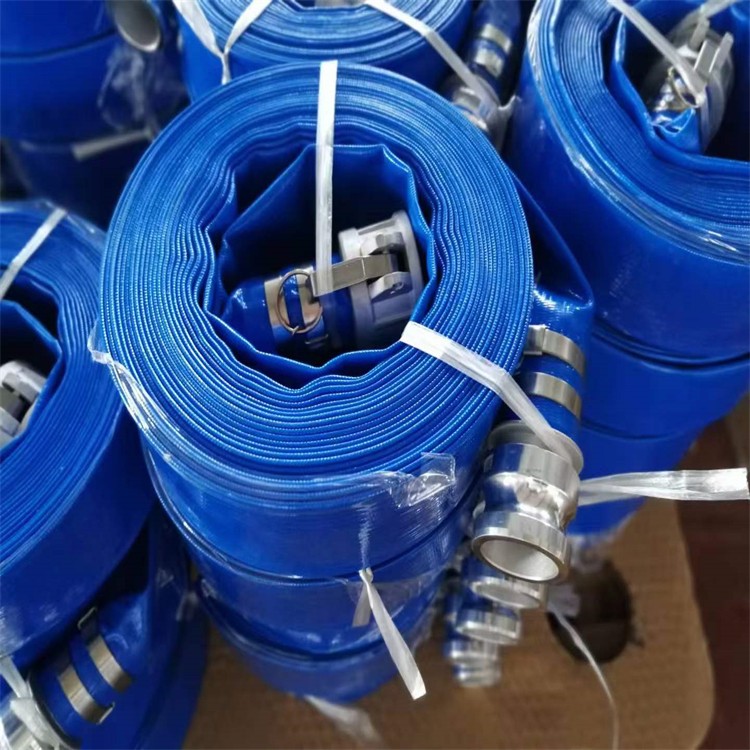

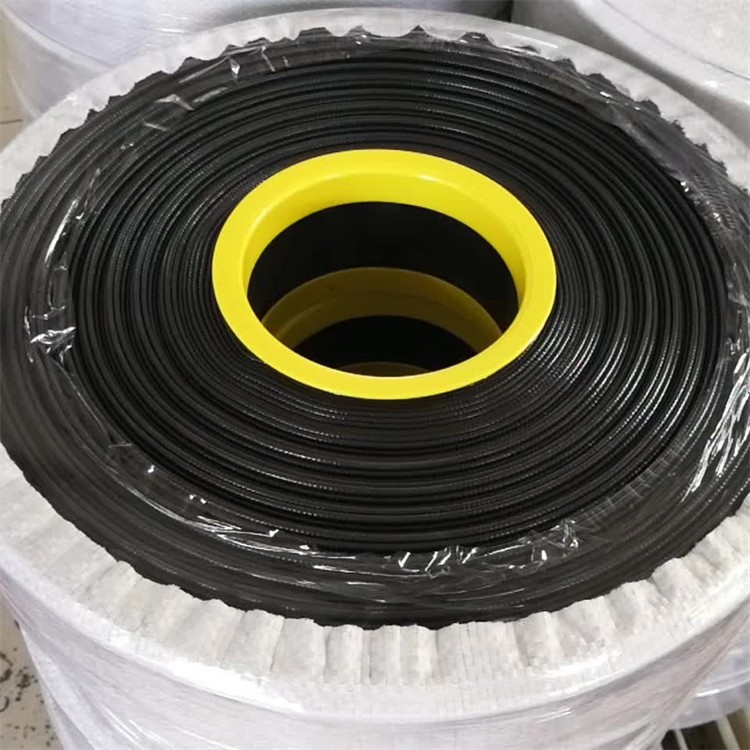

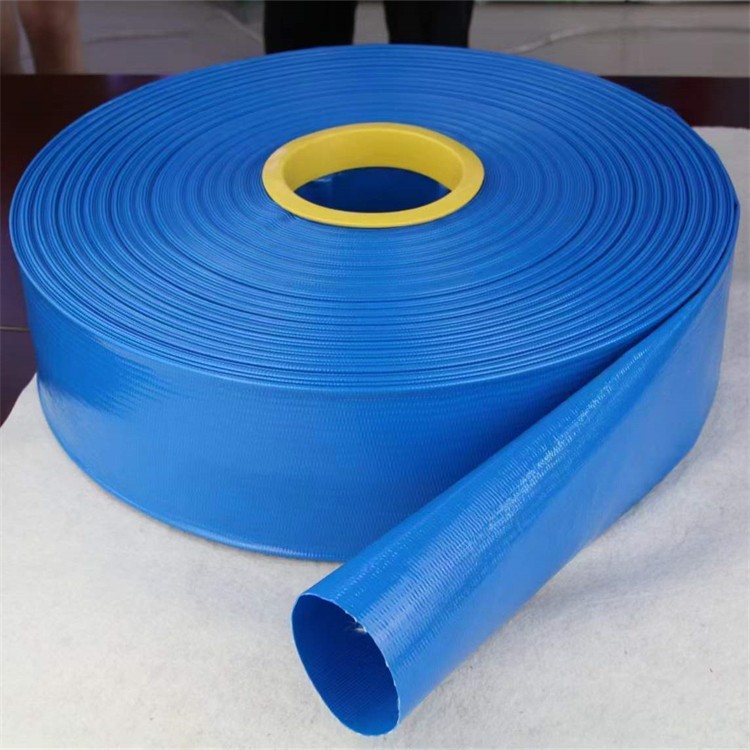

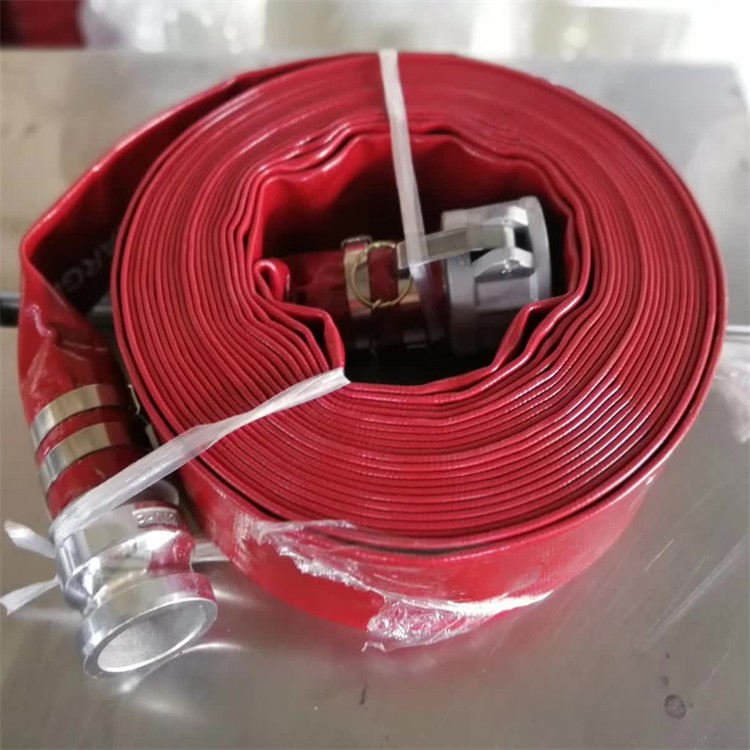

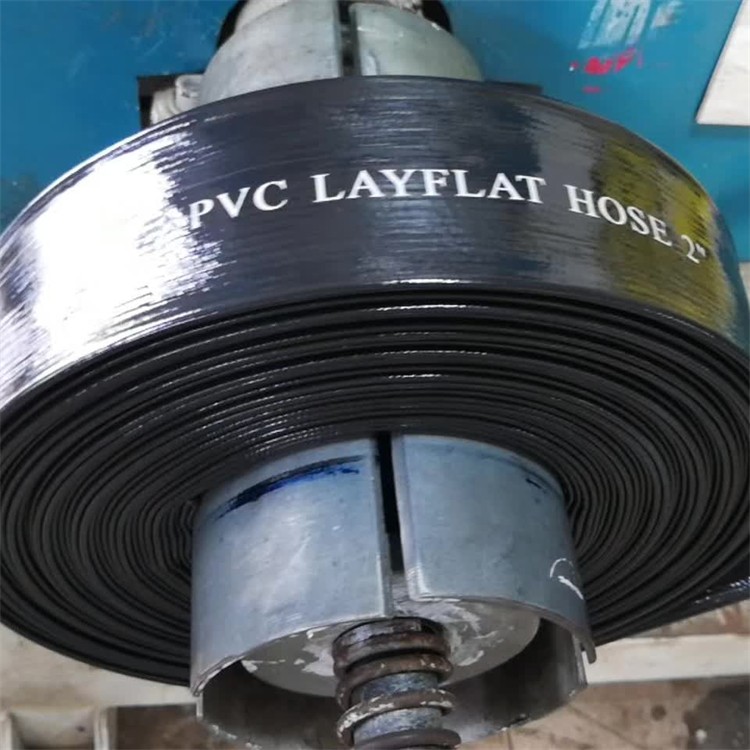

PVC HIGH PRESSURE LAYFLAT HOSE MEDIUM DUTY （6BAR）
Features:
• Used for irrigation in agriculture and forestry, liquid transfer in industrial fields.
• Higher pressure.
• Good abrasion resistance
• The environmental grade hose can pass the REACH testing standard.
• UV protection, sun protection.
Size inch | Size mm | Wall Thickness mm | g/m | Max W.P (bar) | Max B.P (bar) |
AT23°C | |||||
3/4" | 20 | 1.35 | 112 | 7 | 21 |
1" | 26 | 1.5 | 165 | 7 | 21 |
1-1/4" | 33 | 1.3 | 190 | 7 | 21 |
1-1/2" | 41 | 1.45 | 230 | 7 | 21 |
2" | 53 | 1.3 | 300 | 6 | 18 |
2.5" | 66 | 1.7 | 430 | 7 | 21 |
3" | 78 | 1.45 | 500 | 6 | 18 |
4" | 104 | 2.3 | 865 | 6 | 18 |
5" | 128 | 2.3 | 1080 | 6 | 18 |
6" | 155 | 2.4 | 1600 | 6 | 18 |
8" | 207 | 2.65 | 2020 | 4 | 12 |
10" | 257 | 2600 | 3 | 12 | |
12" | 308 | 3100 | 3 | 12 | |
14" | 350 | 5 | 3 | 9 | |
16" | 400 | 6.5 | 3 | 9 | |
