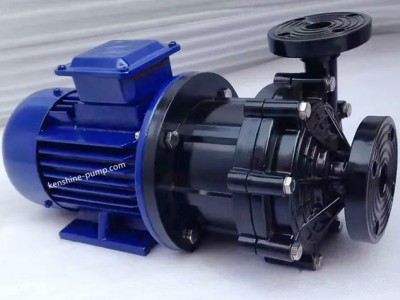

MPH Plastic magnetic pump driven by 0.5HP-10HP motor
Acid and alkali resistant plastic magnetic pump is suitable for all acid and alkali etc. clean chemical liquid pumping, circulation, etc. The pump is widely used in electroplating, electronics, chemical, leather, dyeing and finishing wastewater, waste gas and other industries.
Magnetic driving coupling, without shaft seal, no leakage
Pump case, impeller assembly, isolating sleeve: FRPP reinforced polypropylene plastic.
Pump shaft: alumina ceramic
Seal ring: FKM/EPDM
| Model | inlet(mm) | outlet(mm) | Max.flow(LPM) | Max.head(m) | Standard flow(LPM) | standard head(m) | Power(KW) | Voltage(V) |
| MPH-400 | 40 | 40 | 280 | 12.5 | 150 | 8.5 | 0.37 | 380 |
| MPH-401 | 40 | 40 | 330 | 18 | 200 | 12 | 0.75 | 380 |
| MPH-422 | 50 | 40 | 400 | 23 | 200 | 18.5 | 1.5 | 380 |
| MPH-423 | 50 | 40 | 500 | 24 | 300 | 20.5 | 2.2 | 380 |
| MPH-550 | 65 | 50 | 600 | 25 | 400 | 22 | 3 | 380 |
| MPH-650 | 65 | 50 | 870 | 30 | 500 | 26 | 3.7 | 380 |
| MPH-850 | 80 | 65 | 1100 | 25 | 800 | 18 | 5.5 | 380 |
| MPH-860 | 80 | 65 | 1400 | 28 | 1100 | 21 | 7.5 | 380 |
