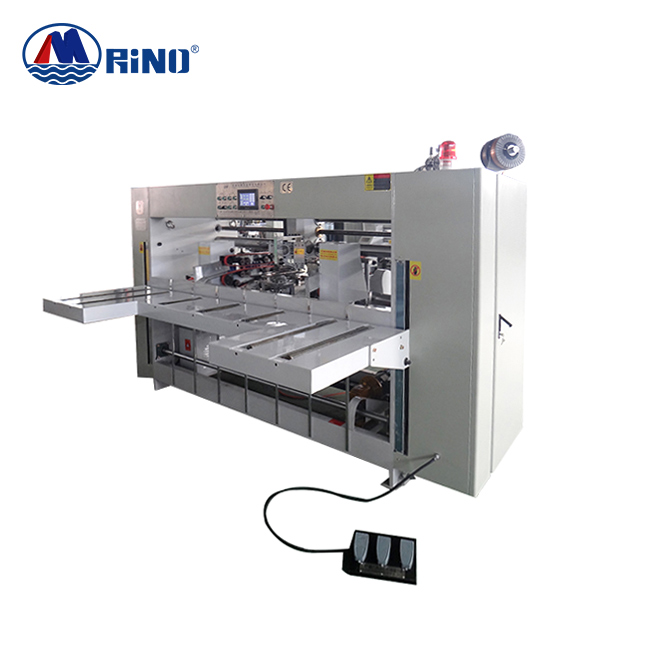

High-Speed Double Pieces Stitching Machine
Introduction
★Imported from Siemens series four servo drive,high precision, reduce the mechanical transmission part, effectively reduce the mechanical fault rate.
★Delta touch screen operation, the parameters (screw pitch, the number of nails, nail, tailgate) transform is convenient.
★The whole control system adopts the control system of Siemens PLC, more accurately convey instructions.
★Back electric baffle, by Taiwan Liming stepper motor drive, accurate size, transform size more convenient.
★The bottom die, tungsten steel blade adopts Japanese made (wear) has greatly increased the service life.
★The whole group of nail head. All computer gongs are made of special steel, precision machining, imported from Taiwan, Italy.
★You can nail a single nail, double nail, once completed, can be suitable for different customers for different requirements for the nail.
★This transformation and adjustment of carton carton size from the nail it takes only a minute to be completed, greatly saves time and is convenient to operate.
★The front feeding part automatically counting, the feeding table is provided with a photoelectric sensing device, automatic rising feeder.
★This post with automatic counting function, finished cartons can be set according to the number (1-99) sub stack sent to lose,send to machine end, easy to pack up and bound.
★Nail automatic alarm after line runs out. (to avoid the non linear when the leak to fight, less nail bad product)
★From semi-finished stapled to the finished and packaged Banding placed in the whole process of only two people operation, the operation is simple and convenient for less pay.
★A dual purpose, i can stitch single piece and double piece, and irregular carton。
★Size adopt full computerized control, change size only take 2-3 minutes.
★The machine adopts computer screen display failure.
★The bottom without cover carton also can nail (special)
★suitable for three layer, five layer corrugated cardboard, seven layers (seven layers need special customized)
Touch screen operation , parameters (Screw pitch , the number of nails , nail species , tailgate) transformation convenient .
Double piece stitching Machine can be all- electric adjusted ,can be changed size quickly between two- three minutes .Patent type feeding width automatic adjustment device and printing locking device with screw.
