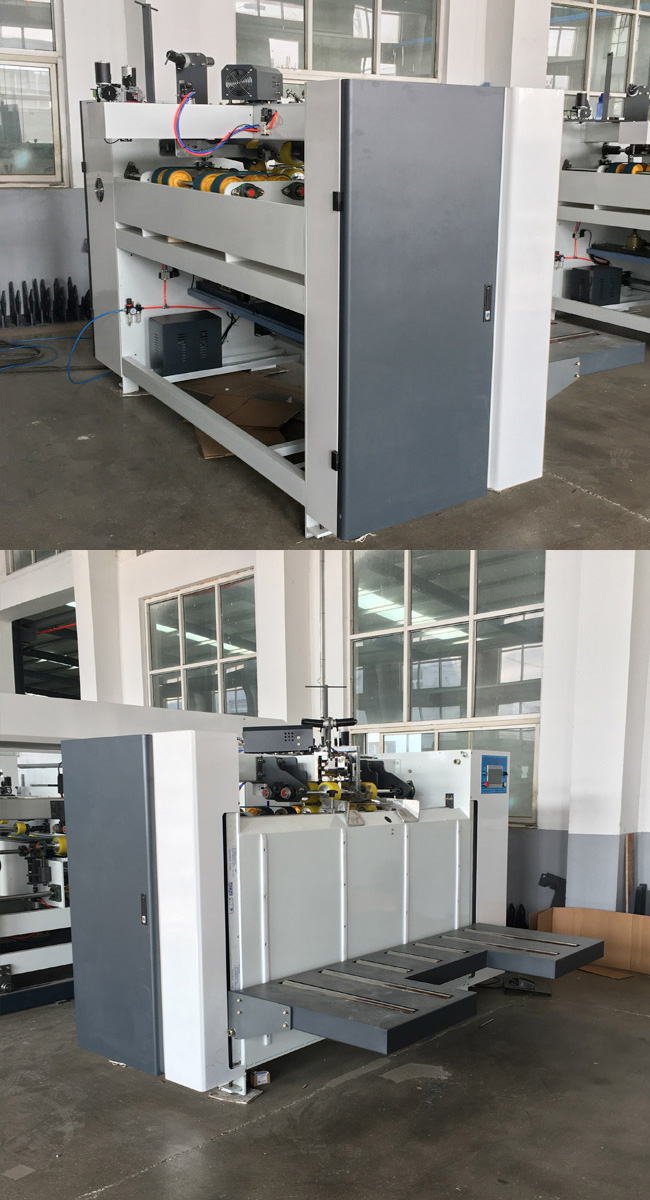

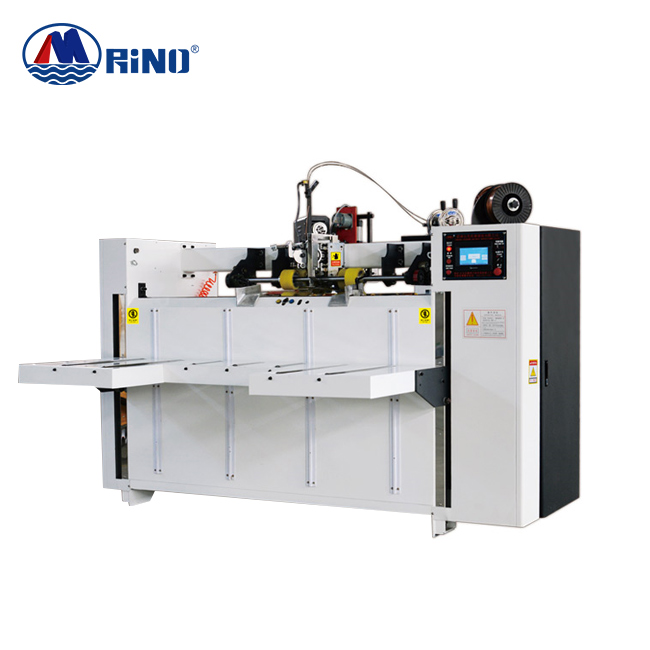

Semi automatic carton box stitching machine
Introduction
★ Imported from Japan MITSUBISHI double servo motor, high precision reduce the mechanical transmission part, effectively reduce the mechanical fault rate.
★Touch screen operation, the parameters (screw pitch, the number of nails, nail, tailgate) transform is convenient.
★The whole control system adopts the control system of OMRON PLC, more accurately convey instructions.
★Back electric baffle, by Taiwan Liming stepper motor drive, accurate size, transform size more convenient.
★The bottom die, tungsten steel blade adopts Japanese made (wear) has greatly increased the service life.
★The whole group of nail head. All computer gongs are made of special steel, precision machining, imported from Taiwan, Italy.
★You can nail a single nail, double nail, once completed, can be suitable for different customers for different requirements for the nail.
★This transformation and adjustment of carton carton size from the nail it takes only a minute to be completed, greatly saves time and is convenient to operate.
★ The front feeding part automatically counting, the feeding table is provided with a photoelectric sensing device, automatic rising feeder.
★This post with automatic counting function, finished cartons can be set according to the number (1-99) sub stack sent to machine end, easy to pack up and bound.
★Automatic alarm after stitching wire runs out. (to avoid the non wire when the leak to fight, less nail bad product)
★From semi-finished stapled to the finished and packaged Banding placed in the whole process of only two people operation, the operation is simple and convenient ,lower cost.
